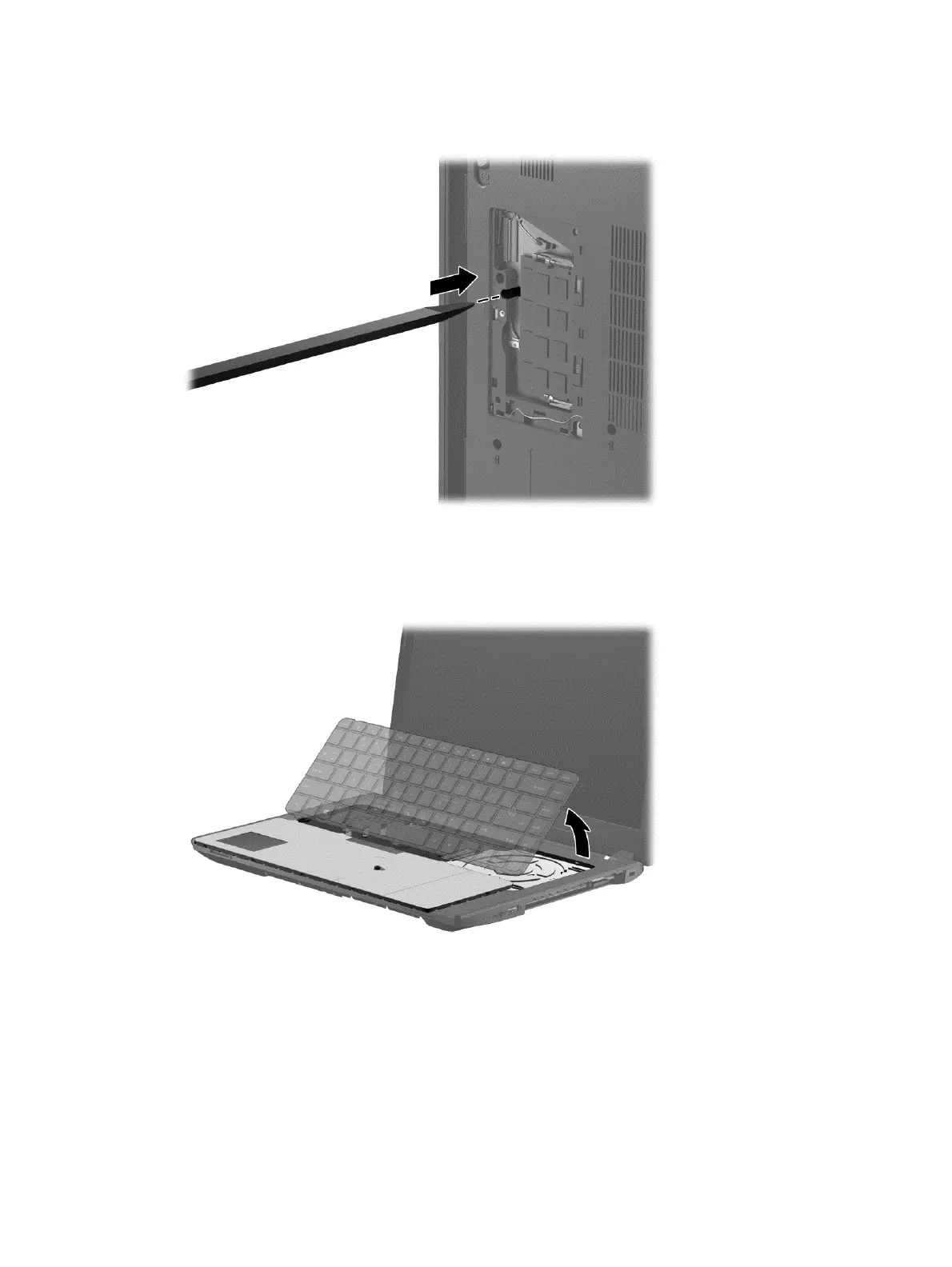

4. Insert a thin tool into the keyboard release hole in the memory module compartment, and then
press on the back of the keyboard until the keyboard disengages from the computer.
5. Turn the computer right-side up with the front toward you.
6. Lift the rear edge of the keyboard, and then swing the keyboard up and forward until it rests
upside down on the palm rest.
7. Release the zero insertion force (ZIF) connector (1) to which the keyboard cable is attached, and
then disconnect the keyboard cable (2) from the system board.
48 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts
