f. Keyboard (see Keyboard on page 47)
g. Top cover (see
Top cover on page 50)
h. Fan (see
Fan on page 57)
i. System board (see
System board on page 61)
j. Heat sink (see
Heat sink on page 65)

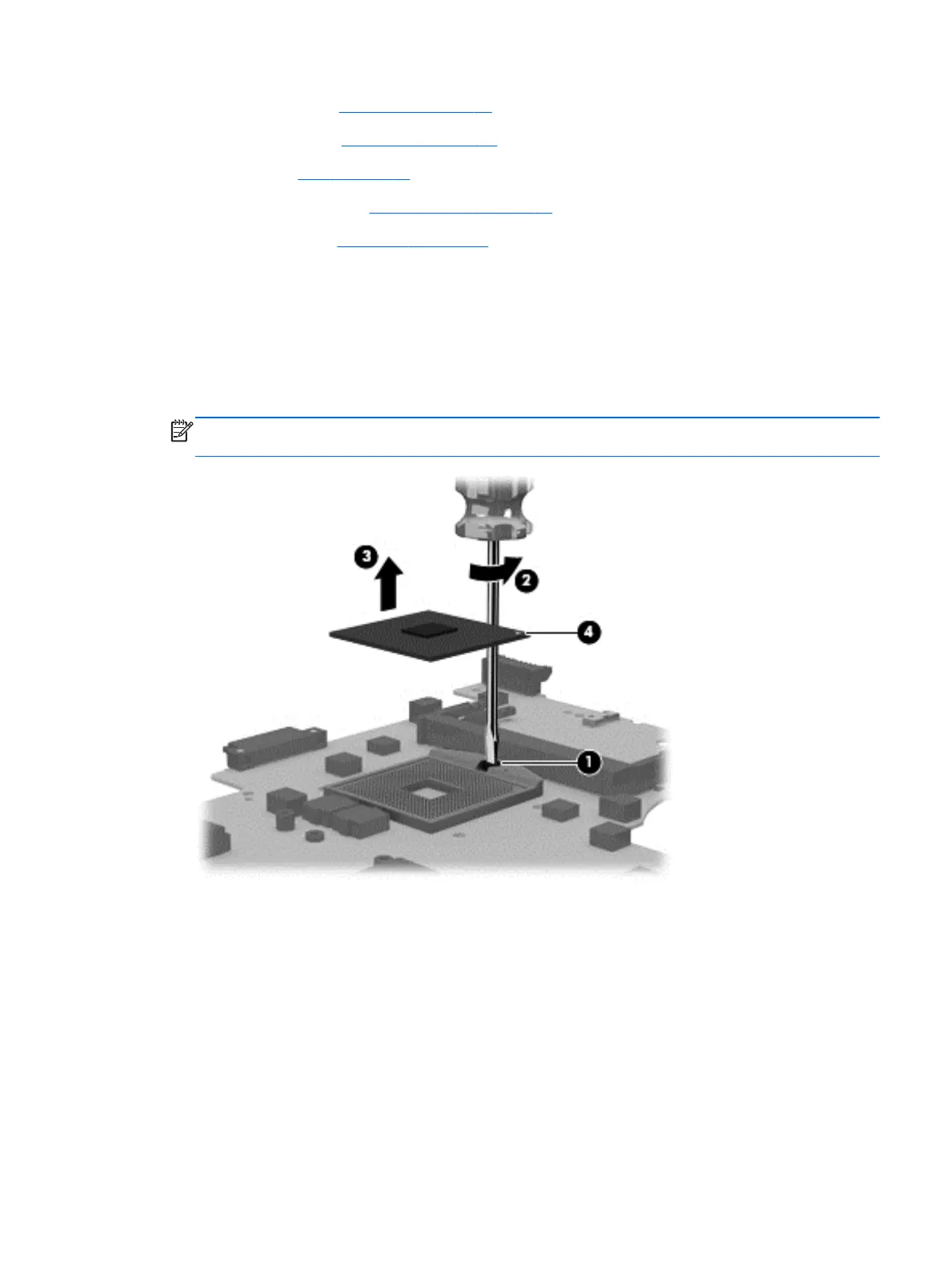

Remove the processor:
1. Turn the system board upside down, with the front toward you.
2. Use a flat-bladed screw driver (1) to turn the processor locking screw one-half turn
counterclockwise (2), until you hear a click.
3. Lift the processor (3) straight up, and remove it.
NOTE: The gold triangle (4) on the processor must be aligned with the triangle icon embossed
on the processor socket when you install the processor.
Reverse this procedure to install the processor.
Component replacement procedures 69
