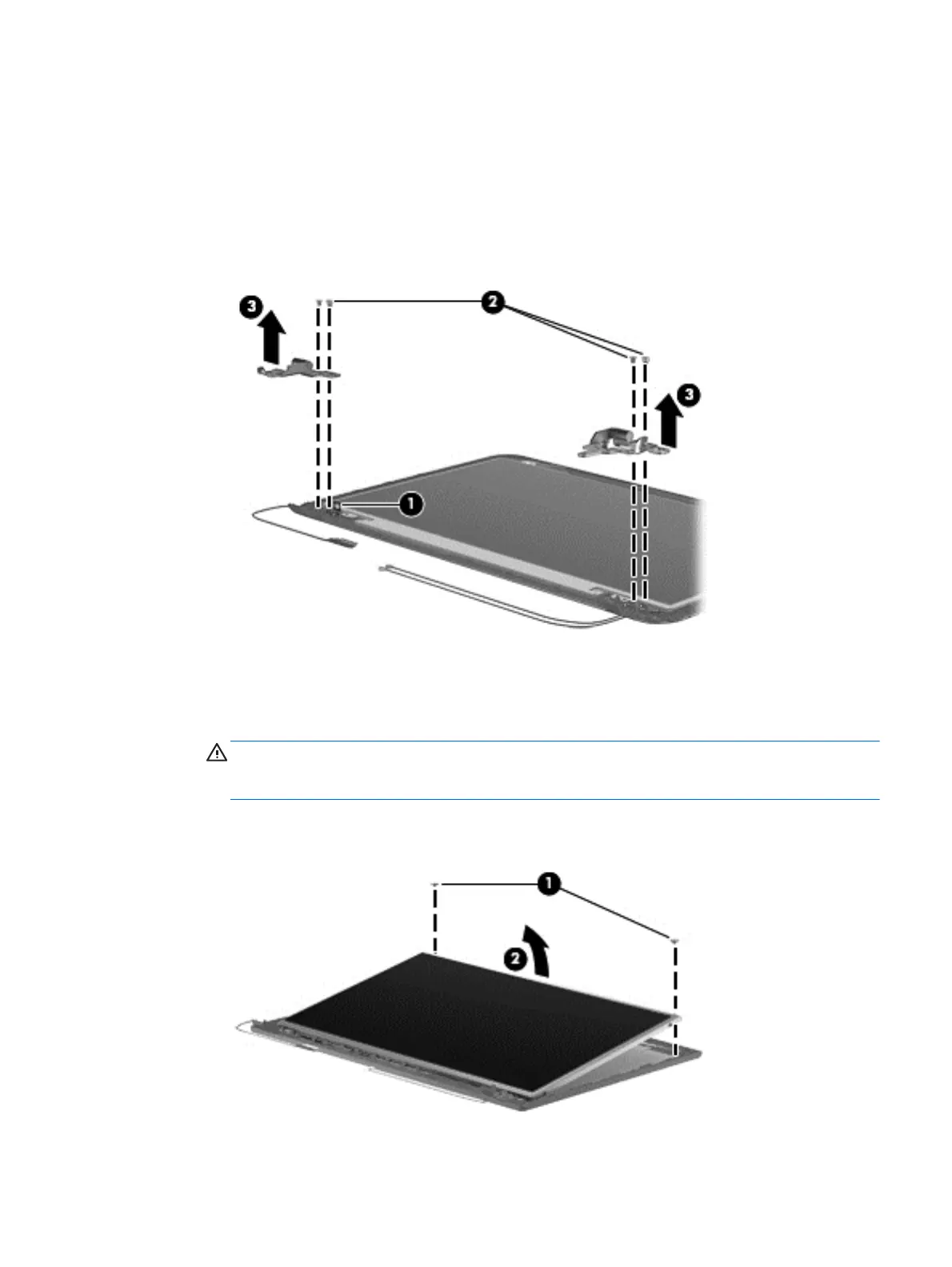

7. If it is necessary to replace the display hinges:
a. Release the grounding tape (1) that secures the left display hinge to the display enclosure.
b. Remove the four Phillips PM2.5×3.0 screws (2) that secure the display hinges to the display
enclosure.
c. Remove the display hinges (3).
The display hinges are available using spare part number 728282-001.
8. If it is necessary to replace the display panel:
a. Remove the eight Phillips PM2.0×2.5 screws (1) that secure the display panel to the display
enclosure.
CAUTION: Before turning the display panel upside down, make sure the work surface is
clear of tools, screws, and any other foreign objects. Failure to follow this caution can result
in damage to the display panel.
b. Lift the top edge of the display panel (2), and then swing it up and forward until it rests
upside down in front of the display enclosure.
Component replacement procedures 75
