HP 245 G4 - Memory Module

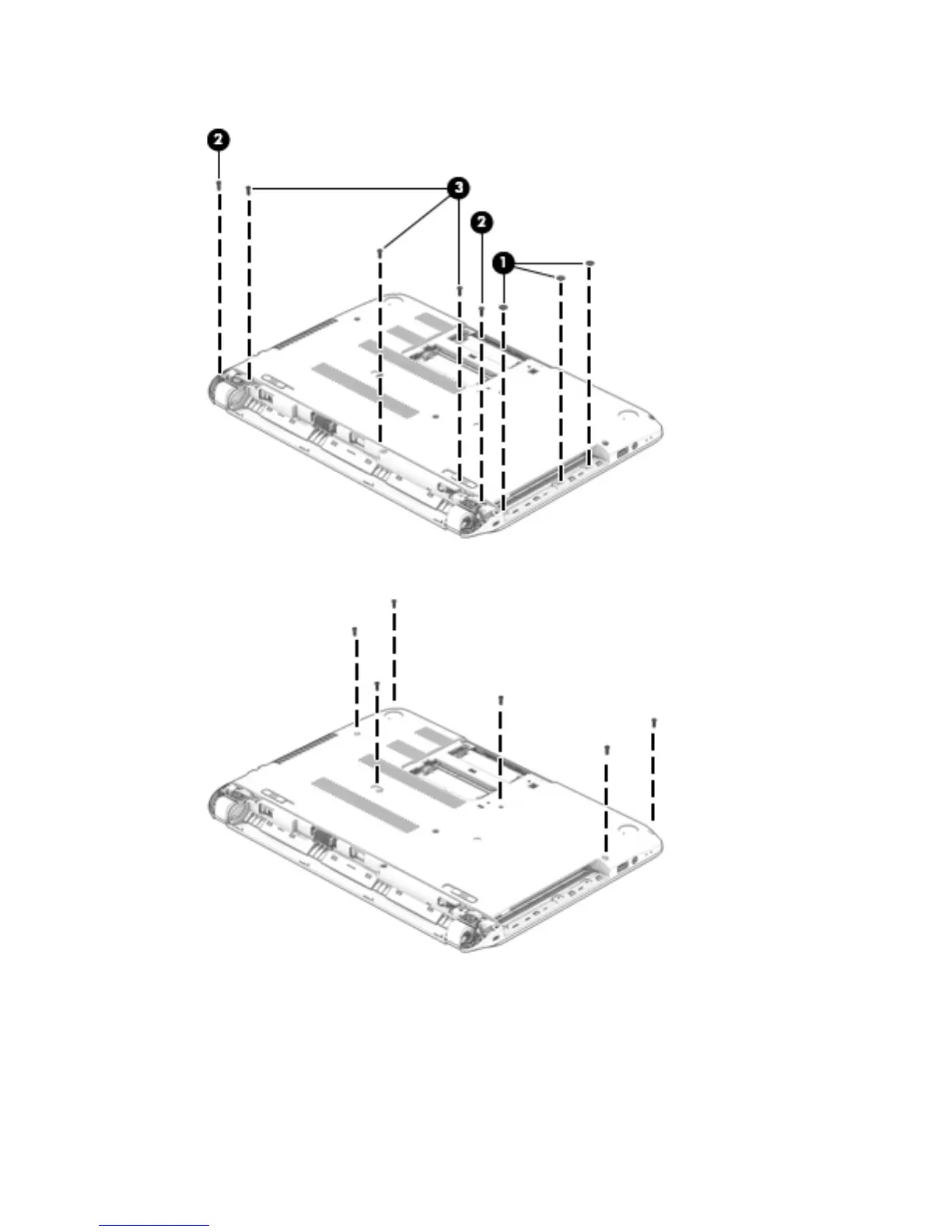

4. Remove the 4 Phillips PM2.5×6.0 screws (3) from the rear corners of the computer.
5. Remove the 11 Phillips PM2.5×6.0 screws that secure the bottom cover to the computer.
6. Start prying near the optical drive bay (1) and work around to the back (2) and side (3) to separate the
bottom cover from computer (1).
Component replacement procedures 35
