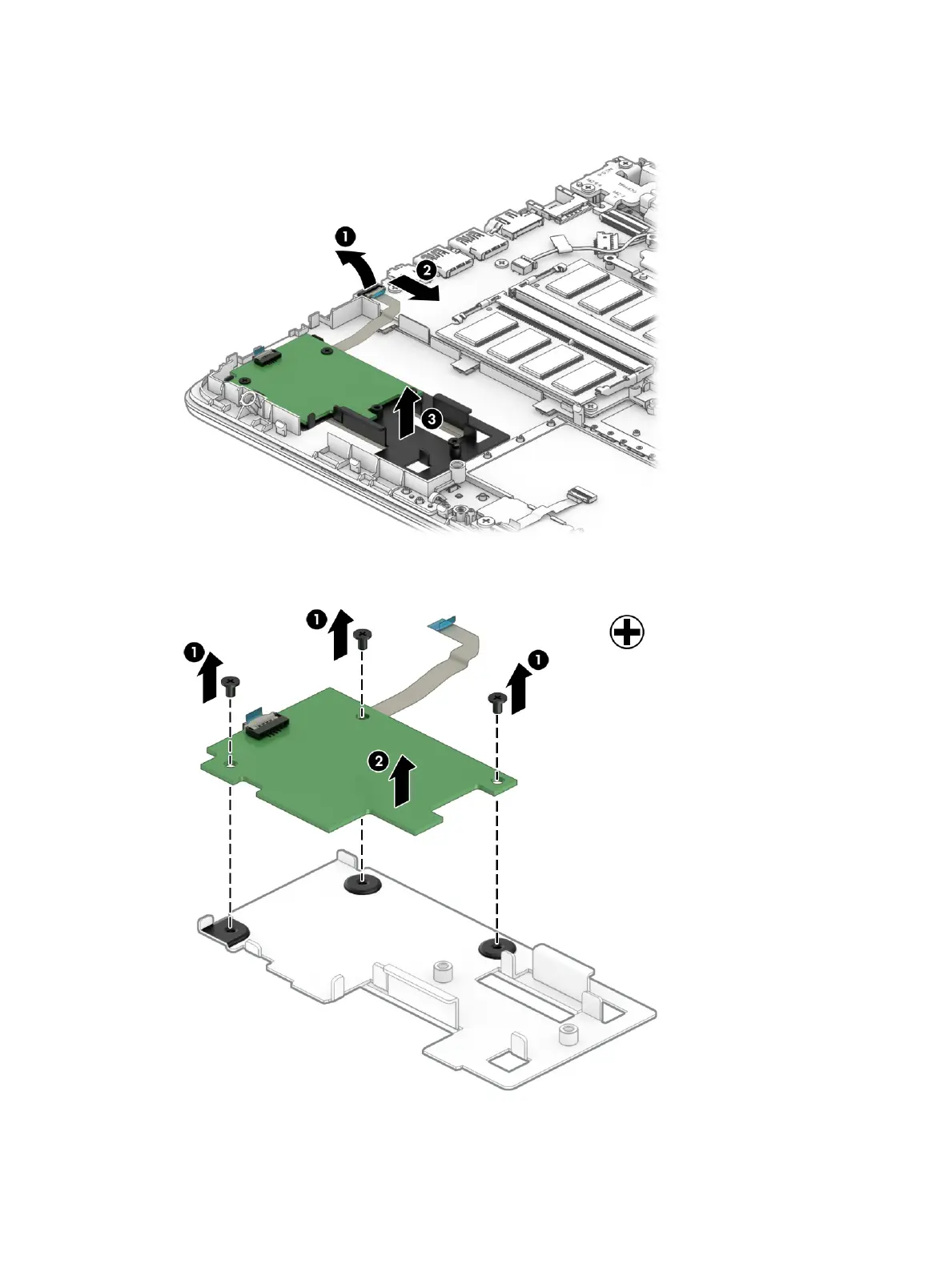

2. Lift the assembly from the computer (3).
3. To remove the SSD board from the bracket, remove the three Phillips M2.0 × 3.0 screws (1) that secure
the board to the bracket, and then remove the board from the bracket (2).
Reverse this procedure to reassemble and install the SSD board.
32 Chapter 5 Removal and replacement procedures for authorized service provider parts
