Speakers
Description Spare part number
Speakers (includes left and right speakers and cable) 813965-001
Before removing the speakers, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet and
then unplugging the AC adapter from the computer.
4. Remove the battery (see
Battery on page 28).
5. Remove the optical drive (see
Optical drive on page 29), if installed.
6. Remove the bottom cover (see
Bottom cover on page 35).
To remove the speakers:

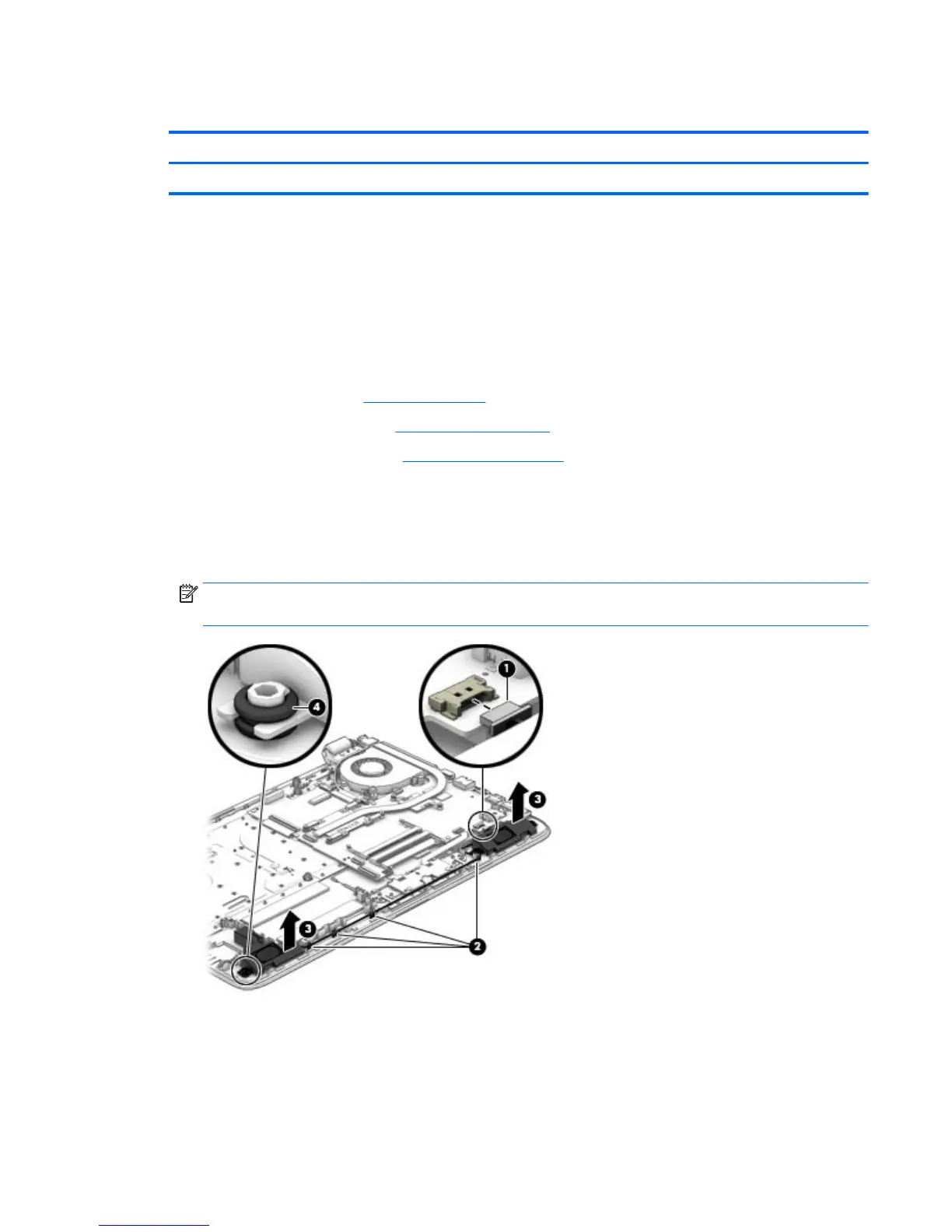

1. Disconnect the speaker cable from the system board (1).
2. Remove the cable from the routing path (2), and then lift up and remove the speakers from the
computer (3).
NOTE: The speakers are not secured with screws. Note the rubber gaskets (4) that help secure the
speakers to the computer. When installing the speakers, make sure the gaskets are installed correctly.
Reverse this procedure to install the speakers.
Component replacement procedures 45
