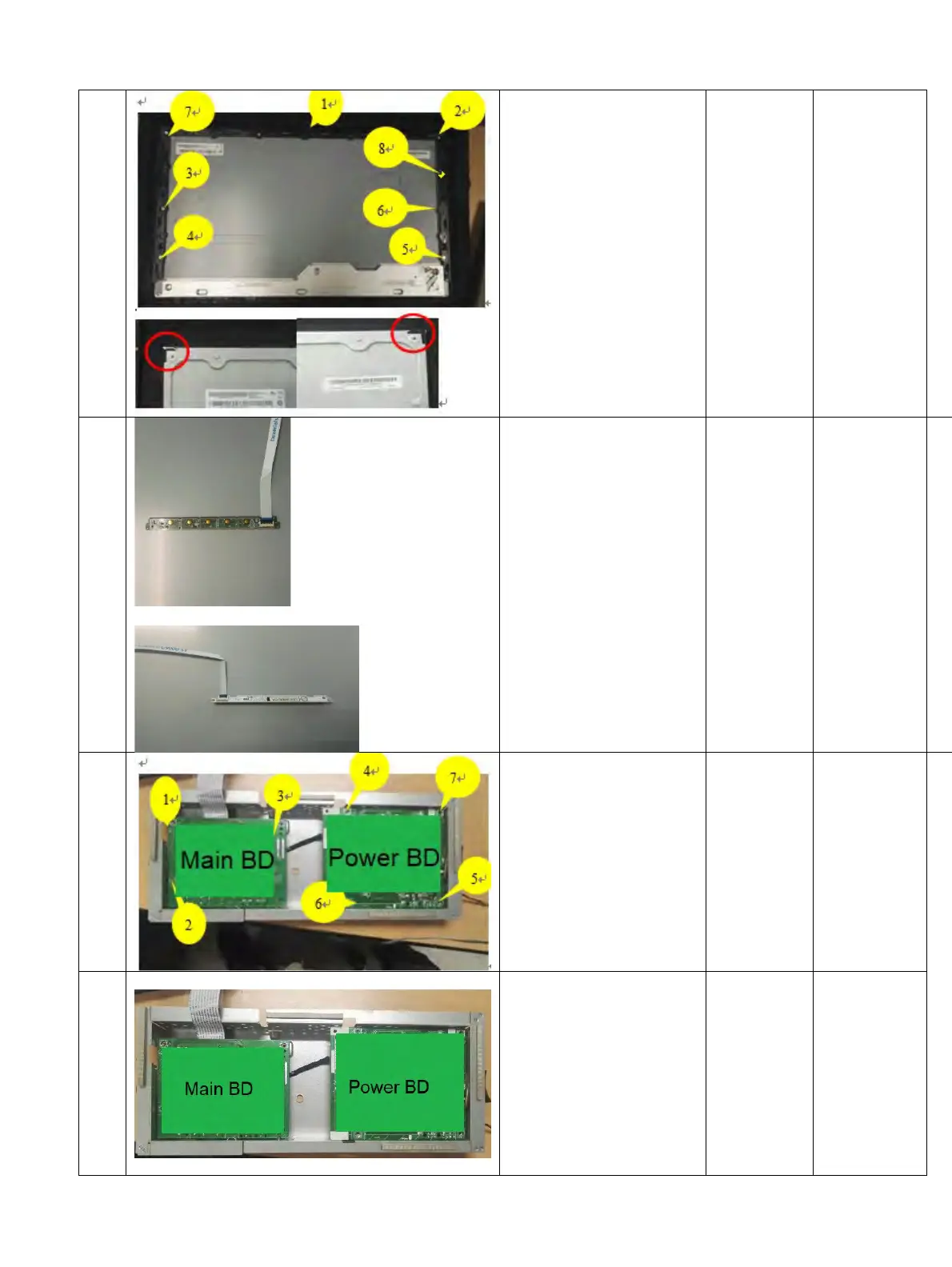

13
5
1. Unlock 8 pcs
screws
2. Remove middle
frame from panel.
3. Remove 2 mylar
from the panel
Screw-
driver
6.5-7.5Kgf
6
1. Disassemble the
CTR BD and
remove CTR
cable.
2. Disassemble the
LENS BD and
remove LENS
cable.
7
1. Unlock the 7 pcs
screws
Screw-
driver
7±1Kgf
8
1. Disassemble
Power BD and IF
BD.
2. Disassemble the
SPS wire
3. Disassemble FFC
cable
