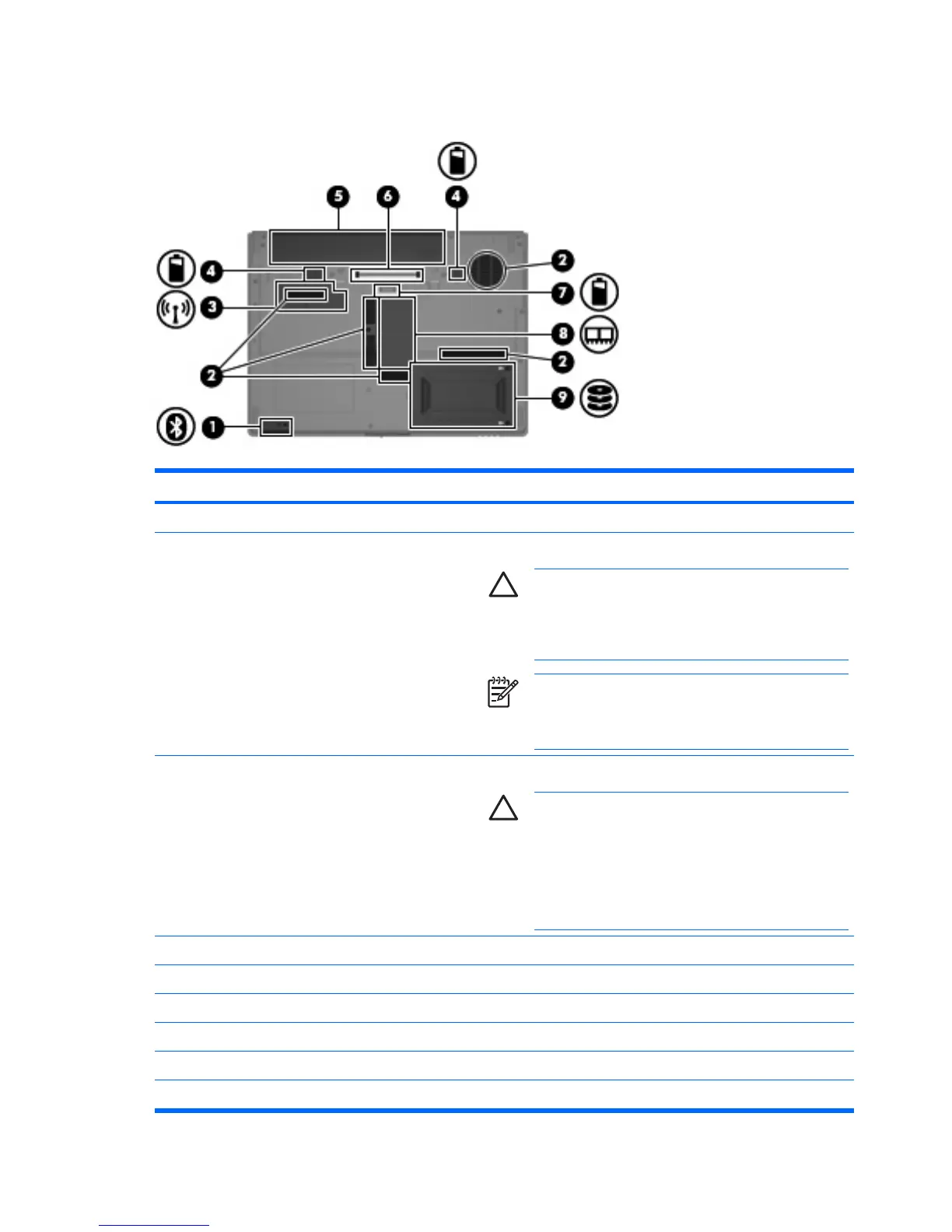

Bottom components
Component Description
(1) Bluetooth compartment Contains a Bluetooth device.
(2) Vents (5) Enable airflow to cool internal components.
CAUTION: To prevent overheating, do not obstruct
vents. Use the computer only on a hard, flat surface. Do
not allow another hard surface, such as an adjoining
optional printer, or a soft surface, such as pillows or thick
rugs or clothing, to block airflow.
NOTE: The computer fan starts up automatically to cool
internal components and prevent overheating. It is normal
for the internal fan to cycle on and off during routine
operation.
(3) WLAN module compartment Contains a WLAN module.
CAUTION: To prevent an unresponsive system and the
display of a warning message, replace the device with only
a WLAN module authorized for use in the computer by the
governmental agency that regulates wireless devices in
your country. If you replace the device and then receive a
warning message, remove the device to restore computer
functionality, and then contact technical support through
Help and Support.
(4) Battery release latches (2) Release the battery from the battery bay.
(5) Battery bay Holds the battery.
(6) Docking connector Connects an optional docking device.
(7) Accessory battery connector Connects an optional accessory battery.
(8) Memory module compartment Contains the memory module slots.
(9) Hard drive bay Holds the hard drive.
14 Chapter 2 Components ENWW
