EL-MF877-00 Page 3
Template Revision C
Last revalidation date 09-May-2018
HPI instructions for this template are available at EL-MF877-01
3.2 Optional Graphic. If the disassembly process is complex, insert a graphic illustration below to identify the items contained
in the product that require selective treatment (with descriptions and arrows identifying locations).

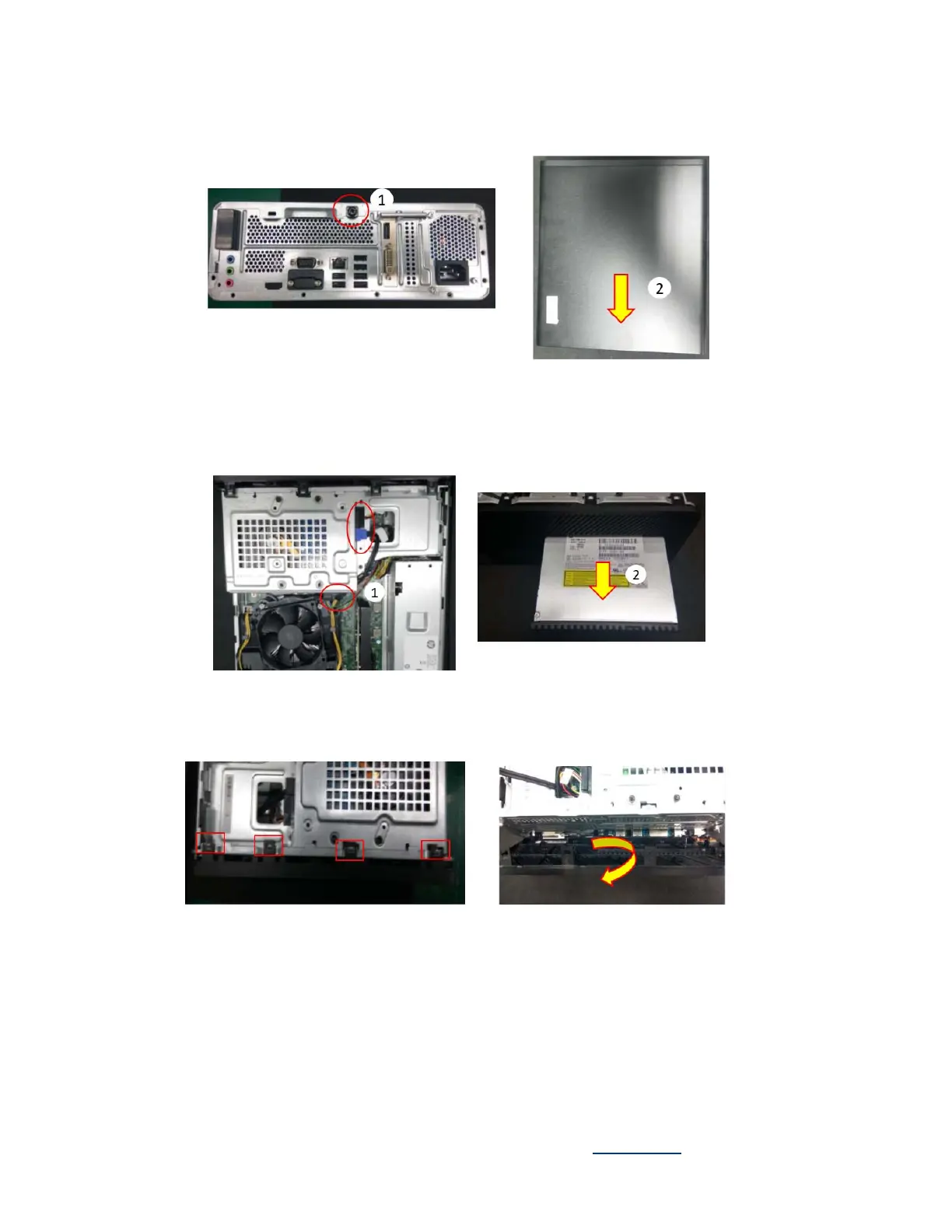

1. Loosen 1 screw and remove access panel from housing.
2. Pull off ODD and HDD cable connector then remove
ODD module by pushing ODD Latch.
3. Unlock 4 hooks then rotate to remove Front Bezel from housing
4. Pry 6 hooks to remove Dust Filter from Front Bezel
To Next Page
