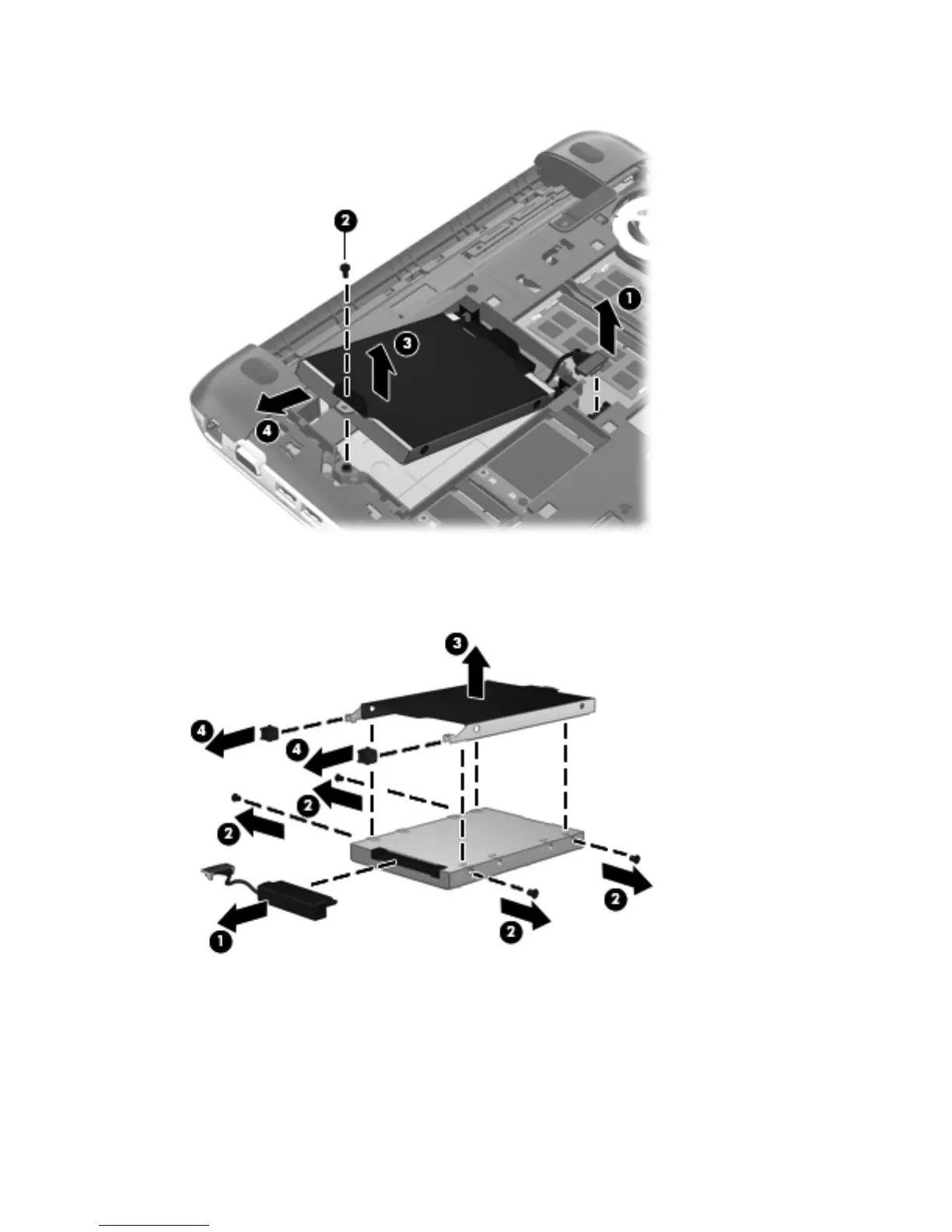

4. Slide the hard drive (4) up and to left at an angle and out of the hard drive bay.
5. If it is necessary to replace the connector cable (1), the screws (2), the bracket (3), or the
isolators (4), remove and replace the components. The bracket, connector cable, isolators, and
screws are available in the Hard Drive Hardware Kit, spare part number 664913-001.
Reverse this procedure to reassemble and install the hard drive.
46 Chapter 4 Removal and replacement procedures

HP 3115m Specifications

General

Webcam	Integrated VGA webcam
Processor	AMD Dual-Core Processor E-300
Graphics	AMD Radeon HD 6310
Display	11.6-inch, 1366 x 768 resolution
RAM	Up to 4 GB DDR3
Storage	320 GB HDD
Operating System	Windows 7
Battery	6-cell Li-Ion
Wireless	802.11b/g/n, Bluetooth
Dimensions	11.4 x 8.4 x 0.83-1.26 in (28.9 x 21.4 x 2.1-3.2 cm)
