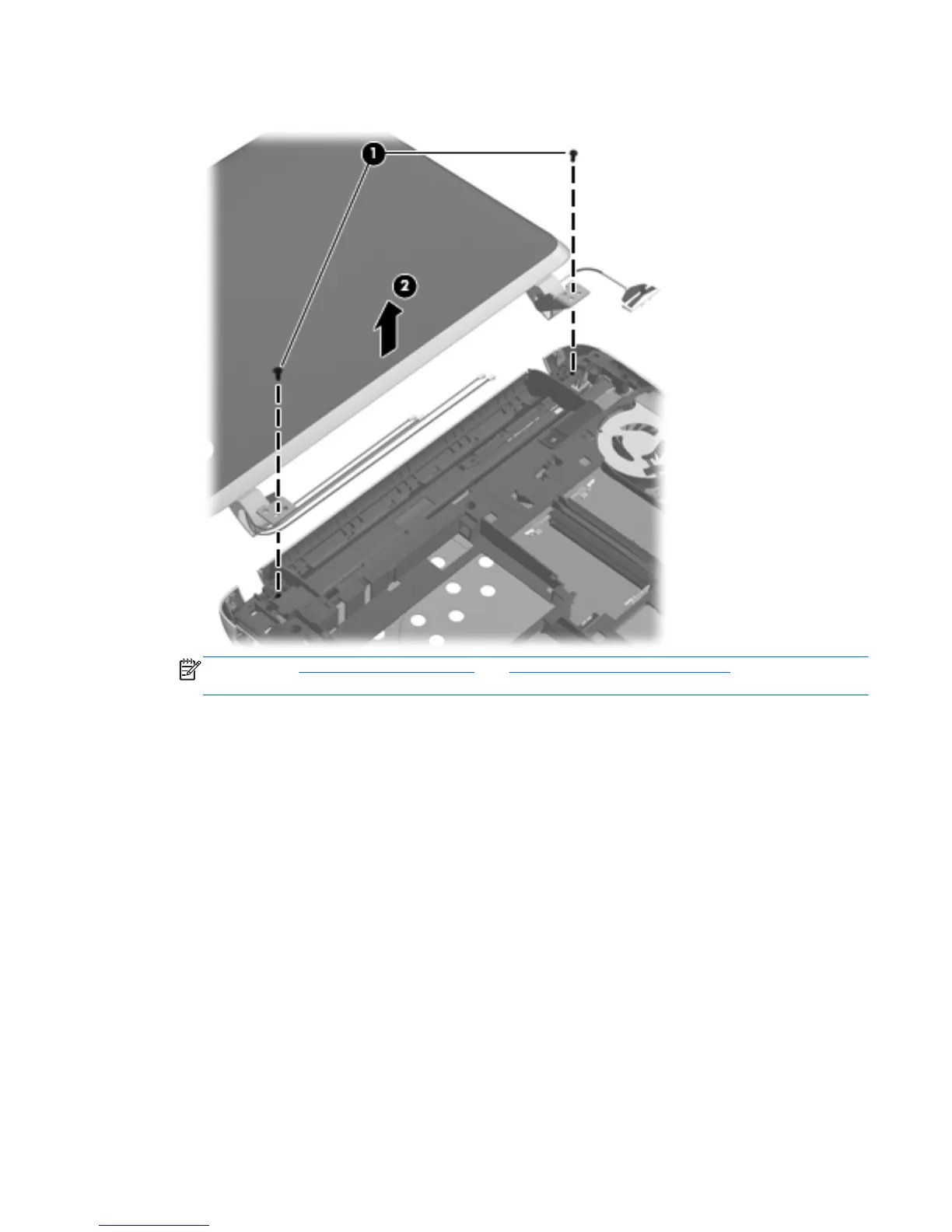

5. Remove the display assembly (2).
NOTE: See Display panel on page 35 and Webcamera module on page 36 for display bezel,
display panel, and webcamera module removal procedures.
6. If it is necessary to replace the hinges:
a. Remove the display assembly.
b. Remove the display bezel.
c. Remove the display panel.
d. Remove the four Phillips PM2.0×4.2 (1) screws that secure the hinges to the
display enclosure.
Component replacement procedures 53
