HP 3314A Manual

Installation
NEAR TERMINATION
OF OTHER WIRE OF
TWISTED PAIR
ISO METRIC
THREAD M3.5 x 0.6
logic Levels
The Hewlett-Packard Interface Bus logic levels are TTL
compatible, i.e., the true (1) state is 0.0 Vdc to + 0.4 Мас
and the false (O) state is 2.5 Vdc to + 5 Vdc.
Programming and Output Data Format
Refer to Section ІІ, Operation.
Mating Connector
-hp- 1251-0293; Amphenol 57-30240.
SIGNAL GROUND
P/O TWISTED PAIR WITH ЇЇ
| PIO TWISTED PAIR WITH 10
| SHOULD BE GROUNDED | P/O TWISTED PAIR WITH 9
P/O TWISTED PAIR WITH 8
PIO TWISTED PAIR WITH 7
PIO TWISTED PAIR WITH 6
REN
DIO 8
0107
0106
0105
Mode] 3314А
SHIELD— CONNECT TO
ATN GROUND
ЕШ
ТЕМЕН
24-РІМ MICRO-RIBBON
(SERIES 57) СОММЕСТОК
Mating Cables Available
-hp- 10631A, 1 metre (3.3 tt.)
-hp- 106318, 2 metres (6.6 ft)
-hp- 10631C, 4 metres (13.2 ft.)
-hp- 10631D, 0.5 metres (1.6 ft)
Cabling Restrictions
A Hewlett-Packard Interface Bus system may contain no
more than 2 metres (6.6 ft.) of connecting cable per instru
ment.
The maximum accumulative length of connecting cable for
any Hewlett-Packard interface Bus system is 20 metres
(65.6 ft.)

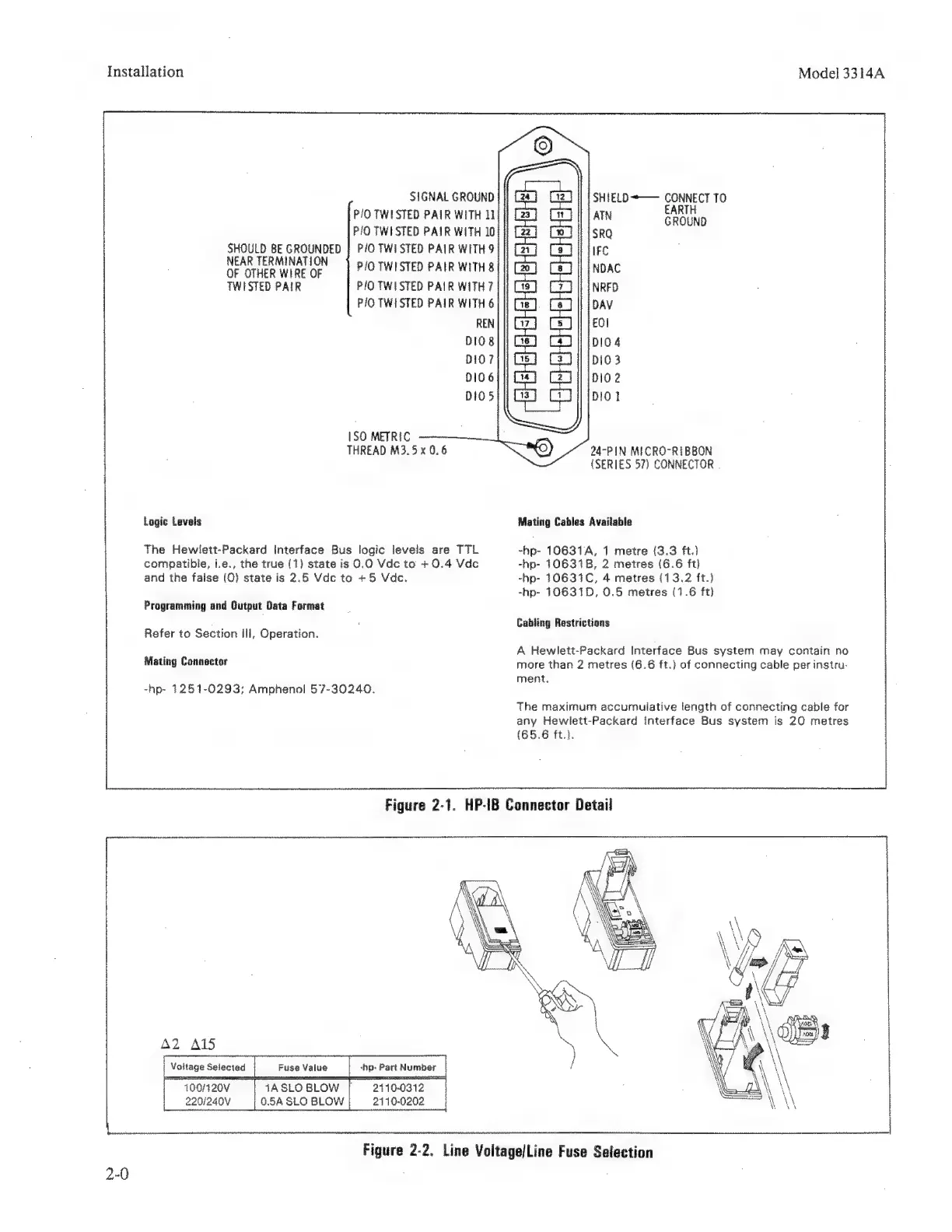

Figure 2-1. HP-IB Connector Detail
1A SLO BLOW 2110-0312
0.54 SLO BLOW
100/120V
220/240V 2110-0202
|
Figure 2-2. Line Voitage/Line Fuse Selection
2-0
