Installation
REMOVE
Model
3314A

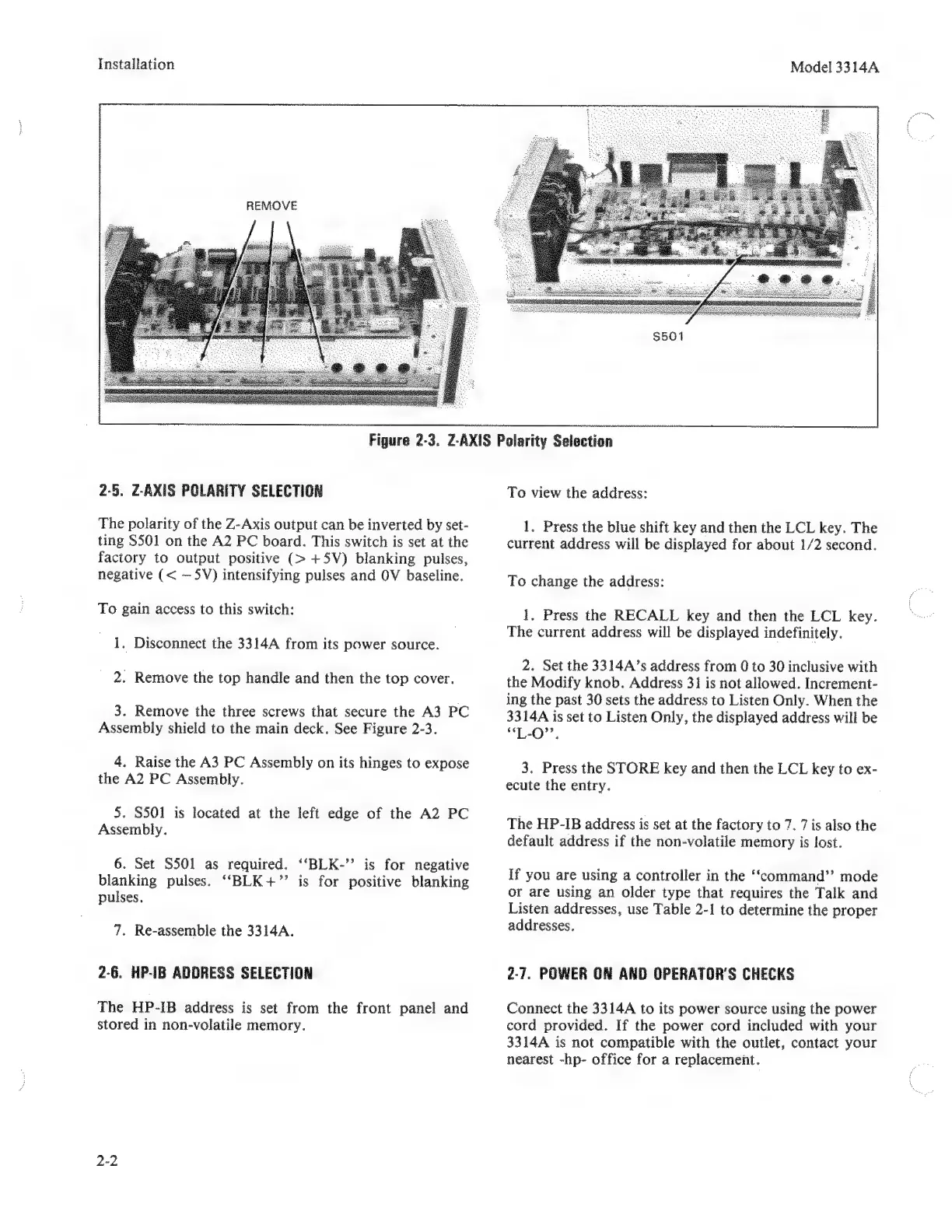

Figure
2-3.
Z-AXIS
Polarity
Selection
2-5.
Z-AXIS
POLARITY
SELECTION
The
polarity
of
the
Z-Axis
output
can
be
inverted
by
set-
ting
$501
on
the
A2
PC
board.
This
switch
is
set
at
the
factory
to
output
positive
(>
+5V)
blanking
pulses,
negative
(<
—5V)
intensifying
pulses
and
OV
baseline.
To
gain
access
to
this
switch:
1,
Disconnect
the
3314A
from
its
power
source.
2.
Remove
the
top
handle
and
then
the
top
cover.
3.
Remove
the
three
screws
that
secure
the
A3
PC
Assembly
shield
to
the
main
deck.
See
Figure
2-3.
4.
Raise
the
A3
PC
Assembly
on
its
hinges
to
expose
the
A2
PC
Assembly.
5.
S501
is
located
at
the
left
edge
of
the
A2
PC
Assembly.
6.
Set
S501
as
required.
“BLK-”
is
for
negative
blanking
pulses.
“ВІК--”
is
for
positive
blanking
pulses.
7.
Re-assemble
the
3314A.
2-6.
HP-IB
ADDRESS
SELECTION
The
HP-IB
address
is
set
from
the
front
panel
and
stored
in
non-volatile
memory.
2-2
To
view
the
address:
1.
Press
the
blue
shift
key
and
then
the
LCL
key.
The
current
address
will
be
displayed
for
about
1/2
second.
To
change
the
address:
1.
Press
the
RECALL
key
and
then
the
LCL
key.
The
current
address
will
be
displayed
indefinitely.
2.
Set
the
3314A’s
address
from
0
to
30
inclusive
with
the
Modify
knob.
Address
31
is
not
allowed.
Increment-
ing
the
past
30
sets
the
address
to
Listen
Only.
When
the
3314A
is
set
to
Listen
Only,
the
displayed
address
will
be
ТО"
;
3.
Press
the
STORE
key
and
then
the
LCL
key
to
ex-
ecute
the
entry.
The
HP-IB
address
is
set
at
the
factory
to
7.
7
is
also
the
default
address
if
the
non-volatile
memory
is
lost.
If
you
are
using
a
controller
in
the
‘‘command’’
mode
or
are
using
an
older
type
that
requires
the
Talk
and
Listen
addresses,
use
Table
2-1
to
determine
the
proper
addresses.
2-7.
POWER
ON
AND
OPERATOR'S
CHECKS
Connect
the
3314A
to
its
power
source
using
the
power
cord
provided.
If
the
power
cord
included
with
your
3314A
is
not
compatible
with
the
outlet,
contact
your
nearest
-hp-
office
for
a
replacement.
