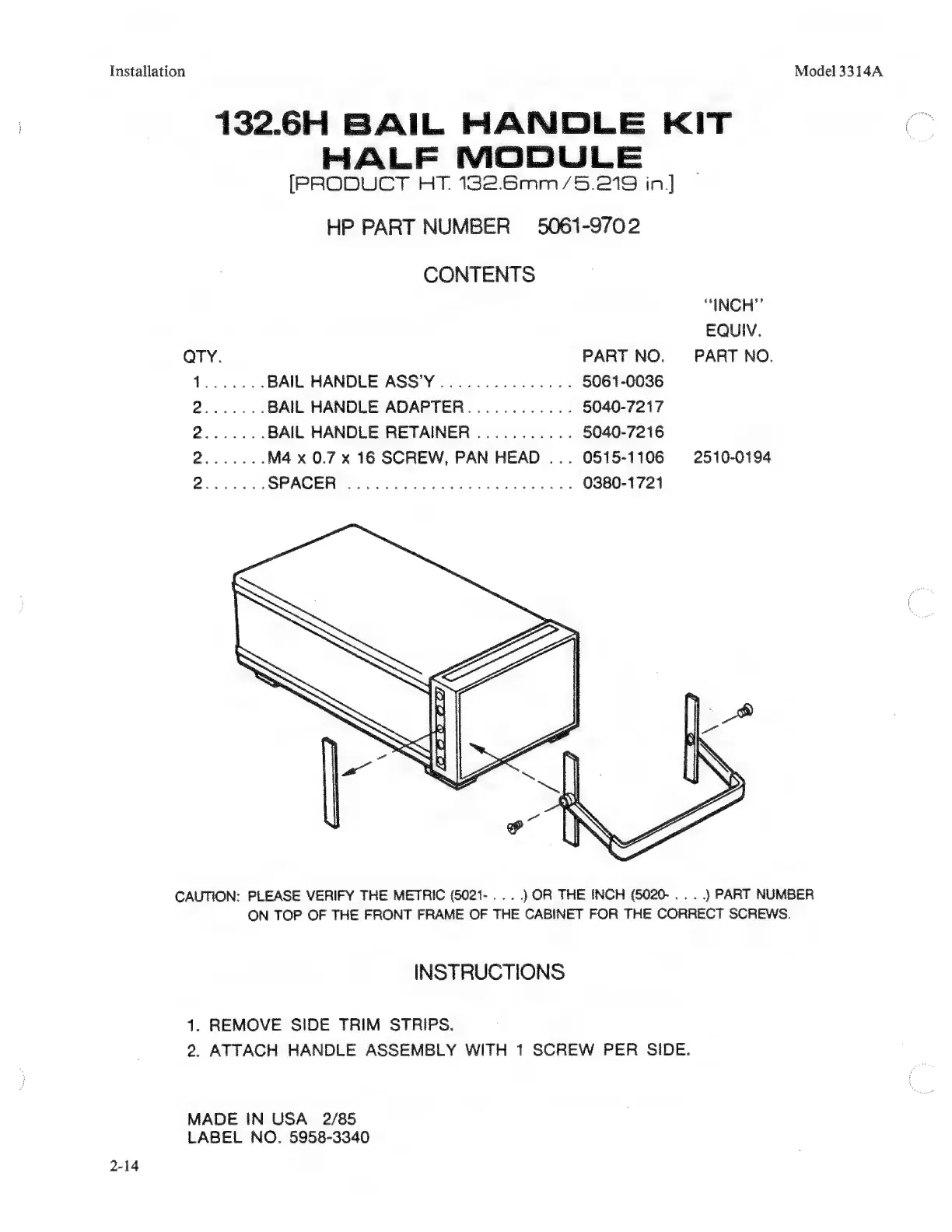

Installation
Model 3314A
[PRODUCT HT. /Зе бит /5.219 in]
HP PART NUMBER 5061-9702
CONTENTS
INCH”
EQUIV.
QTY. PART NO. PART NO.
T. ura sa BAIL HANDLE ASS'Y ............... 5061-0036
ggg BAIL HANDLE ADAPTER............ 5040-7217
РОНЕ BAIL HANDLE RETAINER ........... 5040-7216
Db css M4 x 0.7 x 16 SCREW, PAN HEAD ... 0515-1106 2510-0194
C PEN, SPACER ......................... 0380-1721
CAUTION: PLEASE VERIFY THE METRIC (5021-. . . .) OR THE INCH (5020- .. . .) PART NUMBER
ON TOP OF THE FRONT FRAME OF THE CABINET FOR THE CORRECT SCREWS.
INSTRUCTIONS
1. REMOVE SIDE TRIM STRIPS.
2. ATTACH HANDLE ASSEMBLY WITH 1 SCREW PER SIDE.
MADE IN USA 2/85
LABEL NO. 5958-3340
2-14
