SECTION 111
OPERATION
3-1. INTRODUCTION
This section contains a front and rear panel overview,
error code listing, and an HP-IB summary. The Operating
Manual should be used for detailed operating
information.

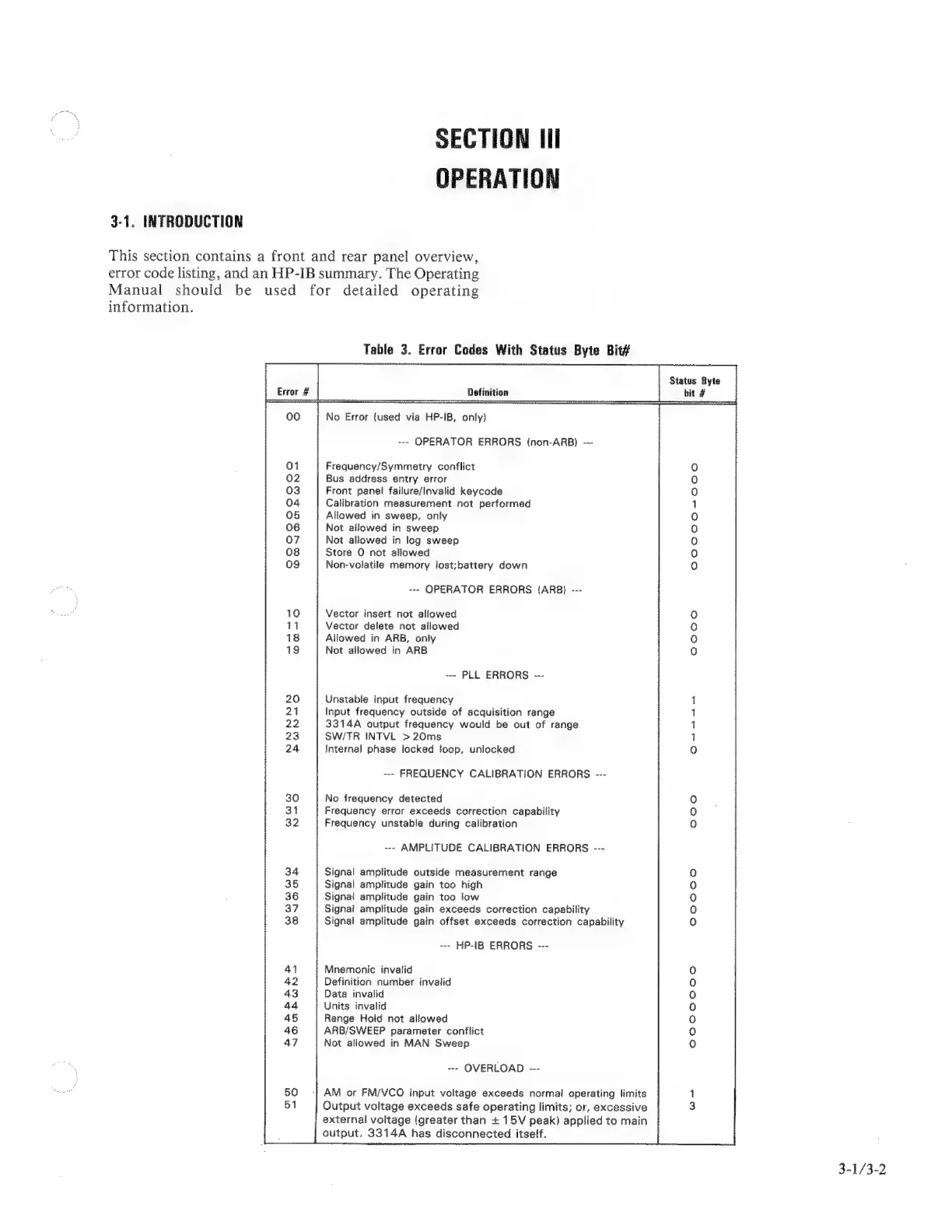

Table 3. Error Codes With Status Byte Bit
No Error (used via HP-IB, only)
Status Byte
bit #
= OPERATOR ERRORS (поп-АРВ) ---
Frequency/Symmetry conflict
Bus address entry error
Front panel failure/Invalid keycode
Calibration measurement not performed
Allowed in sweep, only
Not allowed in sweep
Not allowed in log sweep
Store O not allowed
Non-volatile memory lost;battery down
оо>ооо=оомо
-- OPERATOR ERRORS (АРВ) ---
Vector insert not allowed
Vector delete not allowed
Allowed in ARB, oniy
Not allowed in ARB
— PLL ERRORS —
Unstable input frequency
Input frequency outside of acquisition range
3314A output frequency would be out of range
SW/TR INTVL > 20ms
internal phase iacked loop, unlocked
- FREQUENCY CALIBRATION ERRORS ---
No frequency detected
Frequency error exceeds correction capability
Frequency unstable during calibration
= AMPLITUDE CALIBRATION ERRORS ---
Signal amplitude outside measurement range
Signal amplitude gain too high
Signal amplitude gain too low
Signal amplitude gain exceeds correction capability
Signal amplitude gain offset exceeds correction capability
-— HP-IB ERRORS ---
Mnemonic invalid
Definition number invalid
Data invalid
Units invalid
Range Hold not allowed
ARB/SWEEP parameter conflict
Not allowed in MAN Sweep
оооооосо
--- OVERLOAD --
‘| AM or FM/VCO input voltage exceeds normal operating limits
Output voltage exceeds safe operating limits; or, excessive
external voltage (greater than + 15V peak) applied to main
output, 3314A has disconnected itself.
