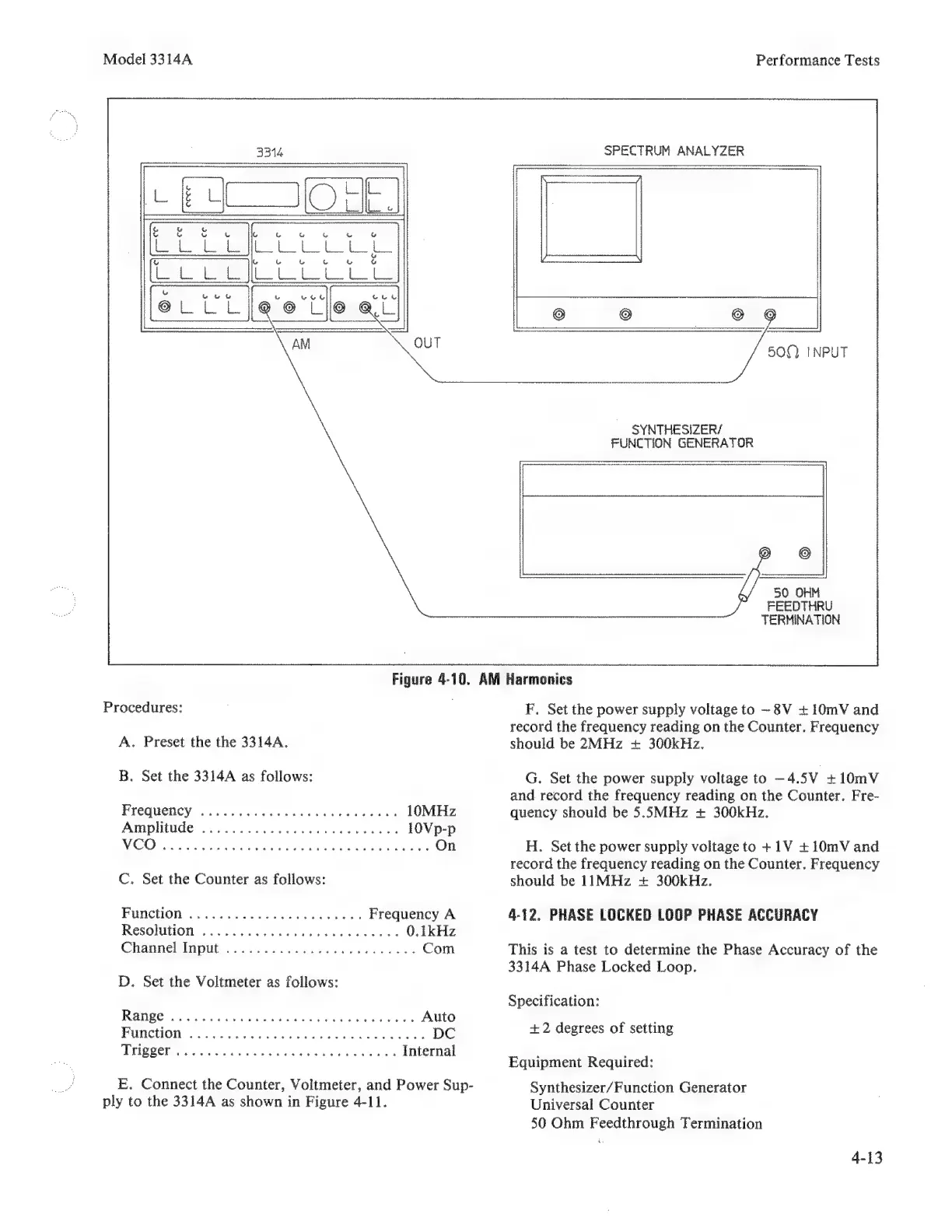

Figure 4-10.
Procedures: |
A. Preset the the 3314A.
B. Set the 3314A as follows:
КТеанепсу" стао но Tt Vitas bd 10MHz
AmpDIifüdóë esu ae a ce а 10Vp-p
ЖЕЛІМ а Баз Еее Qu д қалын Оп
С. Set the Counter as follows:
тте ауылын tcc oet Frequency A
ResolütióR кызга сласы ars mI eis uius 0.1КН2
Channel Input ......................... Com
D. Set the Voltmeter as follows:
Ranges. Z suse pex io хш eae еа Auto
FUNCION коше куз oa cede CROP et e d DC
PER ДРЕ лды ERR mE Rd Internal
E. Connect the Counter, Voltmeter, and Power Sup-
ply to the 3314A as shown in Figure 4-11.
Performance Tests
SPECTRUM ANALYZER
50() INPUT
SYNTHESIZER/
FUNCTION GENERATOR
50 OHM
FEEDTHRU
TERMINATION
AM Harmonics
F. Set the power supply voltage to ~8V + ту and
record the frequency reading on the Counter. Frequency
should be 2MHz + 300kHz.
G. Set the power supply voltage to —4.5V +10mV
and record the frequency reading on the Counter. Fre-
quency should be 5.5MHz + 300kHz.
H. Set the power supply voltage to +1V +10mV and
record the frequency reading on the Counter. Frequency
should be 11MHz + 300kHz.
4-12. PHASE LOCKED LOOP PHASE ACCURACY
This is a test to determine the Phase Accuracy of the
3314A Phase Locked Loop.
Specification:
+2 degrees of setting
Equipment Required:
Synthesizer/Function Generator
Universal Counter
50 Ohm Feedthrough Termination
4-13
