Model 3314A
===
| өү L Ü le TY
Performance Tests
SPECTRUM ANALYZER
VH
ATTENUATOR

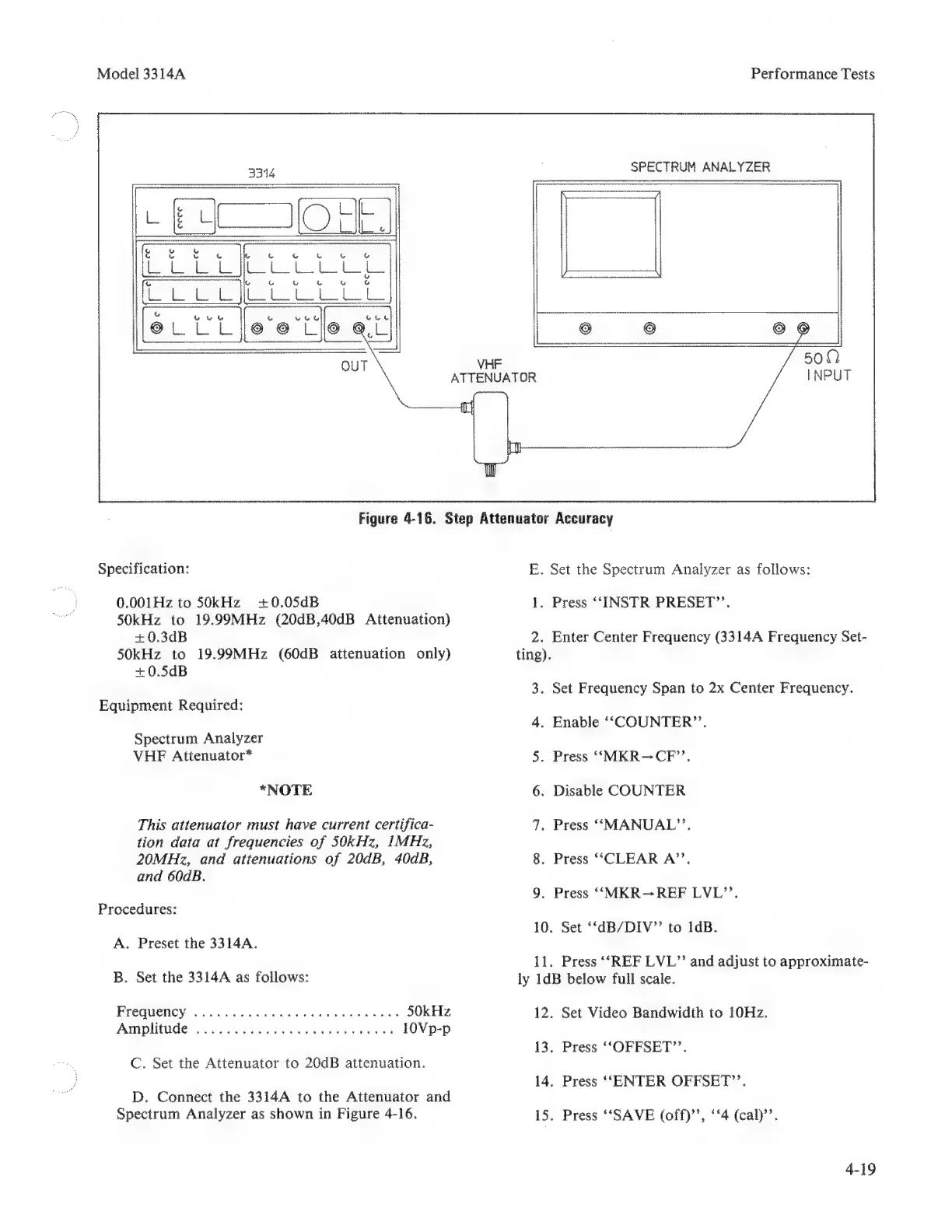

Figure 4-16. Step Attenuator Accuracy
Specification:
0.001Hz to SOkHz + 0.05dB
SOkHz to 19.99MHz (20dB,40dB Attenuation)
+ 0.3dB
50kHz to 19.99MHz (60dB attenuation only)
+0.5dB
Equipment Required:
Spectrum Analyzer
УНЕ Attenuator*
*NOTE
This attenuator must have current certifica-
tion data at frequencies of 50kHz, IMHz,
20MHz, and attenuations of 20dB, 40dB,
and 60dB.
Procedures:
A. Preset the 3314A.
B. Set the 3314A as follows:
ІЕТЕСШМЕПСТ ране а та ый к екен SOkHz
Amplitude .......................... 10Vp-p
C. Set the Attenuator to 20dB attenuation.
D. Connect the 3314A to the Attenuator and
Spectrum Analyzer as shown in Figure 4-16.
E. Set the Spectrum Analyzer as follows:
1. Press “INSTR PRESET”.
2. Enter Center Frequency (3314A Frequency Set-
ting).
3. Set Frequency Span to 2x Center Frequency.
4. Enable “COUNTER”.
5. Press "МКЕ— СЕ".
6. Disable COUNTER
7. Press “MANUAL”.
8. Press “CLEAR А".
9. Press 'MKR- REF LVL''.
10. Set *dB/DIV" to 1dB.
11. Press "REF LVL” and adjust to approximate-
ly 1dB below full scale.
12. Set Video Bandwidth to 10Hz.
13. Press “OFFSET”.
14. Press “ENTER OFFSET".
15. Press “SAVE (off), “4 (сају'.
4-19
