Model 3314A
C. Connect the 50 Ohm Feedthrough Termination to
the 3314A's Main Output. Connect the 5000 Feed-
through Termination to the 3314A's X3 Output.
D. Connect the oscilloscope’s 1МО input to the
3314A's X3 Output.
E. Set the oscilloscope to display 2 complete cycles
with the peaks of the square wave at the 0% and 100%
graticule lines.
F. Using the oscilloscope's delay function (set the
delayed time per division to .1yS/DIV), measure the rise
and fall time from the 10% to 90% graticule lines. In
both cases, this should be less than 2 divisions
( <200ns).
4-23. RESIDUAL DC OFFSET
This test measures the DC voltage output from the X3
Output with no signal present.
FEEDTHRU t
L.
£ ` < v ú ш “ & H
L. i. L. CLLLLLE I
aes ae eee
Performance Tests
Required Equipment:
AC/DC Digital Voltmeter
50 Ohm Feedthrough Termination
A 5000 Feedthrough Termination consisting of:
1 4990 resistor, -hp- part number 0698-4123
Procedure:
A. Preset the 3314A.
B. Set the 3314A as follows:
PUNCION) 24 босана AU CREE SO CR OFF
Ө РО КА edie nae ГЕК: OVDC
C. Connect the 50 Ohm Feedthrough Termination to
the 3314A’s Main Output. Connect the 5000 Feed-
through Termination to the 3314A’s X3 Output.
D. Measure the DC voltage at the X3 Output. This
voltage should be within 40mV of OVDC,
AC/DC DIGITAL
VOLTMETER
& ç v|
@ Lie өл.
50 OHM
FEEDTHRU
TERMINATION
NO CONNECTION

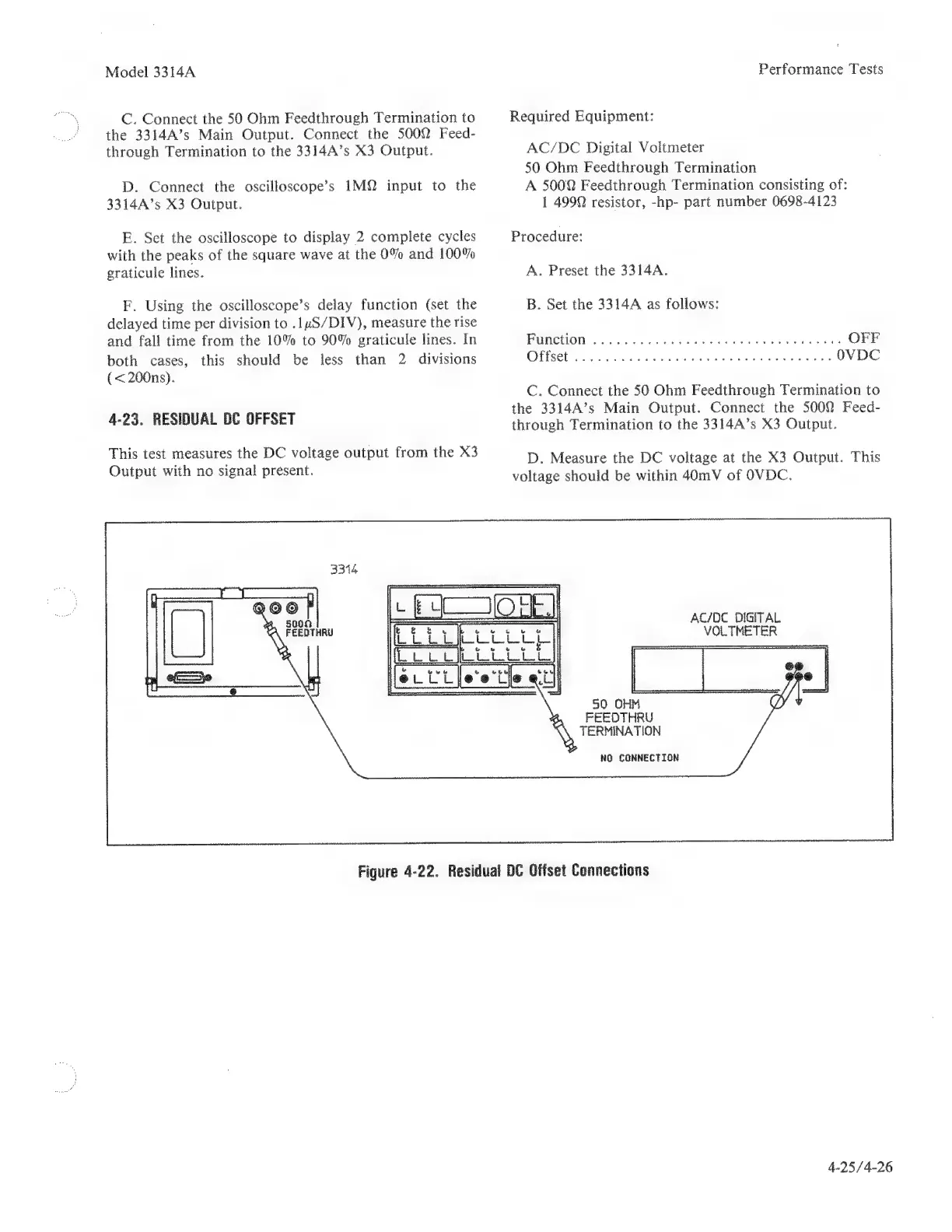

Figure 4-22. Residual DC Offset Connections
4-25/4-26
