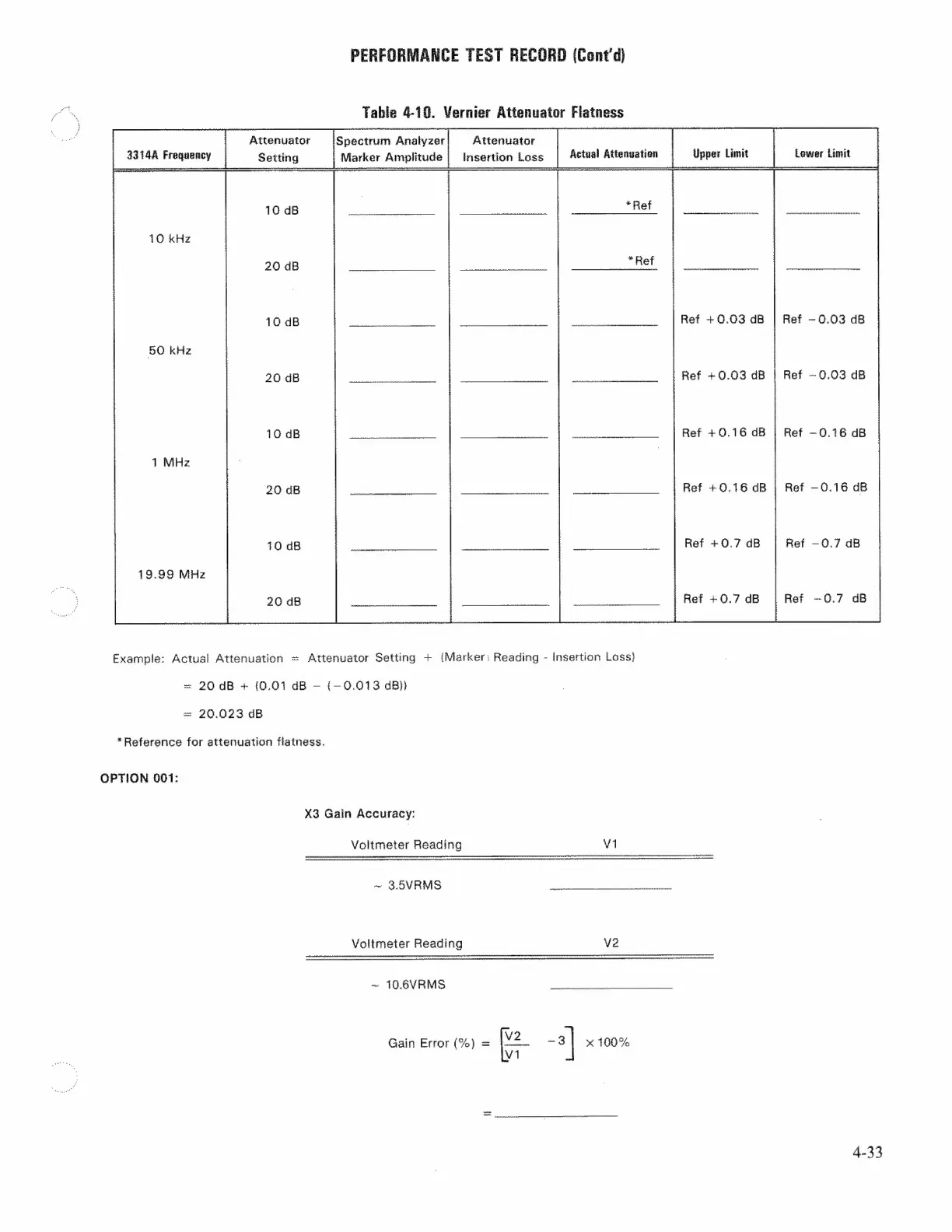

PERFORMANCE TEST RECORD (Cont d)
Table 4-10. Vernier Attenuator Flatness
Attenuator Spectrum Analyzer Attenuator
33144 Frequency Setting Marker Amplitude | Insertion Loss Actual Attenuation Lower Limit
Ref +0.03 dB | Ref — 0.03 dB
Ref +0.03 dB | Ref -0.03 dB
Ref +0.16 dB | Ref — 0.16 dB
Ref +0.16 dB | Ref —0.16 dB
Ref 4 0.7 dB Ref —0.7 dB
19.99 MHz
Ref +0.7 dB Ref -0.7 dB
Example: Actual Attenuation = Attenuator Setting + (Marker: Reading - Insertion Loss)
= 20dB + (0.01 dB — (— 0.013 d8}
= 20.023 dB
*Reference for attenuation flatness.
OPTION 001:
X3 Gain Accuracy:
Voltmeter Reading V1
~ 3.5VRMS 2 B
Voltmeter Reading V2
~ 10.6VRMS
Gain Error (%)
|
= = °] x 100%
V1
4-33
