. Model 3314A General Information

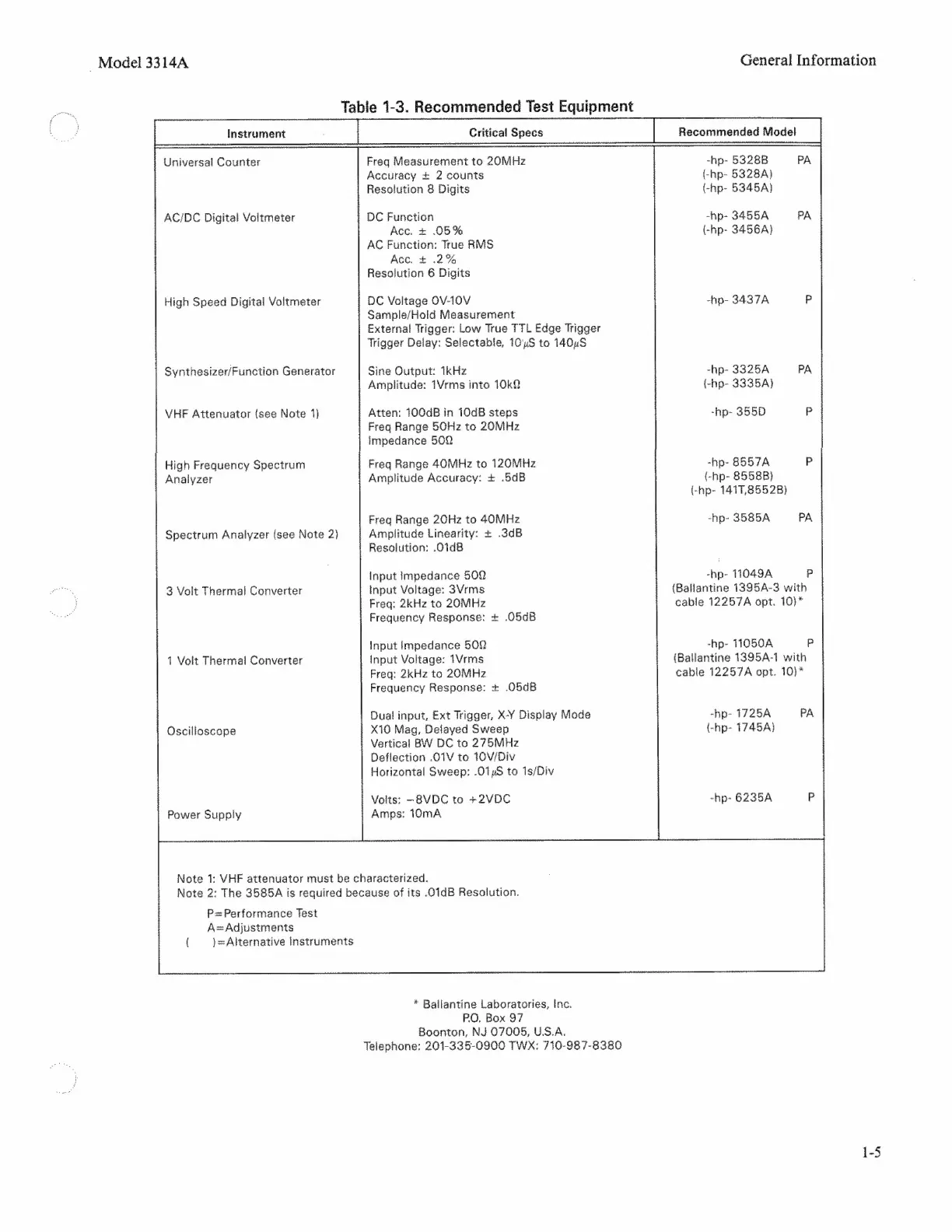

Table 1-3. Recommended Test Equipment
Critical Specs Recommended Model
Universal Counter Freq Measurement to 20MHz -hp- 53288 PA
Accuracy + 2 counts bhp- 5328A)
Resolution 8 Digits (-hp- 5345А)
AC/DC Digital Voltmeter DC Function -hp- 3455A PA
Асс. ж 05% (-hp- 3456A)
AC Function: True RMS
Acc. + .296
Resolution 6 Digits
High Speed Digital Voltmeter DC Voltage OV-10V -hp- 3437A P
Sample/Hold Measurement
External Trigger: Low True TTL Edge Trigger
Trigger Delay: Selectable, 108 to 14048
Synthesizer/Function Generator Sine Output: 1kHz -hp- 3325A PA
Amplitude: 1Vrms into 10kQ (-hp- 3335A)
VHF Attenuator (see Note 1) Atten: 10088 in 10dB steps -hp- 355D P
Freg Range 50Hz to 20MHz
impedance 500
Freq Range 40MHz to 120MHz -hp- 85574 P
Amplitude Accuracy: + .5dB thp- 85588)
(-hp- 1417,85528)
High Frequency Spectrum
Analyzer
Freg Range 20Hz to 40MHz -hp- 3585A PA
Amplitude Linearity: + .3dB
Resolution: .O1dB
Spectrum Analyzer (see Note 2)
input impedance 509 -hp- 11049A P
3
Volt
Thermal
Converter
input
Voltage:
3Vrms
{Ballantine
1395A-3
with
Freq:
2kHz
to
20MHz
cable
122574
opt. 10)*
Frequency Response: + .05dB
Input impedance 500 -hp- 11050A P
1
Volt
Thermal
Converter
input
Voltage:
Vrms
(Ballantine
1395A-1
with
Freq: 2kHz to 20MHz cable 12257A opt. 10)*
Frequency Response: + .05dB
Dual input, Ext Trigger, X-Y Display Mode -hp- 1725A PA
X10 Mag, Delayed Sweep (-ћр- 1745A)
Vertical BW DC to 275MHz
Deflection .O1V to ТОМУ
Horizontal Sweep: .01;6 to 1s/Div
Oscilloscope
Volts: - 8VDC to +2VDC -hp- 6235A P
Power Supply Amps: 10mA
Note 1: VHF attenuator must be characterized.
Note 2: The 35854 is required because of its .O1dB Resolution.
P= Performance Test
A=Adjustments
}=Alternative Instruments
* Ballantine Laboratories, Inc.
P.O, Box 97
Boonton, NJ 07005, U.S.A.
Telephone: 201-335-0900 TWX: 710-987-8380
