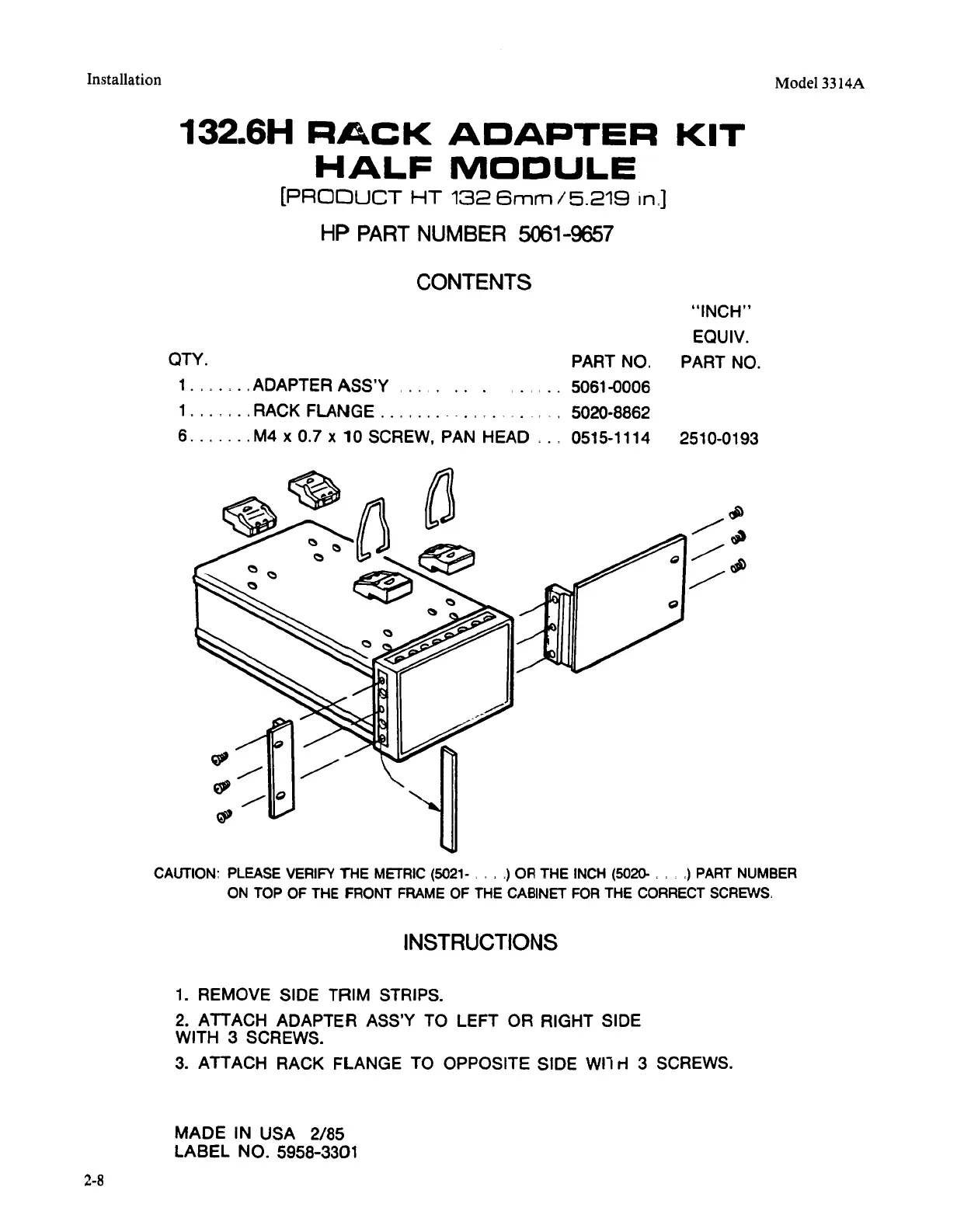

Installation'
132.6H RACK ADAPTER KIT
HALF IVIDDULE
[PRODUCT HT 132 6mm 15.219 m.]
HP PART NUMBER 5061-9657
CONTENTS
"INCH"
Model 3314A
QTY. PART NO.
1. , ADAPTER ASS'Y , .. ,. .. . .. 5061-0006
1 ,
.. RACK FLANGE - -.". _. 5020·8862
6
.. , M4 x 0.7 x 10 SCREW, PAN HEAD ... 0515-1114
EQUIV.
PART NO.
2510-0193
CAUTION: PLEASE VERIFY THE METRIC (5021- , ... ) OR THE INCH (5020- . , . .) PART NUMBER
ON TOP OF THE FRONT FRAME OF THE CABINET FOR THE CORRECT SCREWS,
INSTRUCTIONS
1. REMOVE SIDE TRIM STRIPS.
2. A
TI ACH ADAPTER ASS'Y TO LEFT OR RIGHT SIDE
WITH 3 SCREWS.
3.
ATIACH RACK FLANGE TO OPPOSITE SIDE wn ti 3 SCREWS.
MADE IN USA 2/85
LABEL NO. 5958-3301
