HP 3314A - Page 24

Model 3314A

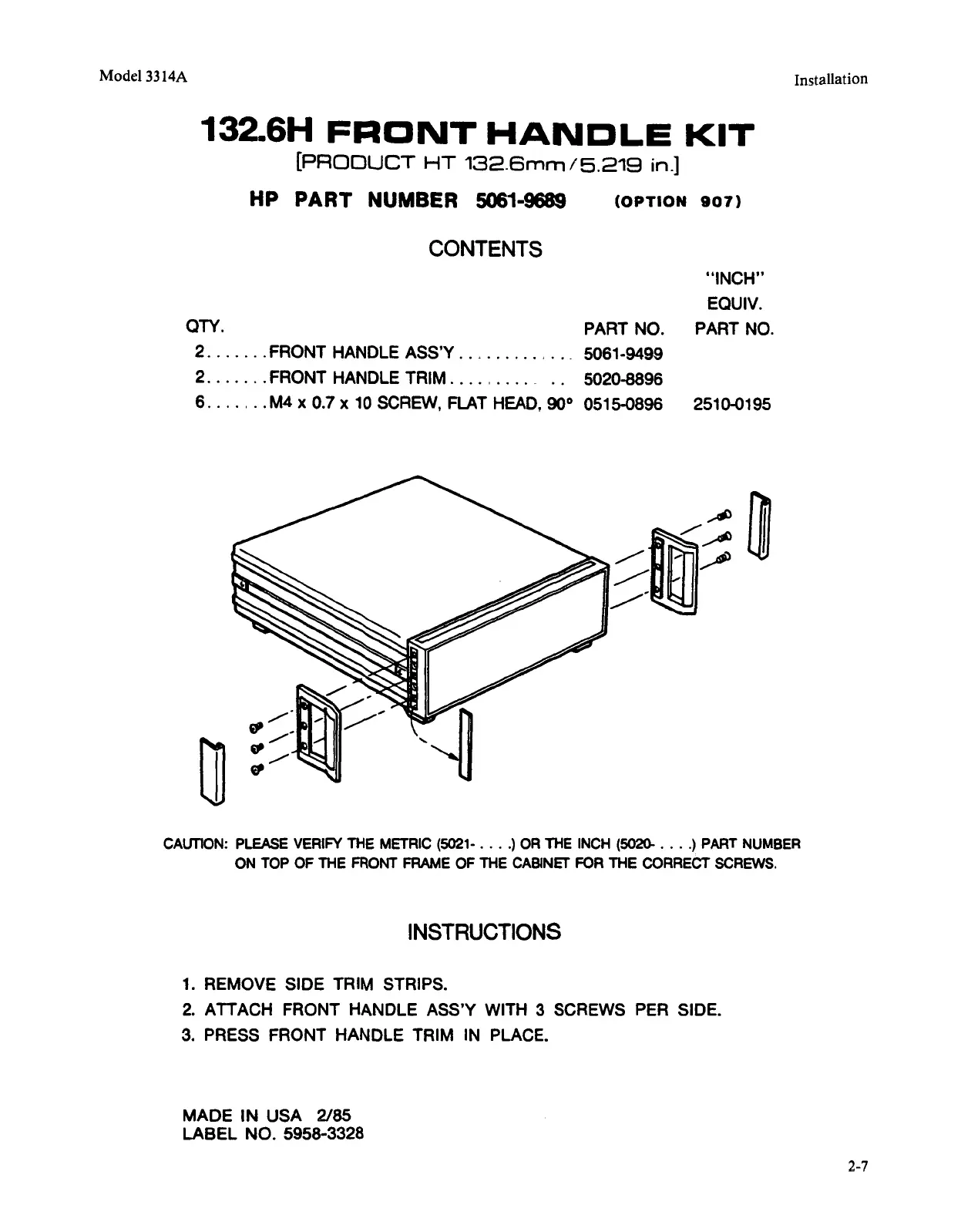

132.6H FRONT HANDLE KIT
[PRODUCT HT 132.6mm/5.218 in.]
HP PART NUMBER 5061-9689 (OPTION 907)
CONTENTS
"INCH"
aouiv.
CTY. PART NO. PART NO.
2 FRONT HANDLE ASS'Y
.. , , .. _ 5061·9499
2 FRONT HANDLE TRIM
, _ " 5020-8896
6
, .. M4 x 0.7 x 10 SCREW, FLAT HEAD, 90° 0515-0896 2510-0195
Installation
CAUTION: PLEASE VERIFY THE METRIC (5021- .... ) ORTHE INCH (5020- .... ) PART NUMBER
ON TOP OF THE FRONT FRAME OF THE CABINET FOR THE CORRECT SCREWS.
INSTRUCTIONS
1. REMOVE SIDE TRIM STRIPS.
2. ATTACH FRONT HANDLE ASS'Y WITH 3 SCREWS PER SIDE.
3. PRESS FRONT HANDLE TRIM IN PLACE.
MADE IN USA
2/85
LABEL NO. 5958-3328
2-7
