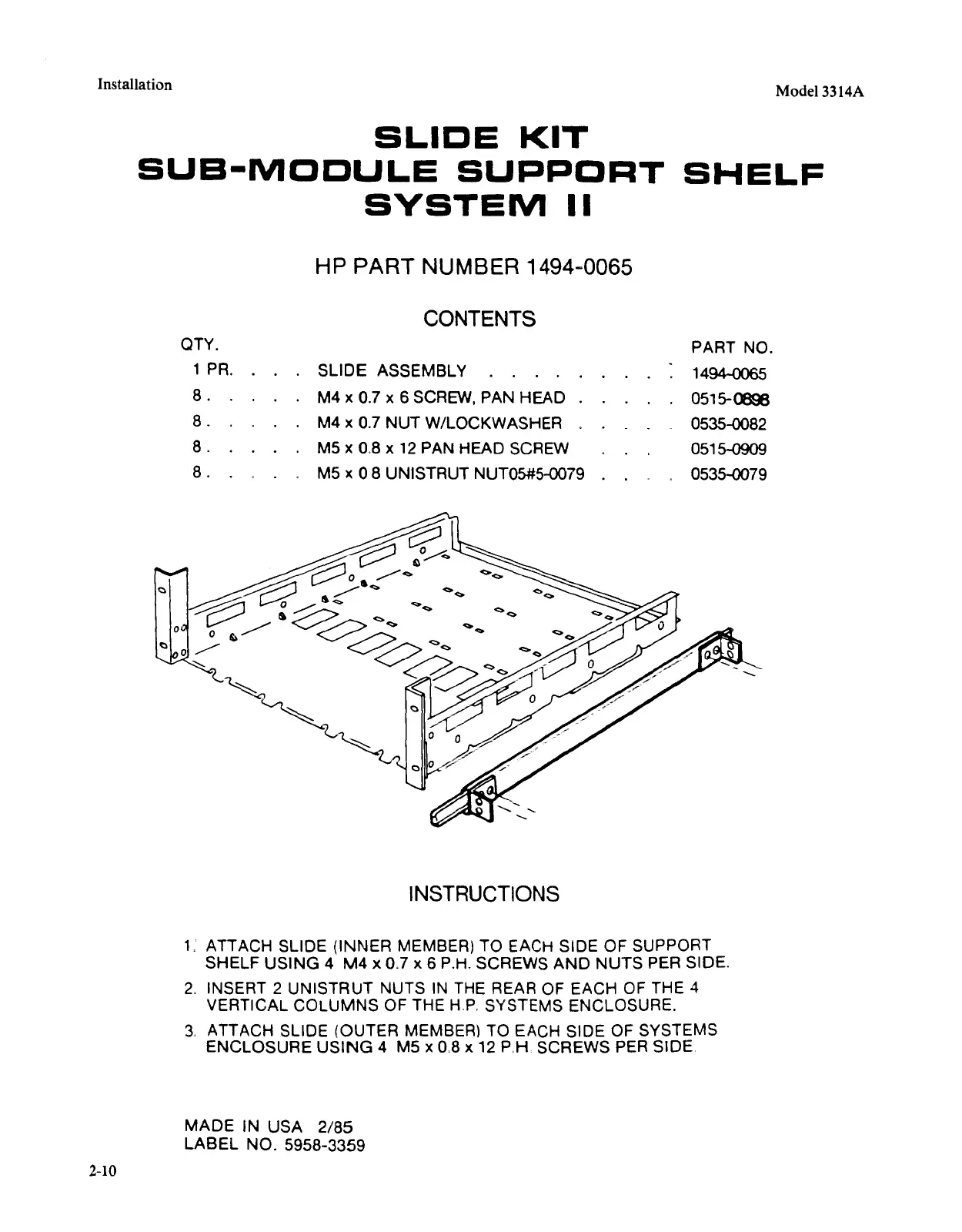

Installation
Model 3314A
SLIDE KIT
SUB-MOCULE SUPPORT SHELF
SVSTEIVI II
HP PART NUMBER 1494-0065
CONTENTS
QTY.
1PR.
8.
8.
8.
8.
SLIDE ASSEMBLY . . .
M4
x 0.7 x 6 SCREW, PAN HEAD
M4
x 0.7 NUT W/LOCKWASHER
M5
x 0.8 x 12 PAN HEAD SCREW
M5
x 08 UNISTRUT NUT05#S-0079
PART NO.
1494-0065
0515-0098
0535-0082
0515-0909
0535-0079
INSTRUCTIONS
1. ATTACH SLIDE (INNER MEMBER) TO EACH SIDE OF SUPPORT
SHELF
USING 4 M4 x 0.7 x 6 P.H. SCREWS AND NUTS PER SIDE.
2. INSERT 2 UNISTRUT NUTS IN THE REAR OF EACH OF THE 4
VERTICAL COLUMNS OF THE H.P, SYSTEMS ENCLOSURE.
3. ATTACH SLIDE (OUTER MEMBER) TO EACH SIDE OF SYSTEMS
ENCLOSURE
USING 4 M5 x 0.8 x 12 P,H. SCREWS PER SIDE
MADE IN USA 2/85
LABEL NO. 5958-3359
