Model 3314A
Installation

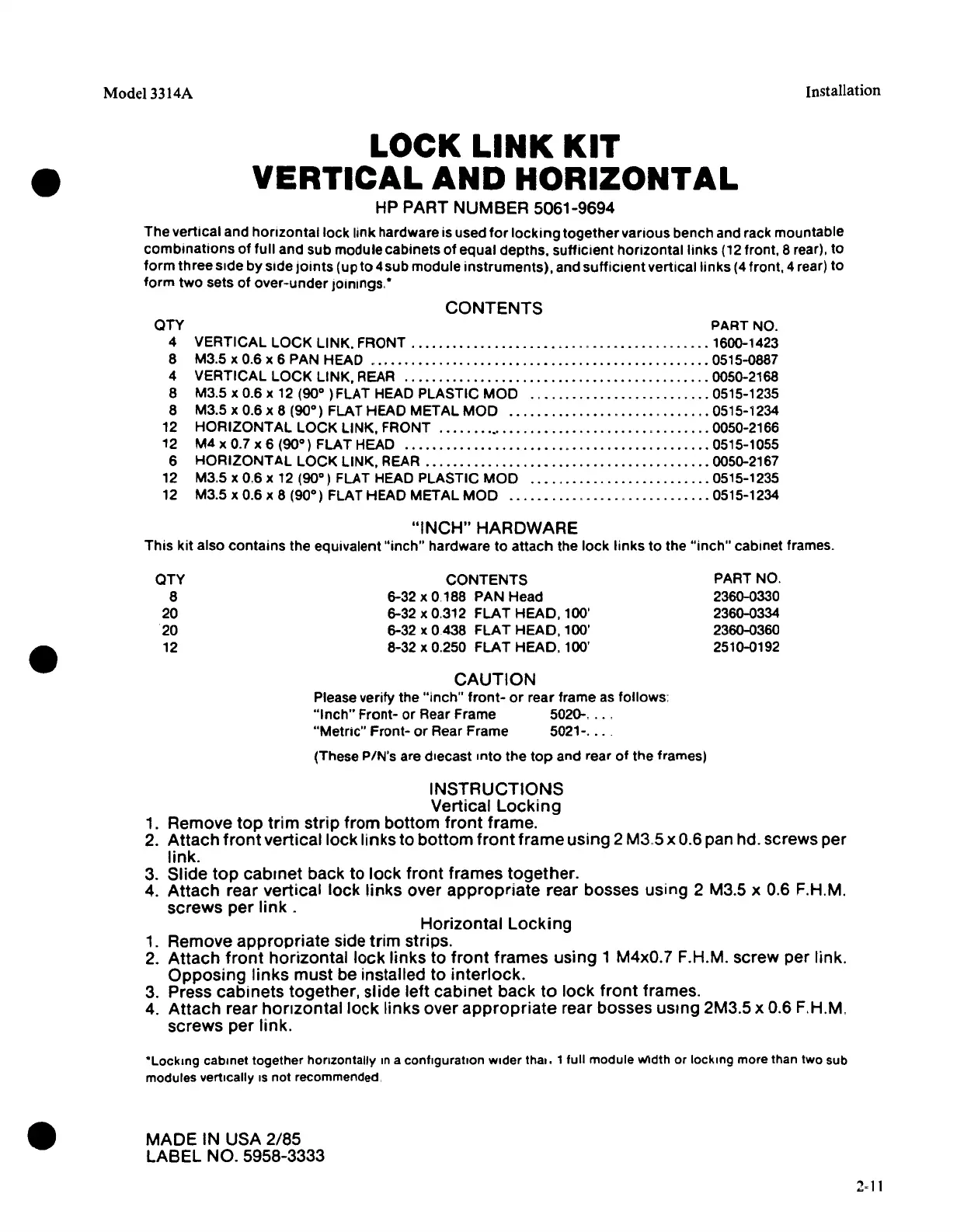

LOCK LINK KIT
VERTICAL AND HORIZONTAL
HP PART NUMBER 5061-9694
The vertical and honzontat lock link hardware is used for locking togethervarious bench and rack mountable
combinations of full and sub module cabinets of equal depths. sufficient horlzontal links (12 front, 8 rear), to
form threeSide by Side [oints (up to 4 sub module instruments), and sufficient vertical links (4front, 4 rear) to
form two sets of over-under JOinings:
CONTENTS
OTY PART NO.
4 VERTICAL
LOCK LINK. FRONT 1600-1423
8 M3.5 x 0.6 x 6 PAN HEAD •......•.............•...•....................... 0515-0887
4 VERTICAL LOCK LINK. REAR ....................................•....... 0050-2168
8 M3.5
x 0.6 x 12 (90
0
)
FLAT HEAD PLASTIC MOD ., 0515-1235
8 M3.5 x 0.6 x 8 (90
0
)
FLAT HEAD METAL MOD 0515-1234
12
HORIZONTAL LOCK LINK. FRONT ........•............................... 0050-2166
12 M4 x 0.7 x 6 (90
0
)
FLAT HEAD 0515-1055
6 HORIZONTAL LOCK LINK. REAR ........•................................ 0050-2167
12 M3.5 x 0.6 x 12 (90
0
)
FLAT HEAD PLASTIC MOD 0515-1235
12 M3.5 x 0.6 x 8 (90
0
)
FLAT HEAD METAL MOD 0515-1234
"INCH" HARDWARE
This kit also contains the equivalent "inch" hardware to attach the lock links to the "inch" cabinet frames.
OTY
8
20
20
12
CONTENTS
6-32 x 0188 PAN Head
6-32 x 0.312 FLAT HEAD, 100'
6-32
x 0438 FLAT HEAD, 100'
8-32
x 0.250 FLAT HEAD. 100'
CAUTION
Please verify the "inch" front- or rear frame as follows:
"Inch" Front- or Rear Frame 5020-, .. ,
"MetriC" Front-
or Rear Frame 5021- ....
(These PIN's are drecast Into the top and rear of the frames)
PART NO.
2360-0330
2360-0334
2360-0360
2510-0192
INSTRUCTIONS
Vertical Locking
1. Remove top trim strip from bottom front frame.
2. Attach front vertical lock links to bottom front frame using 2 M3,5 x 0.6 pan hd. screws per
link.
3. Slide
top cabinet back to lock front frames together.
4. Attach rear vertical lock links over appropriate rear bosses using 2 M3.5 x 0.6 F.H.M.
screws per link.
Horizontal Locking
1. Remove appropriate side trim strips.
2. Attach
front horizontal lock links to front frames using 1 M4xO.7 F.H.M. screw per link.
Opposing links must be installed to interlock.
3. Press cabinets together, slide left cabinet back
to lock front frames.
4. Attach rear horizontal lock links over
appropriate rear bosses usmq 2M3.5 x 0.6 F,H.M.
screws per link.
"Locking cabinet together honzontauy In a configuration Wider thai, 1 full module Width or locking more than two sub
modules vertically IS not recommended
MADE IN USA 2/85
LABEL NO. 5958-3333
