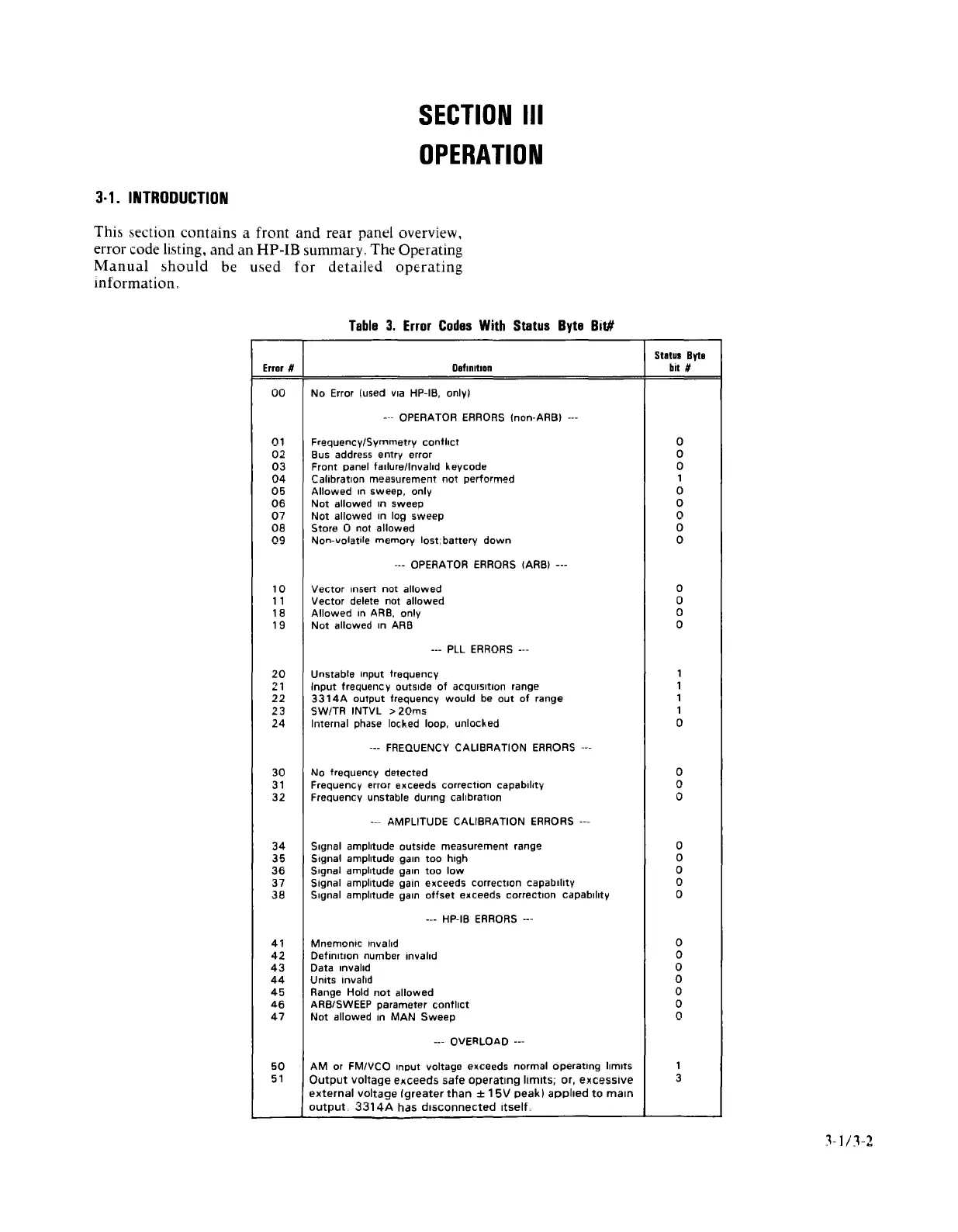

SECTION
III
OPERATION
3·1.
INTRODUCTION
This section contains a front
and
rear panel overview,
error code listing, and an HP-IB summary. The Operating
Manual
should
be
used
for
detailed
operating
information.
Table
3.
Error
Codes
With
Status
Byte
Bit#
Stetul
Byte
Error#
Definition
bit #
00
No Error (used via HP-IB,
only)
--- OPERATOR
ERRORS
(non-ARB)
---
01
Frequency/Symmetry confhct
0
02 Bus address entry error
0
03
Front panel failure/Invalid kevcode 0
04
Calibration measurement not performed
1
05
Allowed In sweep, only 0
06
Not allowed In sweep 0
07
Not allowed In log sweep 0
08
Store 0 not allowed 0
09
Non-volatile memory lost, battery
down
0
--- OPERATOR
ERRORS
(ARB) ---
10
Vector
Insert not allowed
0
11 Vector delete not allowed
0
18
Allowed
In ARB, only
0
19 Not allowed In AR8
0
--- PLL
ERRORS
---
20
Unstable Input frequency
1
21
Input frequency outside of acqursmon range
1
22
3314A
output frequency would be out of range
1
23
SW/TR INTVL
>
20ms
1
24 Internal phase locked loop, unlocked
0
---
FREQUENCY
CALIBRATION ERRORS ---
30
No frequency detected
0
31
Frequency error exceeds correction capability
0
32
Frequencv unstable dunnq calibration
0
--- AMPLITUDE CALIBRATION ERRORS ---
34
Signal amplitude outside measurement range
0
35
Signal amplitude gain too high
0
36
Signal amplitude gain too low 0
37
Signal amplitude
gain exceeds correction capability
0
38
Signal amplitude gain
offset
exceeds correction capability
0
--- HP-IB
ERRORS
---
41
MnemOniC Invalid
0
42
Definition number Invalid
0
43
Data mvahd
0
44
Units Invalid
0
45 Range Hold
not
allowed
0
46 ARB/SWEEP parameter conflict 0
47 Not allowed In MAN Sweep
0
--- OVERLOAD ---
50
AM or FMIVCO Input voltage exceeds normal operating limits
1
51
Output
voltage
exceeds
safe
operating
limits;
or,
excessive
3
external
voltage
(greater
than
±
15V
peak
I
applied
to
main
output.
3314A
has
disconnected
Itself.
To Next Page
