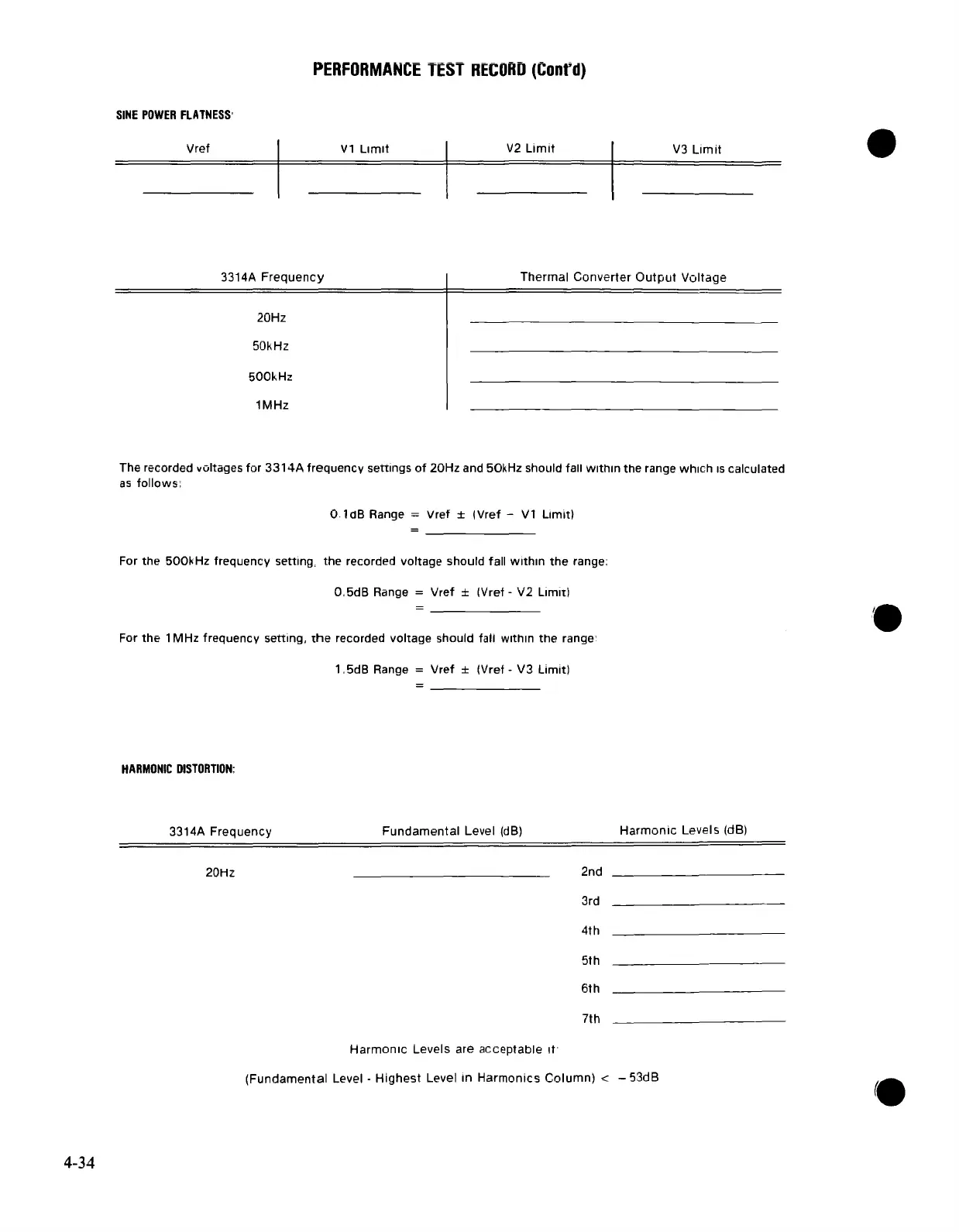

PERFORMANCE
TEST
RECORD
(Cont'd)
SINE
POWER
FLATNESS'
Vref
Vl
Limit
V2
limit
V3
Limit
3314A
Frequency
20Hz
50kHz
500kHz
lMHz
Thermal
Converter
Output
Voltage
The recorded voltages for
3314A
frequency settings of 20Hz and 50kHz should fall Within the range which IS calculated
as follows:
o 1dB Range = Vref ± IVref - V1
limit)
For the
500kHz
frequency setting, the recorded voltage should fall Within the range:
O.5dB Range = Vref ± (Vref - V2 Limit)
For the 1MHz frequency setting,
the
recorded voltage should fall Within the range'
1.5dB Range = Vref ± (Vref - V3
limit)
HARMONIC
DISTORTION:
3314A Frequency
20Hz
Fundamental
Level (dB)
Harmonic
Levels are acceptable It
2nd
3rd
4th
5th
6th
7th
Harmonic
Levels (dB)
4-34
(Fundamental
Level·
Highest
Level In Harmonics
Column)
< - 53dB
To Next Page
