3314A Frequency
50kHz

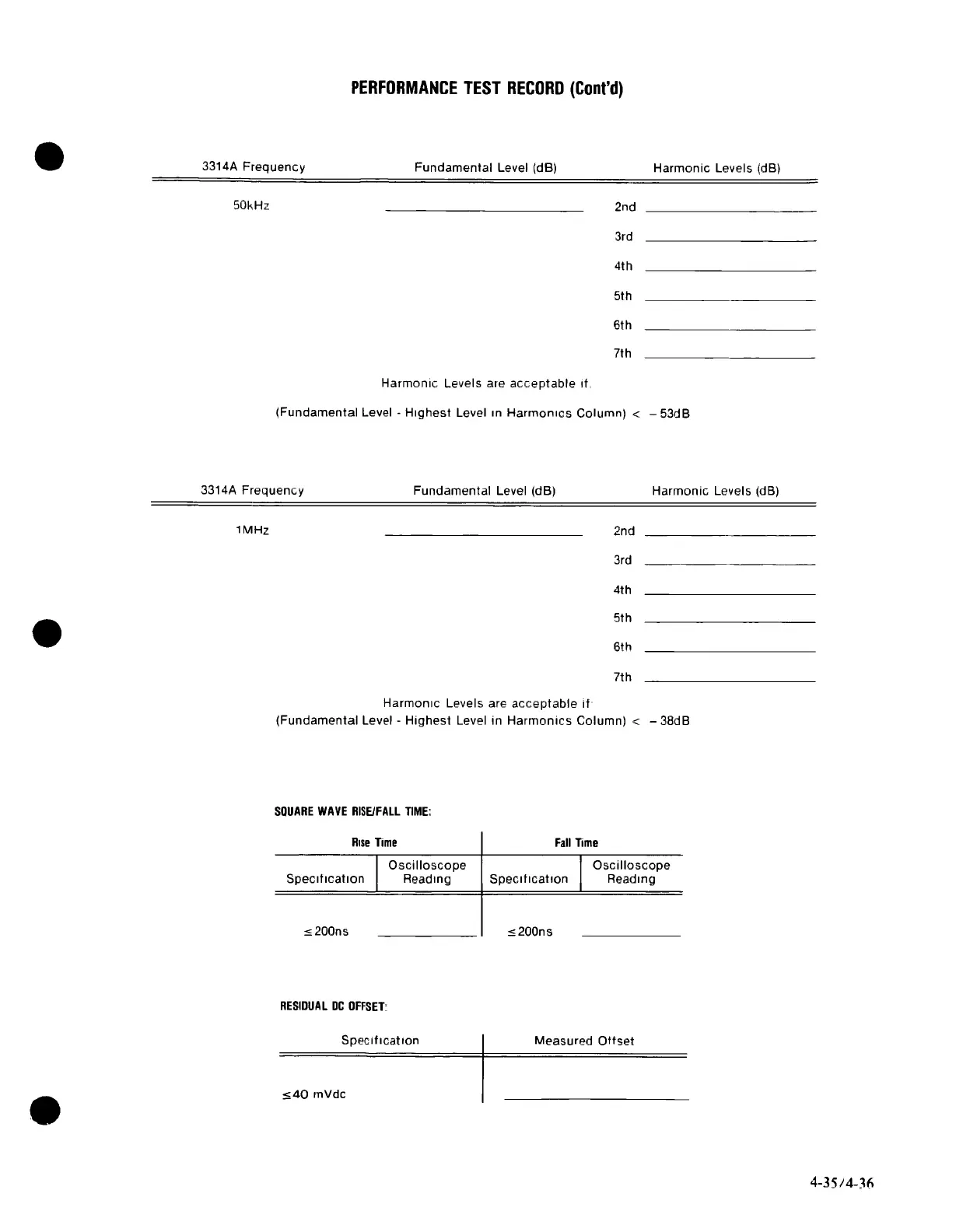

PERFORMANCE TEST RECORD (Cont'd)
Fundamental Level (dB)
2nd
3rd
4th
5th
6th
7th
Harmonic Levels are acceptable It
Harmonic Levels (dB)
(Fundamental
Level· Highest Level In Harmomcs Column) < - 53dB
3314A Frequency
1MHz
Fundamental Level (dB)
2nd
3rd
4th
5th
6th
7th
Harmonic Levels (dB)
Harmonic Levels are acceptable If
(Fundamental
Level· Highest Level In Harrnonics Column) < - 38dB
SQUARE WAVE RISE/FALL TIME:
Rise Time
Fall Time
Specification
:s 200ns
RESIDUAL DC OFFSET'
Oscilloscope
Reading Specrncanon
:s200ns
Oscilloscope
Reading
Specttrcatron
:s40 mVdc
Measured
Offset
