Section I
Equipment
3335A Service Kit
Consists of:
{2} Extender Boards
(1) Extender Board
{1} Extender Board
{1) Service Cable
{1} Service Cable
{4) SMA-to-BNC
Terminations:
50 Q Feedthru
75 Q Feedthru
Adapters:
BNC “TEE”
Conn. Adapter
{2} BNC Maie-to-Male
(2) Type N(f) to BNC (m)
(2) Type N{m) to BNC (4)
{2) BNC {f} to dual
banana plug
Thermal Converter
Double Balanced
Mixer
Attenuator
Attenuator
Attenuator
Attenuator
Digital Voltmeter
AC Voltmeter
Oscilloscope
Tracking Generator

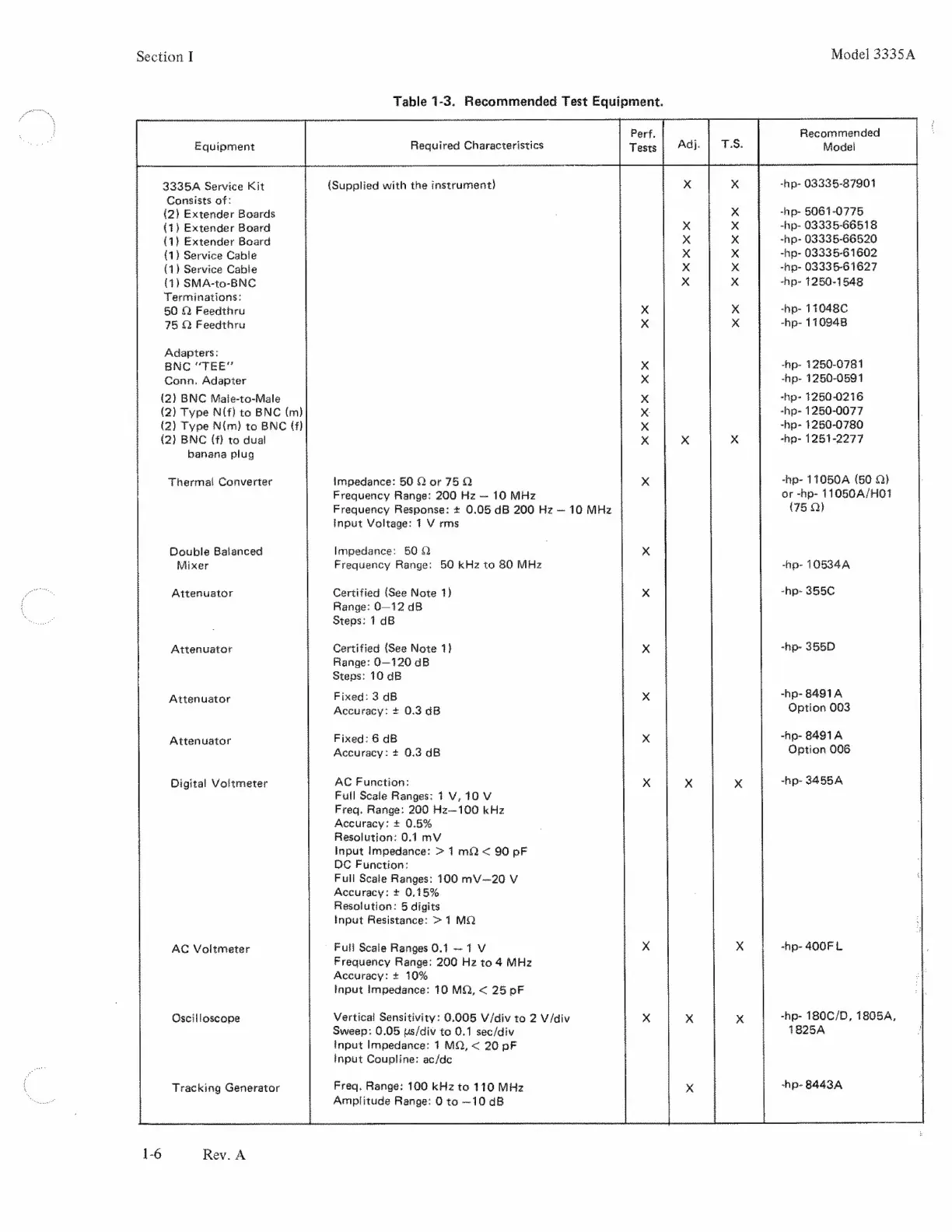

Table 1-3. Recommended Test Equipment.
Required Characteristics
{Supplied with the instrument}
impedance: 50 © or 75 Q
Frequency Range: 200 Hz — 10 MHz
Frequency Response: + 0.05 dB 200 Hz — 10 MHz
Input Voltage: 1 V rms
Impedance: 60 Q
Frequency Range: 50 kHz to 80 MHz
Certified (See Note 1)
Range: 0—12 dB
Steps: t dB
Certified (See Note 1}
Range: 0—120 dB
Steps: 10 dB
Fixed: 3 dB
Accuracy: + 0.3 dB
Fixed: 6 dB
Accuracy: + 0.3 dB
AC Function:
Full Scale Ranges: t V, 10 V
Freq. Range: 200 Hz—100 kHz
Accuracy: + 0.5%
Resolution: 0.1 mV
Input Impedance: > 1 mO < 90 pF
DC Function:
Full Scate Ranges: 100 mV—20 V
Accuracy: + 0.45%
Resolution: 5 digits
input Resistance: > 1 MQ
' Full Scale Ranges 0.1 — 1 V
Frequency Range: 200 Hz to 4 MHz
Accuracy: + 10%
Input Impedance: 10 MQ, < 25 pF
Vertical Sensitivity: 0.005 V/div to 2 V/div
Sweep: 0.05 us/div to 0.1 sec/div
input Impedance: 1 MQ, < 20 pF
input Coupline: ac/de
Freq. Range: 100 kHz to 110 MHz
Amplitude Range: 0 to —10 dB
z wn
Adj.
xXx KKK KKK X
X
Model 3335A
Recommended
Model
-hp- 03335-87901
-hp- 5061-0775
-hp- 03335-66518
-hp- 03335-66520
-hp- 03335-61602
-hp- 03335-61627
-hp- 1250-1548
-hp- 11048C
-hp- 11094B
-hp- 1250-0781
-hp- 1250-0501
-hp- 1250-0216
-hp- 1250-0077
-hp- 1250-0780
-hp- 1251-2277
-hp- 11050A (50 Q}
or -hp- 11050A/HO1
(75 Q}
-hp- 10534A
-hp- 355C
-hp- 355D
-hp- 8491A
Option 003
-hp- 8491A
Option 006
-hp- 3455A
-hp- 400F L
-hp- 180C/D, 18054,
1825A
hp- 8443A
