Model 3335A
Equipment
Spectrum Analyzer
Spectrum Analyzer
Wave Analyzer
Amplifier
Quartz Frequency
Standard
Universal Counter
Power Meter
Power Sensor
1 MHz LPF
Synthesizer
Power Supply
(2) Cables
(2) Cables
{2} Cables
Active Probe

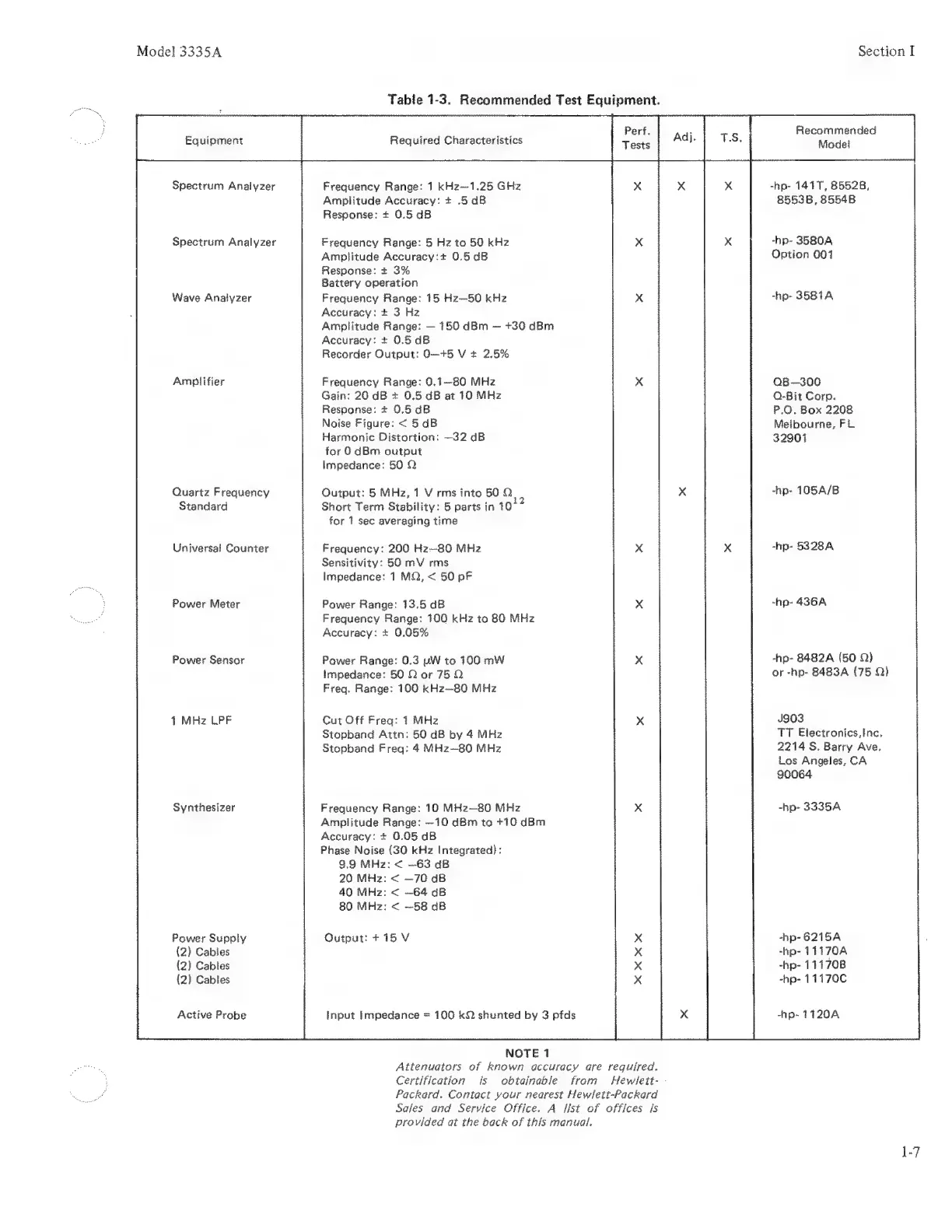

Table 1-3, Recommended Test Equipment.
Required Characteristics
Frequency Range: 1 kHz—1.25 GHz
Amplitude Accuracy: + .6 dB
Response: + 0.5 dB
Frequency Range: 5 Hz to 50 kHz
Amplitude Accuracy:+ 0.5 dB
Response: + 3%
Battery operation
Frequency Range: 15 Hz—50 kHz
Accuracy: + 3 Hz
Amplitude Range: — 150 dBm — +30 dBm
Accuracy: + 0.5 dB
Recorder Output: 0—+5 V + 2.5%
Frequency Range: 0.1~80 MHz
Gain: 20 dB + 0.5 dB at 10 MHz
Response: + 0.5 dB
Noise Figure: < 5 dB
Harmonic Distortion: —32 dB
for 0 dBm output
Impedance: 50 Q
Output: 5 MHz, 1 V rms into 60 Q
Short Term Stability: 5 parts in 10
for 1 sec averaging time
12
Frequency: 200 Hz—80 MHz
Sensitivity: 56 mV rms
Impedance: 1 MQ, < 50 pF
Power Range: 13,5 dB
Frequency Range: 100 kHz to 80 MHz
Accuracy: + 0.05%
Power Range: 0.3 uW to 100 mW
impedance: 50 Qor 75 Q
Freq, Range: 100 KHz—80 MHz
Cut Off Freq: 1 MHz
Stopband Attn: 50 dB by 4 MHz
Stopband Freq: 4 MHz—80 MHz
Frequency Range: 10 MHz—80 MHz
Amplitude Range: —10 dBm to +10 dBm
Accuracy: + 0.05 dB
Phase Noise (30 kHz Integrated):
9.9 MHz: < —63 dB
20 MHz: < —70 dB
40 MHz: < —64 dB
80 MHz: < --58 dB
Output: + 15 V
Input Impedance = 100 kf? shunted by 3 pfds
NOTE 1
Attenuators of known accuracy are required.
Certification is obtainable from Hewlett-
Packard. Contact your nearest Hewlett-Packard
Safes and Service Office. A list of offices is
provided at the back of this manual.
Section |
Adj. Recommended
Model
-hp- 141T, 85528,
8553B, 8554B
X -hp- 3580A
Option 001
-hp- 3581A
OB—306
O-Bit Corp.
P.O. Box 2208
Melbourne, FL
32901
x -hp- 105A/B
x -hp- 5328A
-hp- 436A
-hp- 8482A (50 Q)
or -hp- 8483A (75 Q)
J903
TT Electronics, ine,
2214 S. Barry Ave,
Los Angeles, CA
90064
-hp- 3335A
-hp- 8215A
-hp- 11170A
-hp- 111708
-hp- 11170C
x -hp- 1120A
1-7
