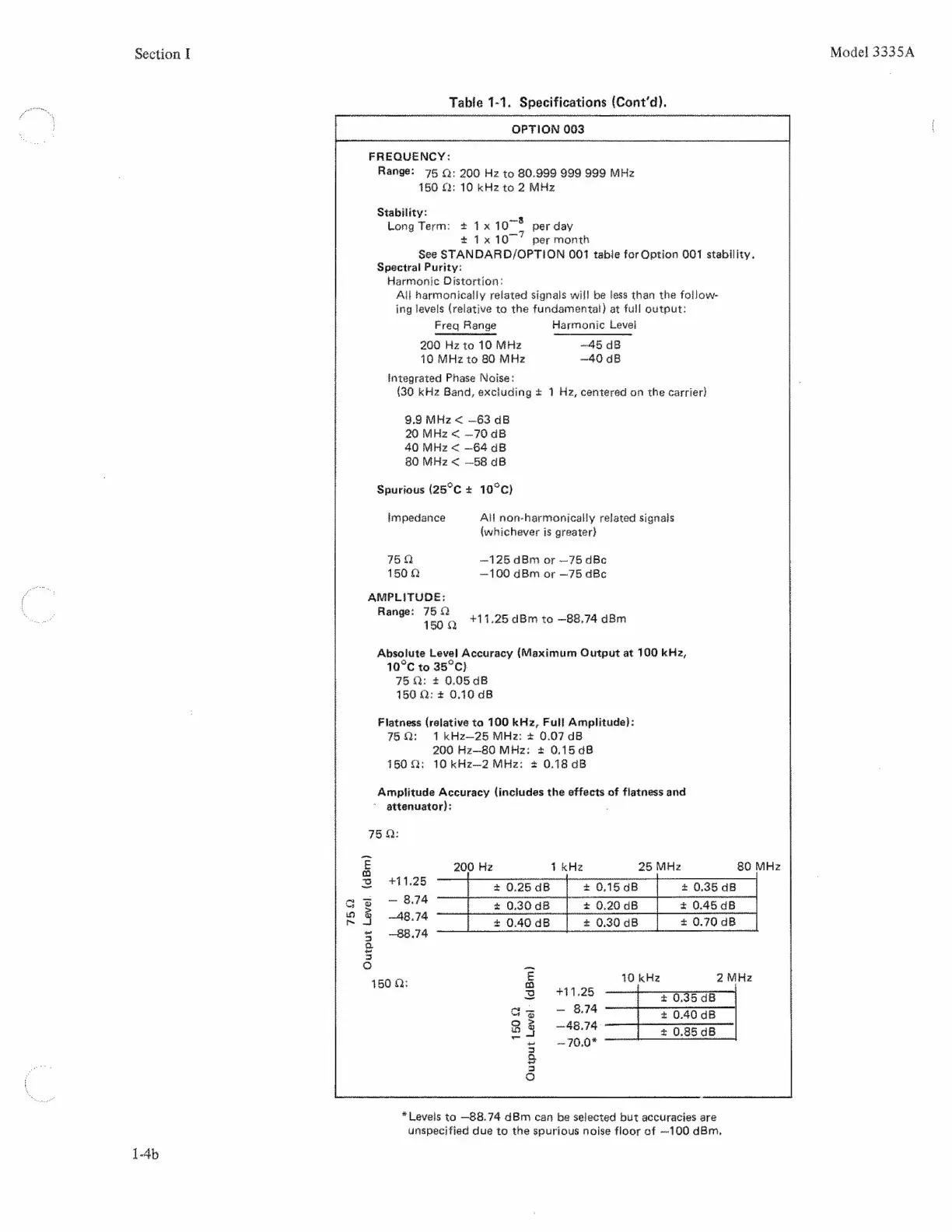

Tabie 1-1. Specifications (Cont'd).
OPTION 063
FREQUENCY:
Range: 75 Q: 200 Hz to 80.999 999 999 MHz
150 Q: 10 kHz to 2 MHz
Stability: i
Long Term: + 41x 107” per day
+ 1x 107° per month
See STANDARD/OPTION 001 table for Option 001 stability.
Spectral Purity:
Harmonic Distortion:
All harmonically related signals will be less than the follow-
ing levels (relative to the fundamental} at full output:
Freg Range Harmonic Levei
200 Hz to 10 MHz ~45 dB
10 MHz to 80 MHz —40 dB
integrated Phase Noise:
{30 kHz Band, excluding + 1 Hz, centered on the carrier)
9.9 MHz < ~—63 dB
20 MHz < —70 dB
40 MHz < —64 dB
80 MHz < —58 dB
Spurious (25°C + 10°C)
impedance AH non-harmonically related signals
{whichever is greater}
759 —125 dBm or —75 dBe
150 Q -100 dBm or —75 dBc
AMPLITUDE:
Range: 75 Q
150 Q +11.25 dBm to —88,74 dBm
Absolute Level Accuracy (Maximum Output at 100 kHz,
10°C to 35°C}
75 Q: + 0.05 dB
150 Q: + 0.10 dB
Flatness (relative to 100 kHz, Full Amplitude):
75 Q; 1 kHz--25 MHz: + 0.07 dB
200 Hz—80 MHz: + 0.15 dB
760 Q: 10 kHz—-2 MHz: + 0.18 dB
Amplitude Accuracy {includes the effects of flatness and
` attenuator):
75 Q:
200 Fiz 1 kHz 25 MHz 80 MHz
+ 0.25 dB + 0.15 dB & 0.35 dB
t 0.30 dB + 0,20 dB 4 0.45 dB
+41,.25
— 8.74
759
Output Level. (dBm)
48.74 + 0.40 dB + 0.30 dB z 0.70 dB
-88.74
] Ẹ 10 kHz 2 MHz
ie S 411.25
g 3 — 8,74
a see = 0.85 0B
Zo 7008
pa
a
=
Oo
*Levels to -88.74 dBm can he selected but accuracies are
unspecified due to the spurious noise floor of ~100 dBm,
