HP 3400A Service Manual

Model 3400A
Calibrator
Output (V)
o00
CO00000W4000¢
WHF We om ooaonnaniun S20000
FLUKE 760A
METER CALIBRATOR

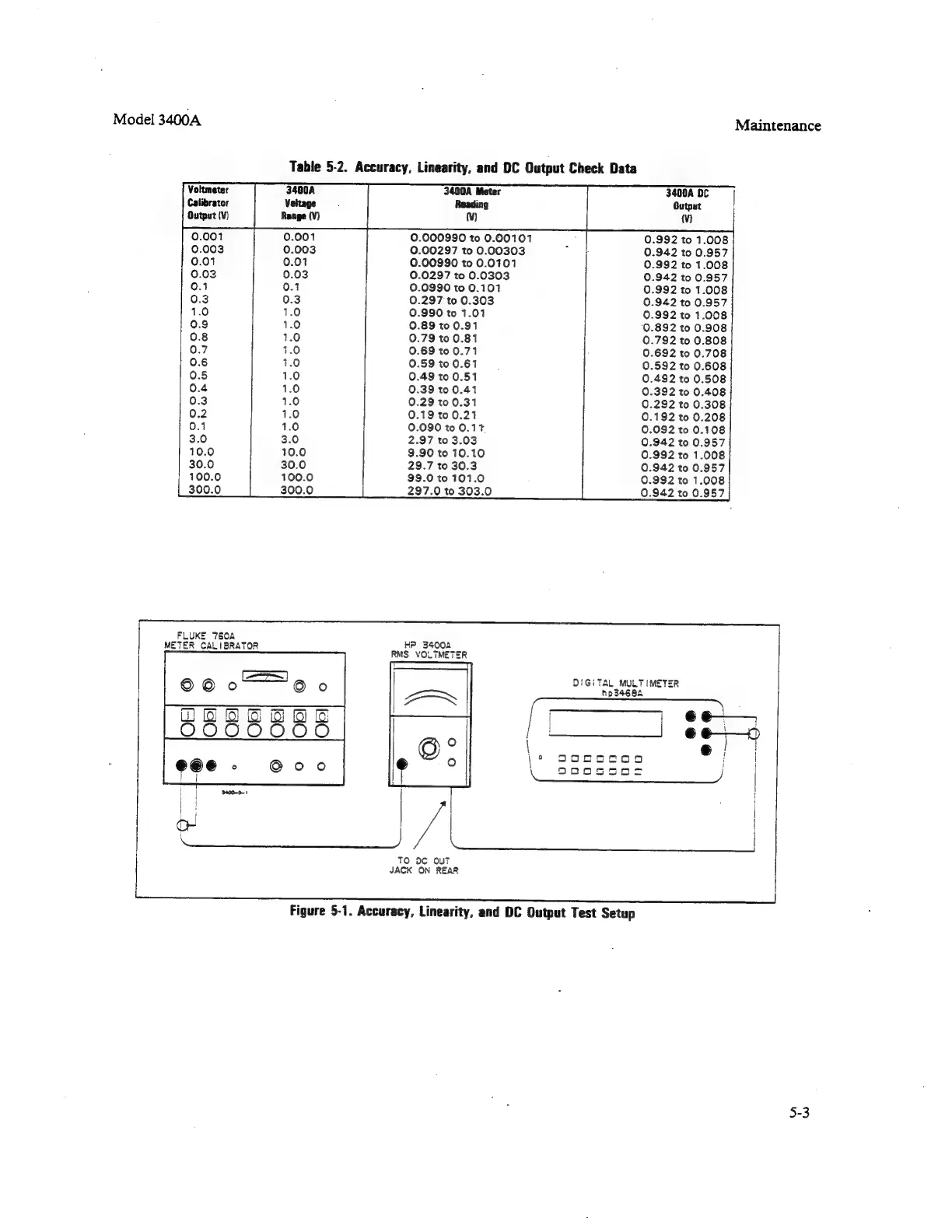

Table 5-2. Accuracy, Linearity, and DC Output Check Data
Reading
0.000990 to 0.00101
0.00297 to 0.00303
0.00990 to 0.0101
0.0297 to 0.0303
0.0990 to 0.101
0.297 to 0.303
0.990 to 1.01
0.89 to 0.91
0.79 to 0.81
0.69 to 0.71
0.59 to 0.617
0.49 to 0.51
0.39 to 0.41
0.29 t0 0.31
0.19 to 0.21
0.090 to 0.1T
2.97 to 3.03
9.90 to 10.10
29.7 to 30.3
99.0 to 101.0
297.0 to 303.0
HP 34004
RMS VOLTMETER
Figure
5-1.
Accuracy,
Linearity,
and
DC
Output
Test
Setup
3400A OC
Output
(V)
0.992 to 1.008
0.942 to 0.957
0.992 to 1.008
0.942 to 0.957
0.992 to 1.008
0.942 to 0.957
0.992 to 1.008
0.892 to 0.908
0.792 to 0.808
0.692 to 0.708
0.592 to 0.608
0.492 to 0.508
0.392 to 0.408
0.292 to 0.308
0.192 to 0.208
0.092 to 0.108
0.942 to 0.957
0.992 to 1.008
0.942 to 0.957
0.992 to 1.008
0.942 to 0.957
DIGITAL MULTIMETER
np34684
9ogccoqo0
\ So0o0osgssor j
TO OC OUT
JACK ON REAR
Maintenance
5-3
