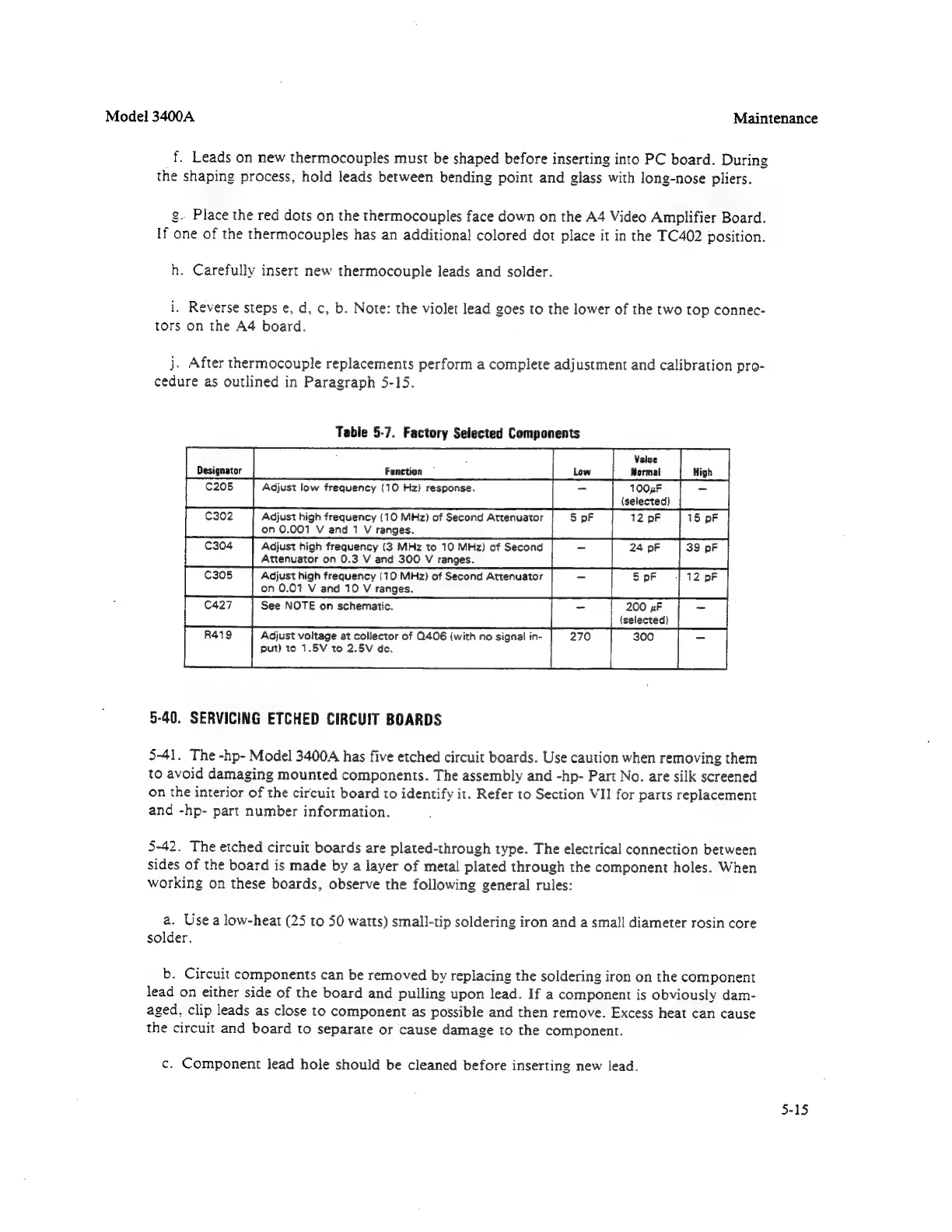

Model 3400A
f.
Leads
on
new
thermocouples
must
be
shaped
before
inserting
into
PC
board.
During
the
shaping
process,
hold
leads
between
bending
point
and
glass
with
long-nose
pliers.
g.
Place
the
red
dots
on
the
thermocouples
face
down
on
the
A4
Video
Amplifier
Board.
If
one
of
the
thermocouples
has
an
additional
colored
dot
place
it
in
the
TC402
position.
h.
Carefully
insert
new
thermocouple
leads
and
solder.
i.
Reverse
steps
e,
d,
c,
b.
Note:
the
violet
lead
goes
to
the
lower
of
the
two
top
connec-
tors
on
the
A4
board.
j.
After
thermocouple
replacements
perform
a
complete
adjustment
and
calibration
pro-
cedure
as
outlined
in
Paragraph
5-15.
Table
5-7.
Factory
Selected
Components
eee
eee
Pe
C205
Adjust
low
frequency
(10
Hz)
response.
100pF
(selected)
C302
Adjust
high
frequency
(10
MHz)
of
Second
Attenuator
12
pF
15
pF
on
0.001
V
and
1
V
ranges.
C304
Adjust
high
frequency
(3
MHz
to
10
MHz)
of
Second
24
pF
39
pF
Attenuator
on
0.3
V
and
300
V
ranges.
C305
Adjust
high
frequency
(10
MHz)
of
Second
Attenuator
on
0.01
V
and
10
V
ranges.
moe
pe
a
oe
meee
NOTE
on
schematic.
200
pF
Eee
9
[pala
tenies
ae
voltage
at
collector
of
Q406
(with
no
signal
in-
put)
to
1.5V
to
2.5V
de.
5-40.
SERVICING
ETCHED
CIRCUIT
BOARDS
41.
The
-hp-
Model
3400A
has
five
etched
circuit
boards.
Use
caution
when
removing
them
to
avoid
damaging
mounted
components.
The
assembly
and
-hp-
Part
No.
are
silk
screened
on
the
interior
of
the
circuit
board
to
identify
it.
Refer
to
Section
VII
for
parts
replacement
and
-hp-
part
number
information.
5-42.
The
etched
circuit
boards
are
plated-through
type.
The
electrical
connection
between
sides
of
the
board
is
made
by
a
layer
of
metal
plated
through
the
component
holes.
When
working
on
these
boards,
observe
the
following
general
rules:
a.
Use
a
low-heat
(25
to
50
watts)
small-tip
soldering
iron
and
a
smal!
diameter
rosin
core
solder.
b.
Circuit
components
can
be
removed
by
replacing
the
soldering
iron
on
the
component
lead
on
either
side
of
the
board
and
pulling
upon
lead.
If
a
component
is
obviously
dam-
aged,
clip
leads
as
close
to
component
as
possible
and
then
remove.
Excess
heat
can
cause
the
circuit
and
board
to
separate
or
cause
damage
to
the
component.
c.
Component
lead
hole
should
be
cleaned
before
inserting
new
lead.
Maintenance
