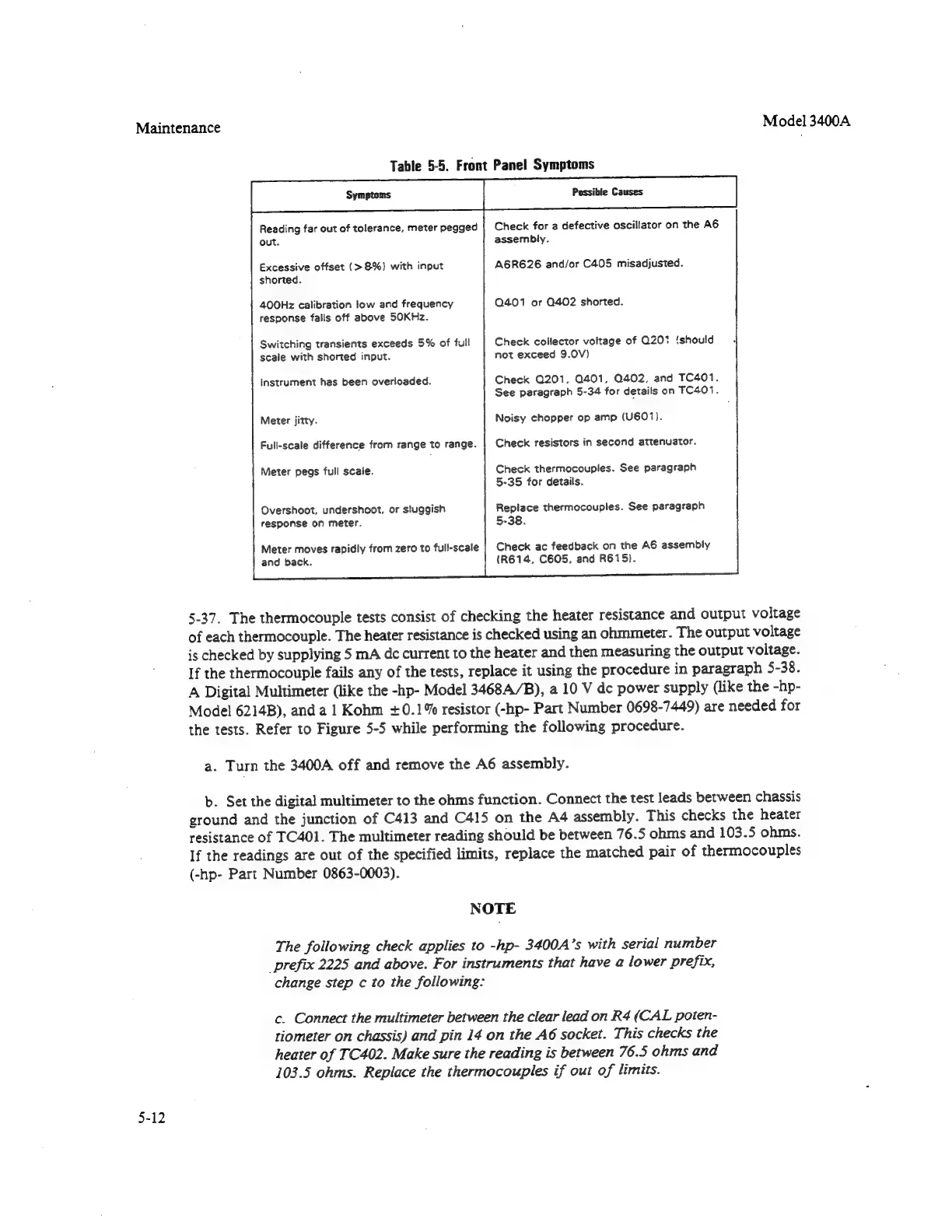

Maintenance
Table
5-5.
Front
Panel
Symptoms
Check
for
a
defective
oscillator
on
the
A6
assembly.
Reading
far
out
of
tolerance,
meter
pegged
out.
Excessive
offset
(>8%)
with
input
A6R626
and/or
C405
misadjusted.
shorted.
Q401
or
Q402
shorted.
400Hz
calibration
low
and
frequency
response
falls
off
above
50KHz.
Check
collector
voltage
of
Q2Z01
‘should
not
exceed
9.0V)
Switching
transients
exceeds
5%
of
full
scale
with
shorted
input.
Check
Q201,
Q401,
Q402,
and
TC401.
See
paragraph
5-34
for
details
on
TC401.
Instrument
has
been
overloaded.
Noisy
chopper
op
amp
(U601).
Meter
jitty.
Check
resistors
in
second
attenuator.
Full-scale
difference
from
range
to
range.
Check
thermocouples.
See
paragraph
5-35
for
details.
Meter
pegs
full
scale.
Replace
thermocouples.
See
paragraph
5-38.
Overshoot,
undershoot,
or
sluggish
response
on
meter.
Check
ac
feedback
on
the
A6
assembly
(R614,
C605,
and
R615).
Meter
moves
rapidly
from
zero
to
full-scale
and
back.
Model
3400A
5-37.
The
thermocouple
tests
consist
of
checking
the
heater
resistance
and
output
voltage
of
each
thermocouple.
The
heater
resistance
is
checked
using
an
ohmmeter.
The
output
voltage
is
checked
by
supplying
5
mA
dc
current
to
the
heater
and
then
measuring
the
output
voltage.
If
the
thermocouple
fails
any
of
the
tests,
replace
it
using
the
procedure
in
paragraph
5-38.
A
Digital
Multimeter
(like
the
-hp-
Model
3468A/B),
a
10
V
de
power
supply
(like
the
-hp-
Model
6214B),
and
a
1
Kohm
+0.1%
resistor
(-hp-
Part
Number
0698-7449)
are
needed
for
the
tests.
Refer
to
Figure
5-5
while
performing
the
following
procedure.
a.
Turn
the
3400A
off
and
remove
the
A6
assembly.
b.
Set
the
digital
multimeter
to
the
ohms
function.
Connect
the
test
leads
between
chassis
ground
and
the
junction
of
C413
and
C415
on
the
A4
assembly.
This
checks
the
heater
resistance
of
TC401.
The
multimeter
reading
should
be
between
76.5
ohms
and
103.5
ohms.
If
the
readings
are
out
of
the
specified
limits,
replace
the
matched
pair
of
thermocouples
(-hp-
Part
Number
0863-0003).
5-12
NOTE
The
following
check
applies
to
-hp-
3400A’s
with
serial
number
_prefix
2225
and
above.
For
instruments
that
have
a
lower
prefix,
change
step
c
to
the
following:
c.
Connect
the
multimeter
between
the
clear
lead
on
R4
(CAL
poten-
tiometer
on
chassis)
and
pin
14
on
the
A6
socket.
This
checks
the
heater
of
TC402.
Make
sure
the
reading
is
between
76.5
ohms
and
103.5
ohms.
Replace
the
thermocouples
if
out
of
limits.
