Replaceable Parts Model 3400A
SED AAER EOS A SALTY Ore
POE ELAN
ms
tindexiRef
Number
2360-0115 Screws 6-32 .312 Lock Pozi
0590-0052 Nut-Sheet Metal .STH
5040-0700 Hinge
03400-00601 Amplifier Shield
03400-66503 Amplifier Board
2360-0201 Screw 6-32 .5 Pozi
2190-0006 Washer Lock
3050-0066 Washer Fiat
3050-0005 Washer Shoulder Fiber
3050-0003 Washer Flat Fiber
1200-0041 Transistor Socket
0340-0580 Transistor insulator
0624-0034 Screw 6-20 Phillips
2190-0008 Washer Lock
03400-66515 Power Supply Board
03400-00103 Chassis Rear
5020-0700 Spacer % Module
2360-0113 Screw 6-32 .25 Lock Pozi
9100-4362 Power Transformer
03400-66512 Chopper Amplifier Board
03400-00101 Chassis Main
03400-61602 Cable Assembly-Chopper Input
NVODWODNHIOMDWAWHAWMNO-ONWOWA
MSA oeeNwWwwW PPNNN GHB SOo so pNWw

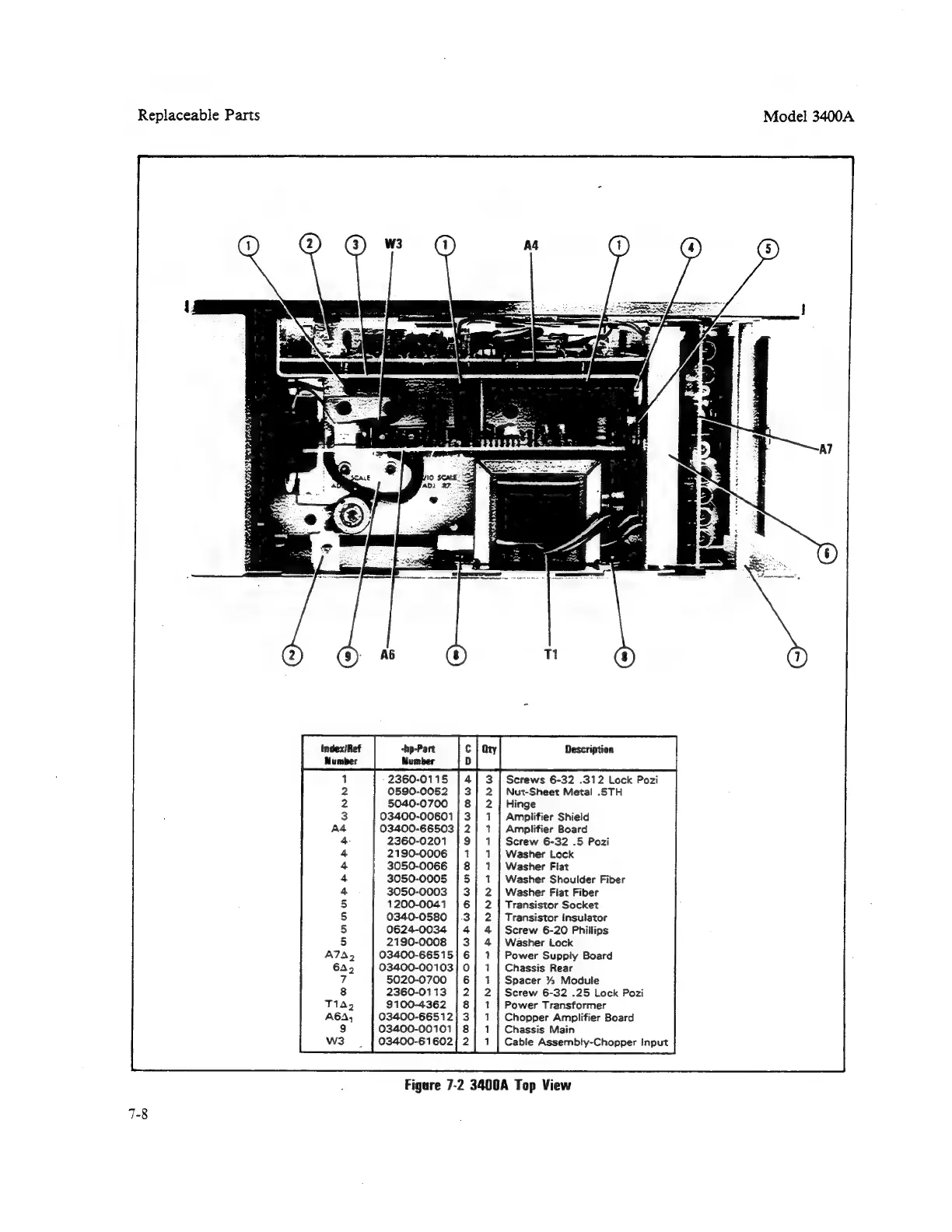

Figure 7-2 3400A Top View
