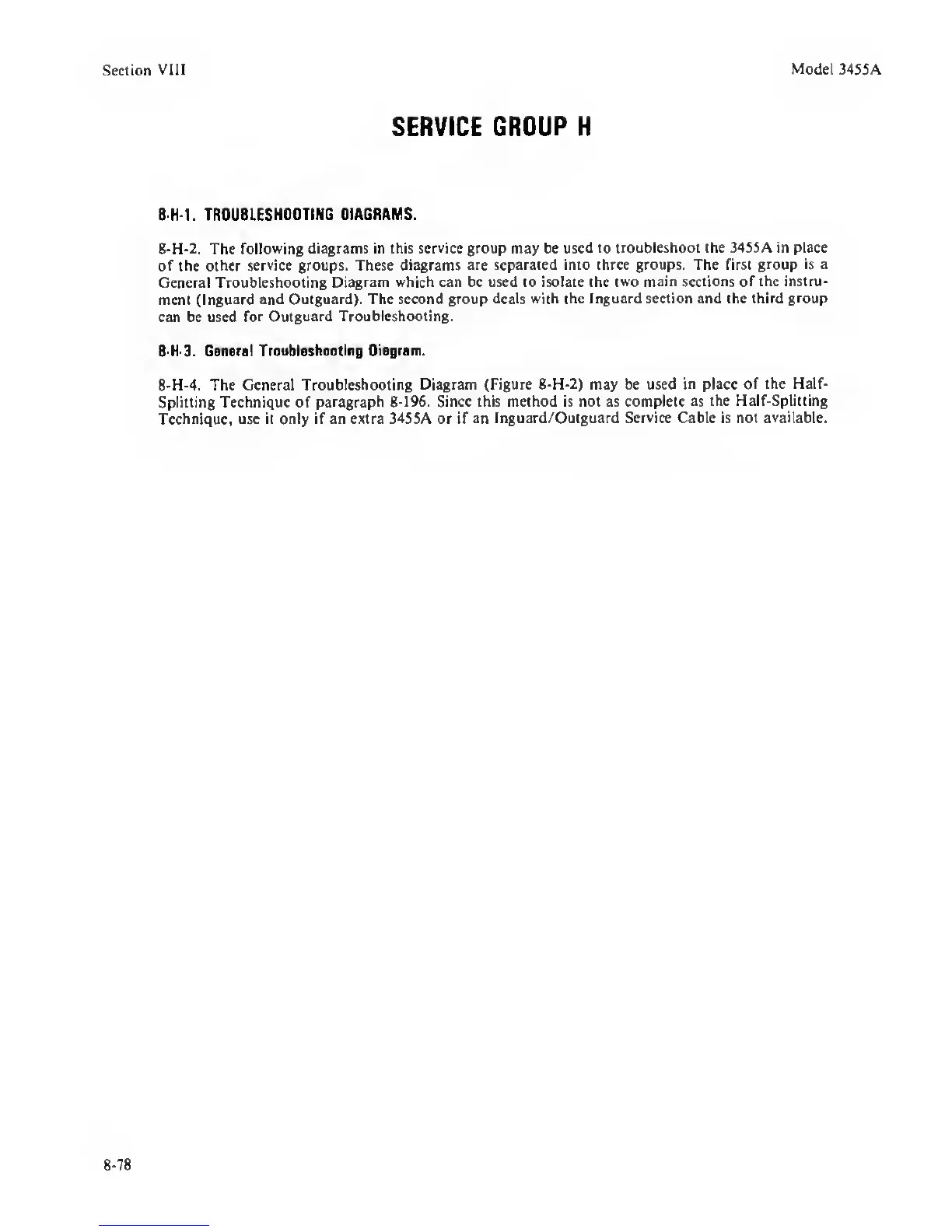

Section
VIII
Model 34S5A
SERVICE
GROUP
H
B H-1.
TROUBLESHOOTING DIAGRAMS.
8-H-2. The
following diagrams in this
service
group may be used to
troubleshoot the 34SSA in place
of
the other
service groups. These
diagrams are separated into three groups. The first group is
a
General Troubleshooting
Diagram which can be used to isolate the
two main sections of (he instru-
ment (Inguard
and Ouiguard). The second group
deals with
the
Inguard section and the third
group
can be used for
Outguard Troubleshooting.
8-H-3. General
Troubleshooting Diagram.
8-H-4. The General Troubleshooting
Diagram (Figure 8-H-2) may be used in place
of the Half-
Splitting Technique of
paragraph
8-196.
Since this method is not as complete
as the Half-Splitting
Technique, use it only if an extra 34SSA or if an
Inguard/Outguard Service Cable is not
available.
8-78
