102 Printer maintenance ENWW

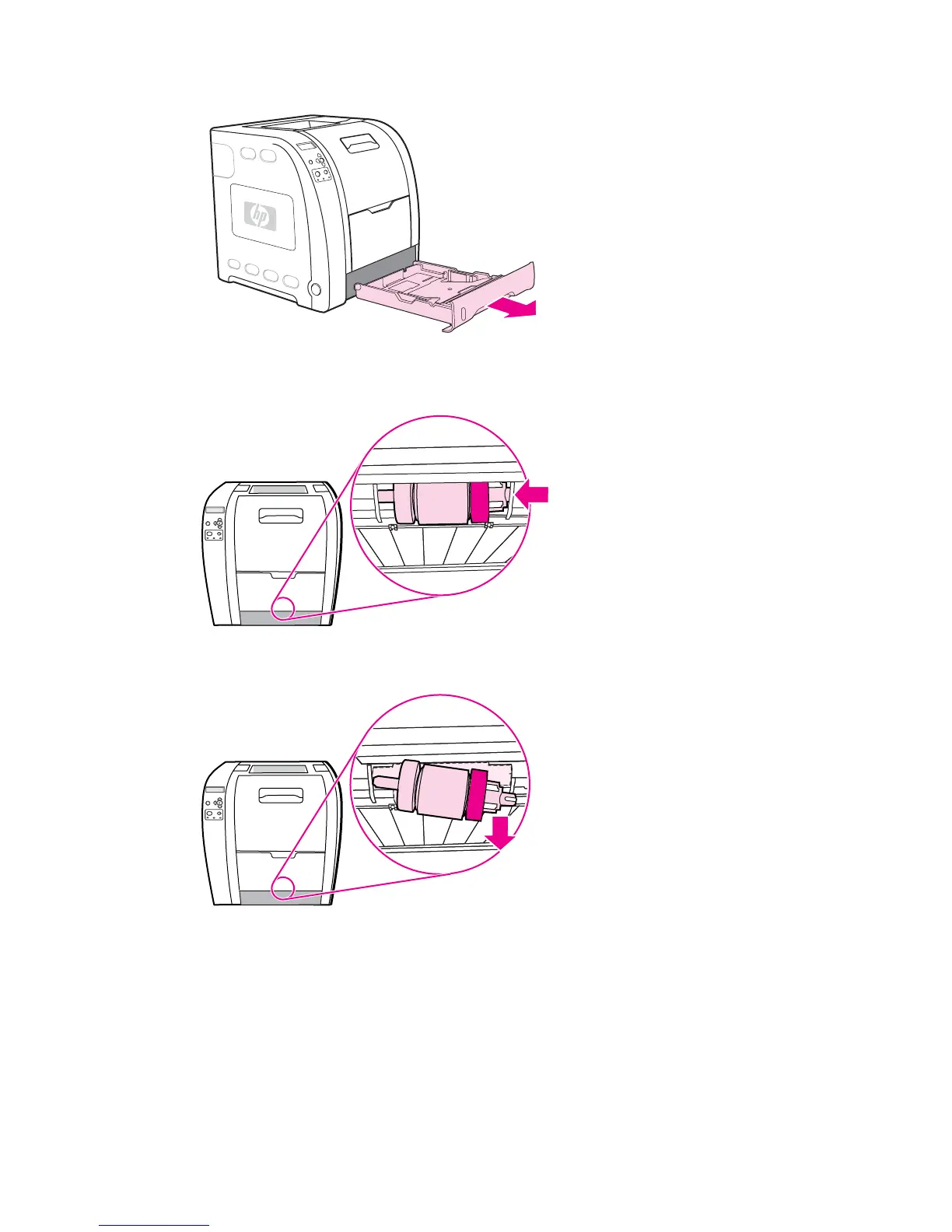

1 Remove Tray 2 and place it on a flat surface.
2 Use one finger to push on the blue side of the pickup roller until the peg comes out of the right
hole.
3 Pull down gently on the pickup roller to remove the left peg of the pickup roller from the printer.
