108 Theory of operation ENWW
Power-on sequences
The figure below shows the sequence from the time the power is switched on until STBY period.

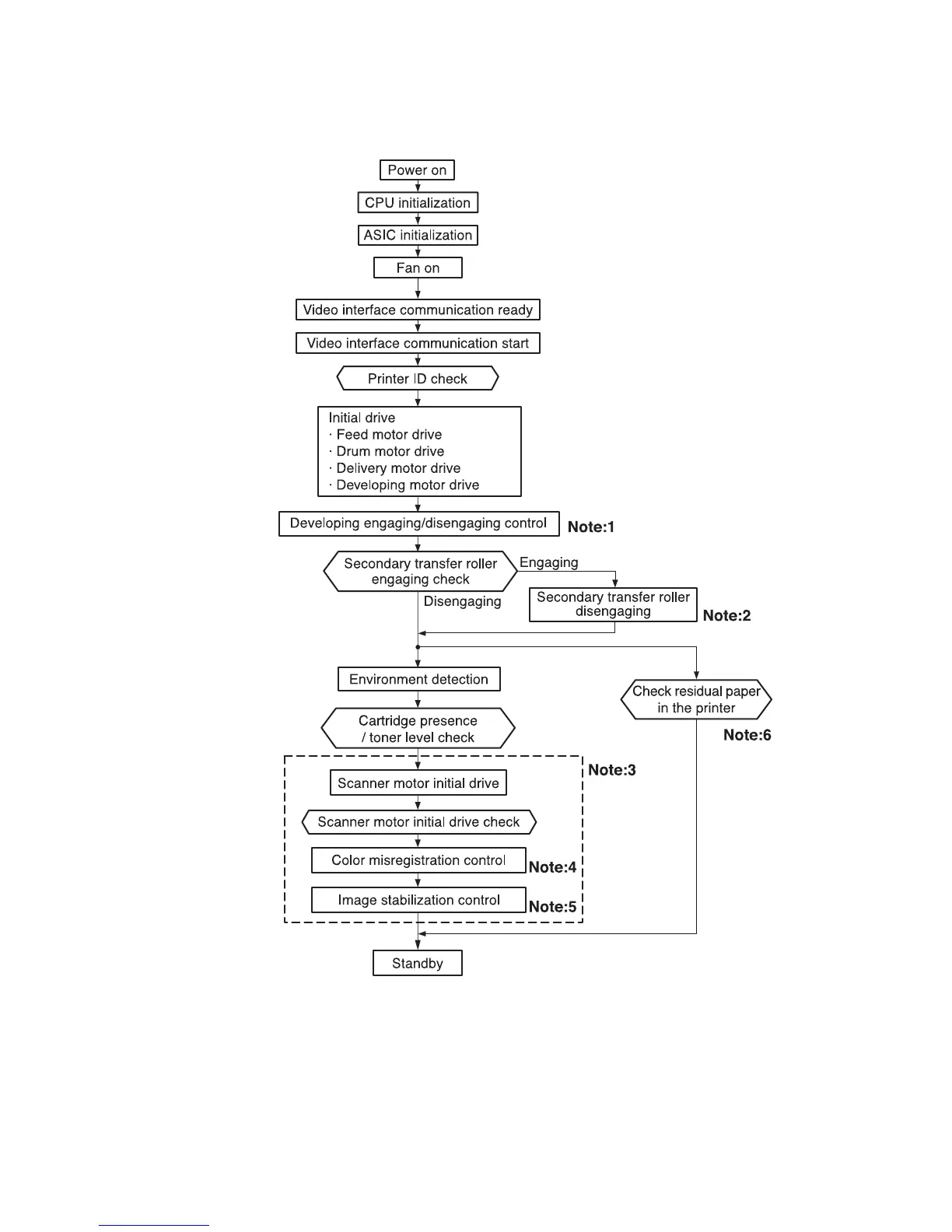

Figure 5-2 Power-on sequence
Figure notes
1 See Developing engaging/disengaging unit, later in this chapter.
