ENWW Engine control system 127
8 The DC controller re-feeds the paper after a specified time from /TOP signal output and
transfers the toner image from the ITB onto the paper. This aligns the leading edge of the
paper and the top of the image.
9 The paper, having had the toner image fixed on it, is delivered to the delivery tray when the
print is completed.
Printing continues when the DC controller receives another print command from the formatter
during the first print.
See Image formation system and Pickup/feed system.
Video interface signals

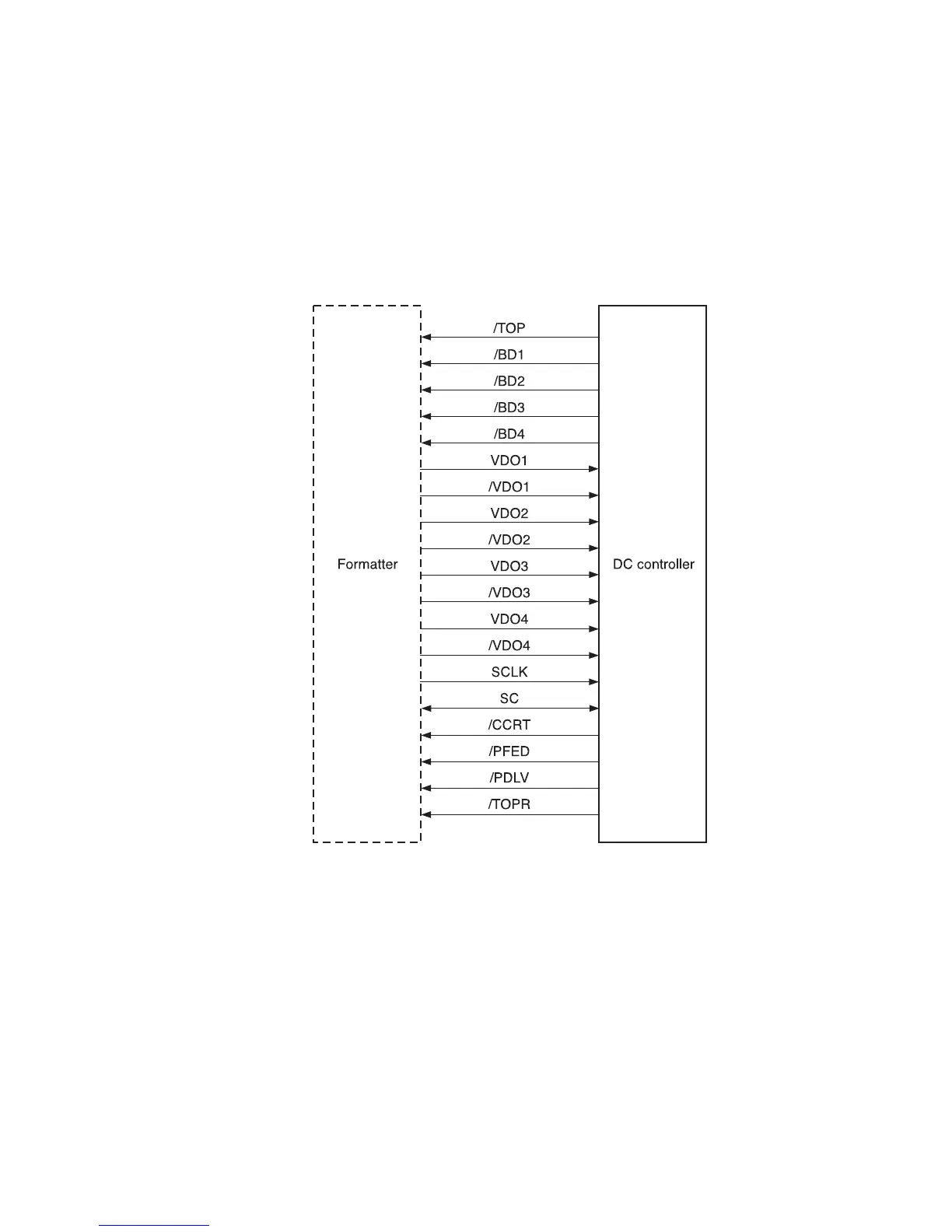

Figure 5-16 Video interface signals
