HP 3500 Series

ENWW Image formation system 159

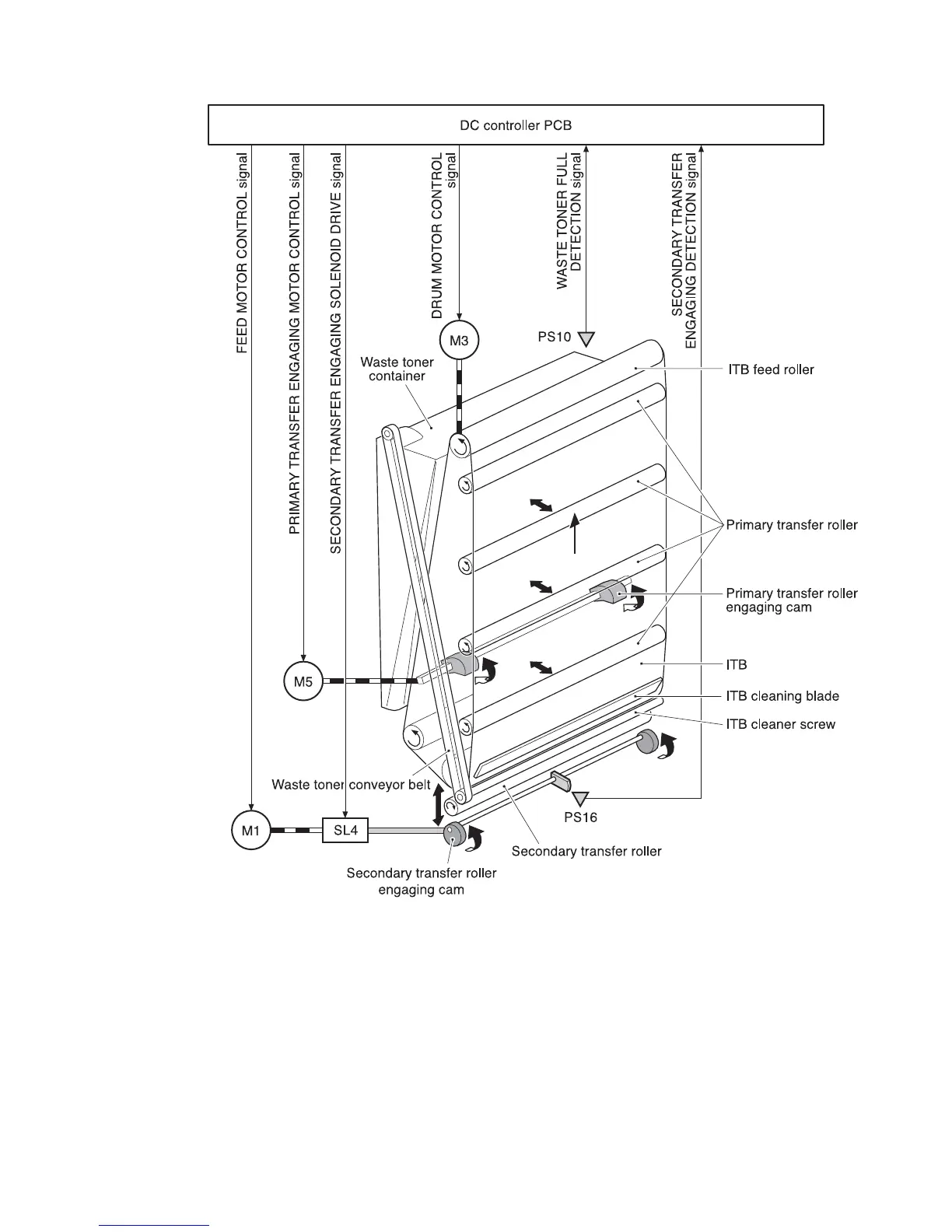

Figure 5-43 Transfer section
● M1: Feed motor ● SL4: Secondary transfer engaging solenoid
● M3: Drum motor ● PS10: Waste toner full sensor
● M5: Primary transfer
engaging motor
● PS16: Secondary transfer roller engaging sensor
