ITB cleaning control
This controls the removal of the residual toner from the ITB to prevent an image defect.
The following is the sequence of this control.
1 The cleaning blade on the ITB is always in contact with the ITB and scraping the residual toner
off the ITB. (See callout A in figure ITB cleaning control, below.)
2 The toner scraped off the ITB is transferred onto the waste toner conveyor belt by the ITB
cleaning screw.
3 The waste toner is delivered to the waste toner container, sitting inside the ribs of the conveyor
during transfer. (See callouts B and C in figure ITB cleaning control, below.)

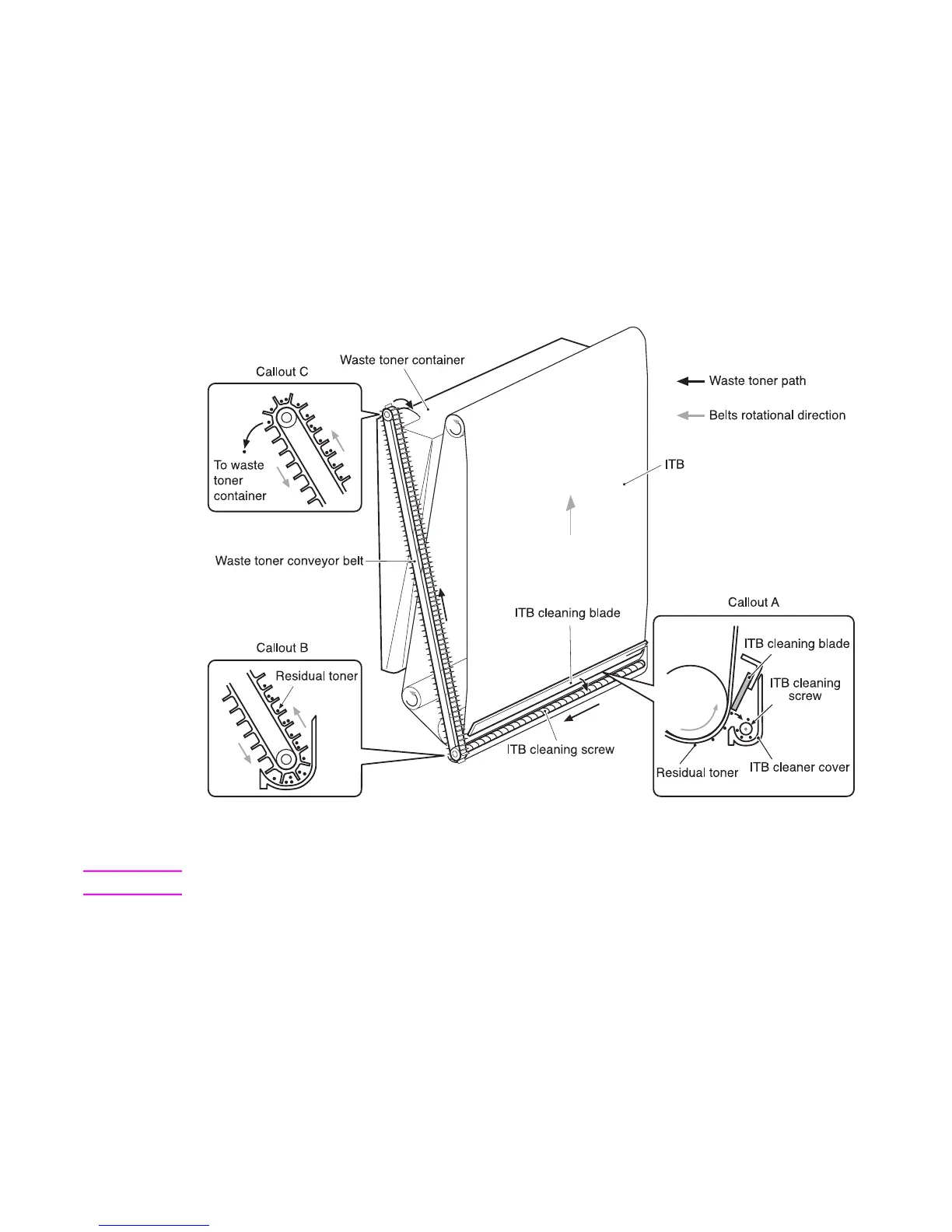

Figure 5-44 ITB cleaning control
Note No bias is applied during the ITB cleaning control.
