270 Removal and replacement ENWW

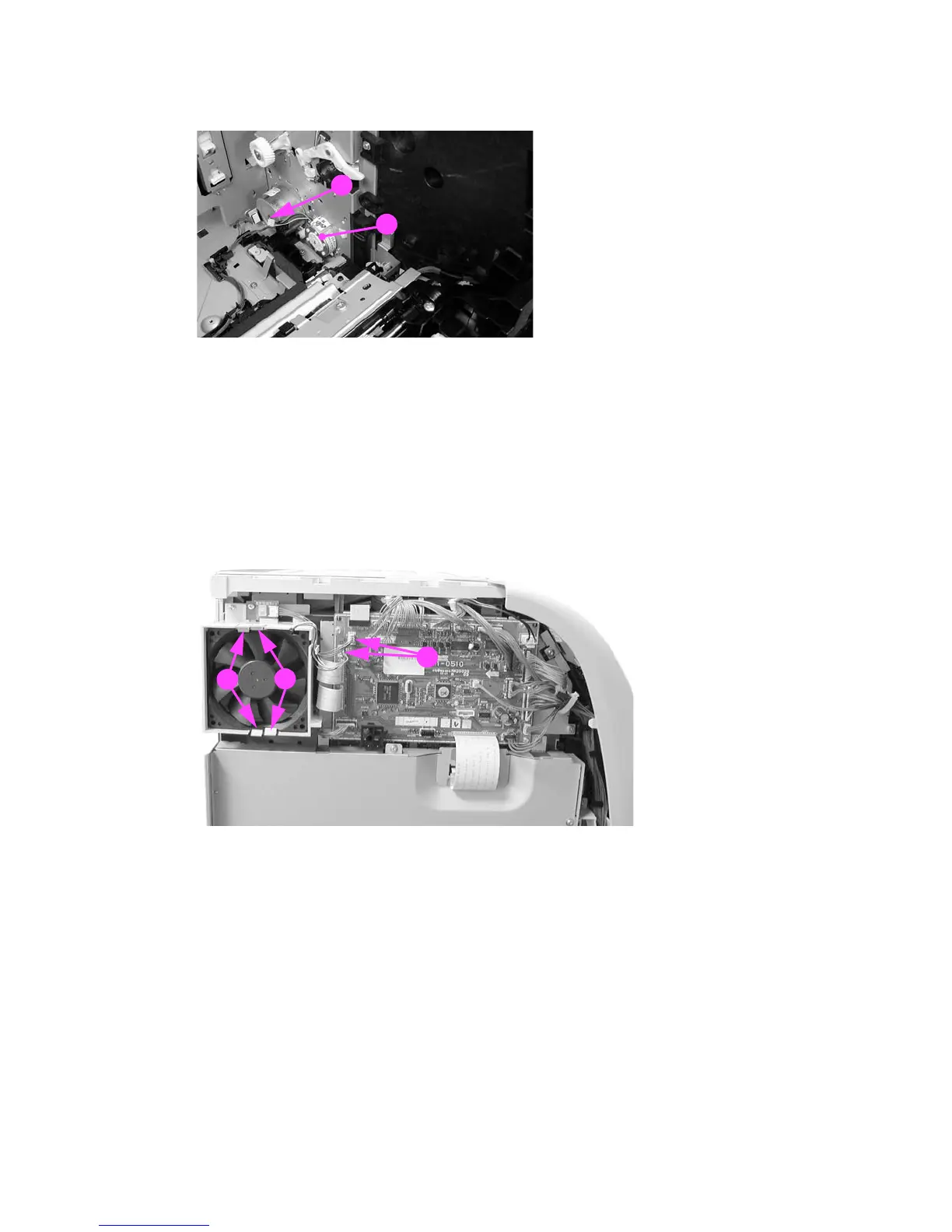

9 Disconnect one connector (1) and lift the primary transfer roller engaging motor (2) up slightly,
and then pull it to the left to remove it.
Figure 6-113 Transfer roller engaging motor (4 of 4)
Exhaust fan (FAN1) removal
1 Remove the left cover. See Left cover removal.
2 Remove two connectors (1) from the DC controller PCB.
3 Unhook four claws (2) and pull the fan motor (3) out to remove it.
Figure 6-114 Fan removal
Reassembly note: Be sure the arrow on the fan points to the outside when reinstalling the
exhaust fan.
1
2
2
2
1
