ENWW Motor and fans 269
5 Remove the one screw (1) from the rear swing guide rail (2) and remove the rail.
6 Pull gear (3) and its shaft out to the left.
7 Remove the motor cover (4) by pressing down on the tab (5) while pulling the cover slightly to
the left and up, then pull it and out to remove it.

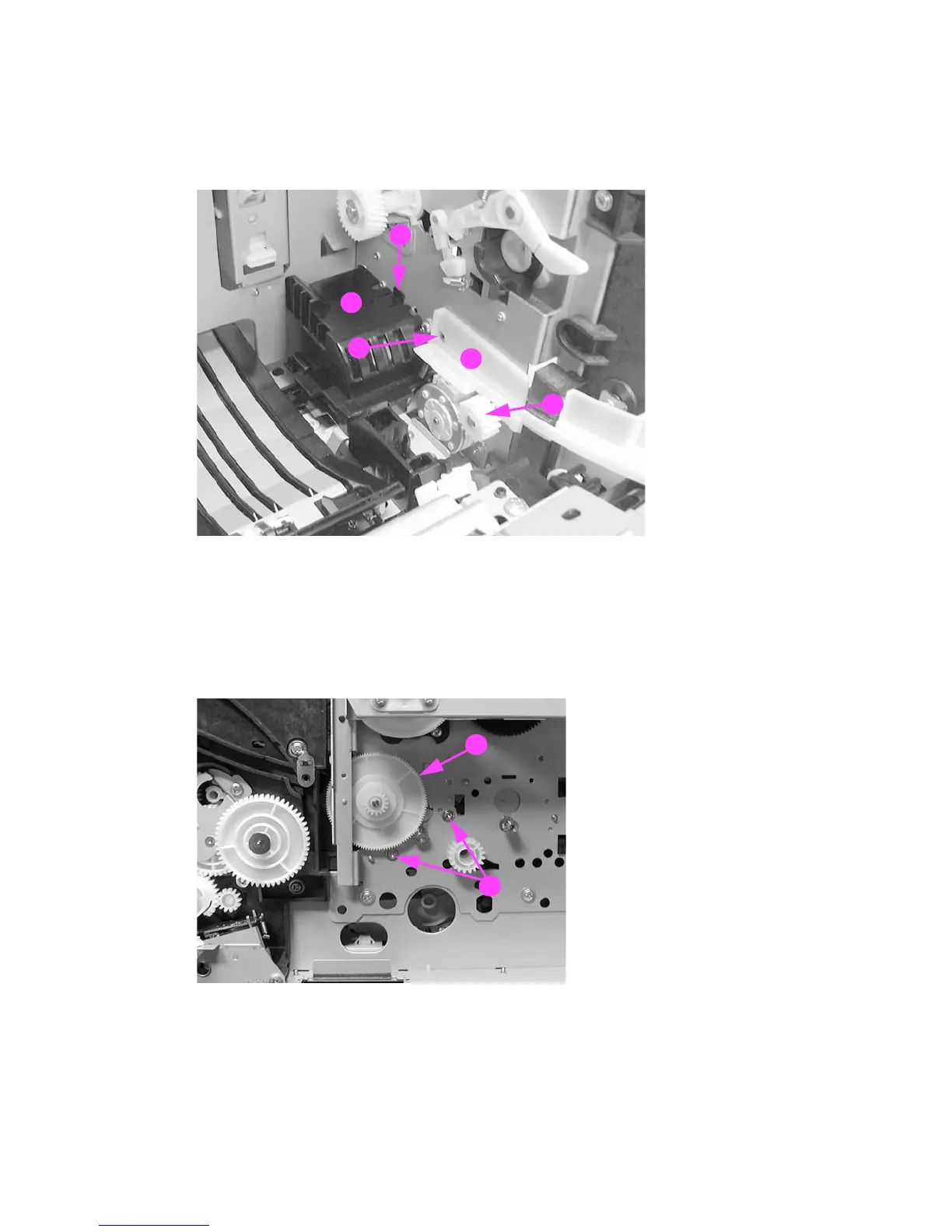

Figure 6-111 Primary transfer roller engaging motor removal (2 of 4)
8 Remove the gear (1) and then remove two screws that secure the motor.
Reassembly note: When reinstalling the gear (1), insert the gear with shaft that was
removed in the previous step (callout (3) in the figure above) from inside the printer,
through this gear.
Figure 6-112 Transfer roller engaging motor removal (3 of 4)
1
2
4
3
5
1
2
