272 Removal and replacement ENWW
DC controller PCB removal
Note When the DC controller PCB is replaced, in addition to replacing the PCB, a configuration procedure
must be performed. For information on this configuration, refer to Chapter 8, Replacement parts
configuration.
1 Remove the left cover. See Left cover removal.
2 Disconnect all cable connections (19 connectors for the HP Color LaserJet 3500 series printer
and 20 connectors for the HP Color LaserJet 3700 series printer).
3 Remove four screws (1) and remove the PCB (2).

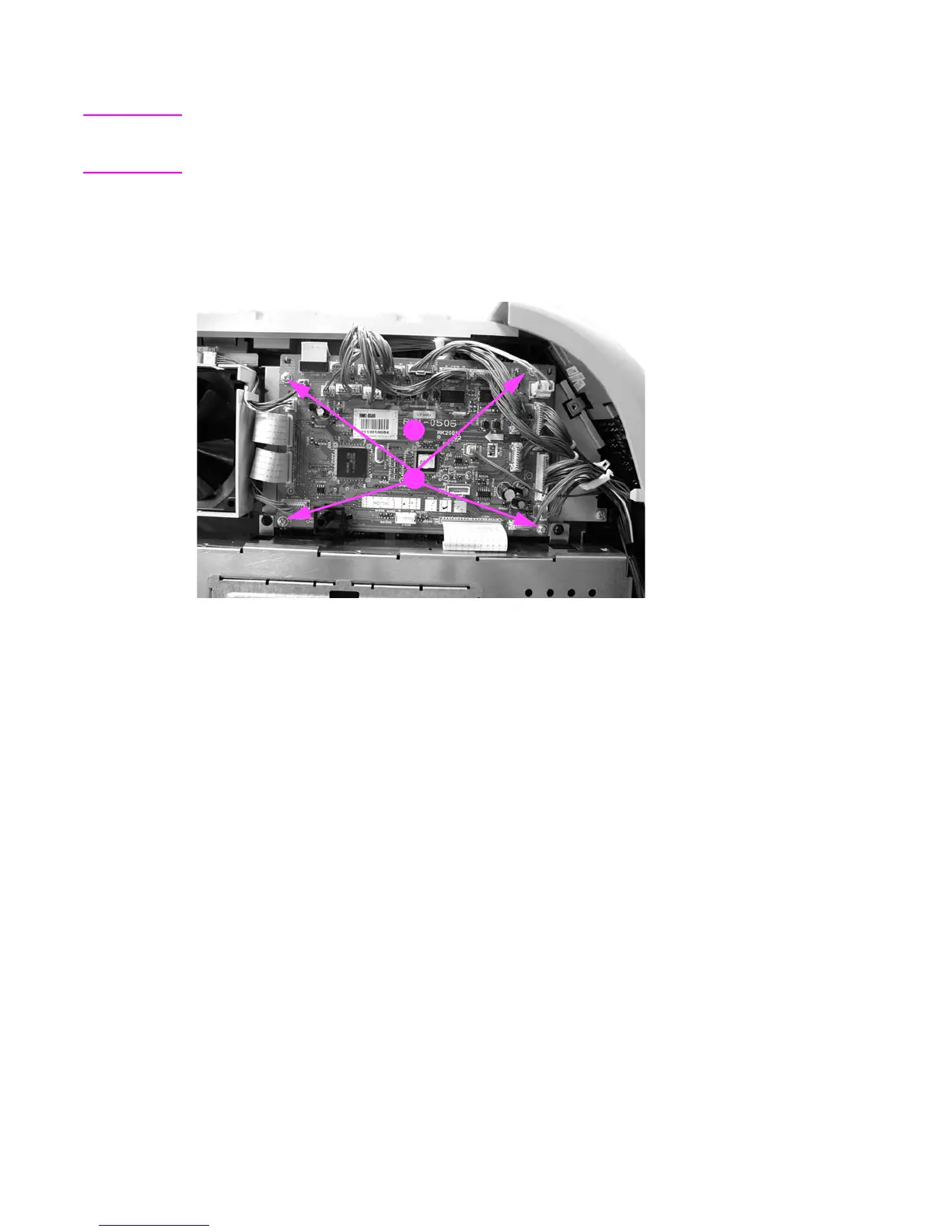

Figure 6-116 DC controller PCB removal
1
2
