ENWW Circuit Boards 273
Formatter PCB removal
The HP Color LaserJet 3500 series printer and the HP Color LaserJet 3700 series printer have
different formatter PCBs and formatter enclosures. The removal procedure for the PCB is different
as described below.
Note When the formatter PCB is replaced, in addition to replacing the PCB, a configuration procedure
must be performed. For information on this configuration, refer to Chapter 8, Replacement parts
configuration.
1 Remove the left front cover. See Left front cover removal.
2 For the HP Color LaserJet 3500 series printer, perform steps "a" and "b", below;
for the HP Color LaserJet 3700 series printer, perform steps "c" and "d", below:
a. Disconnect two connectors (1), remove five screws (2), and remove the formatter enclosure
cover (3).

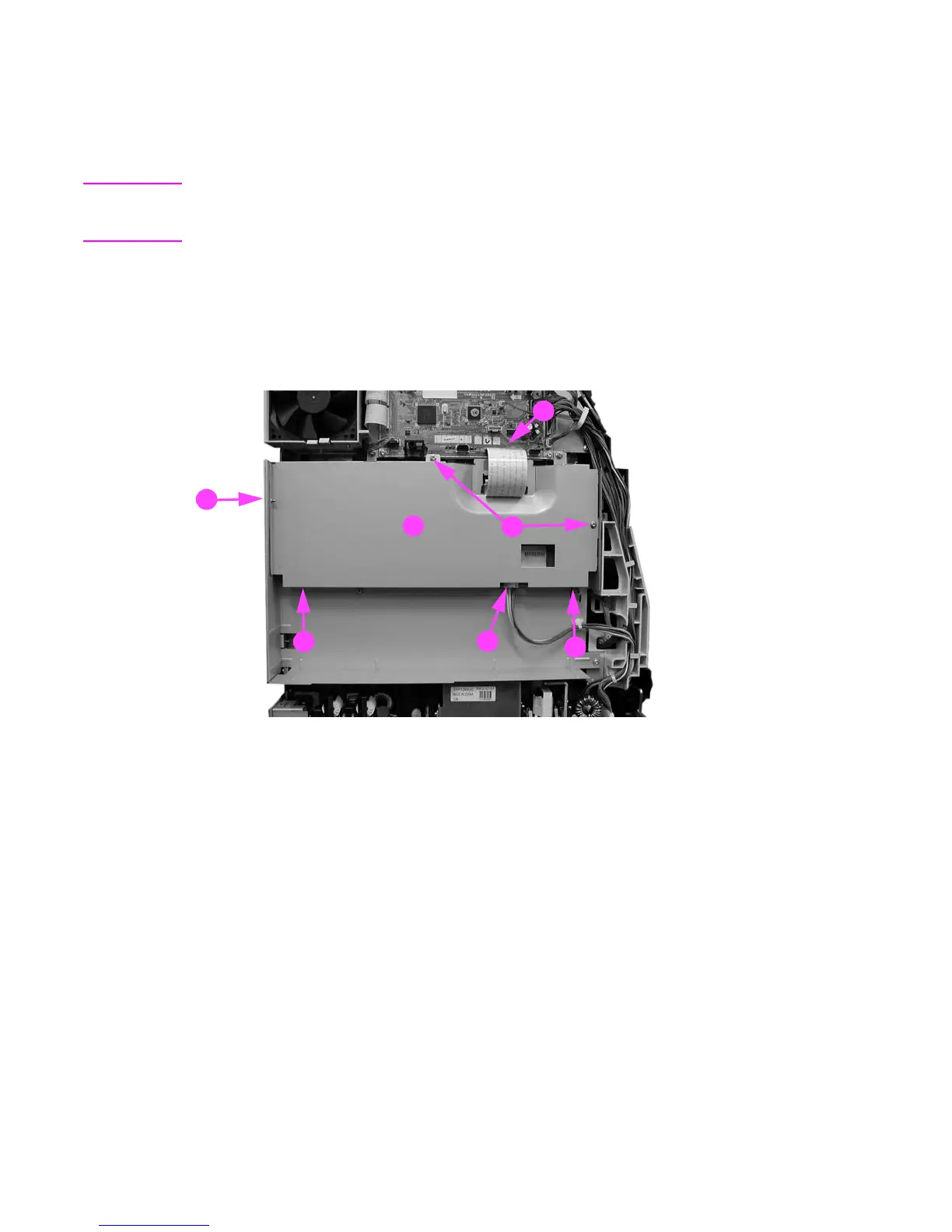

Figure 6-117 Formatter PCB (HP3500) removal (1 of 2)
1
1
2
3
2
2
2
