284 Removal and replacement ENWW
4 Unhook the cables from the left side cable guides (1) on the contact assembly.
5 Pull out on the top of the assembly while pressing in on two tabs (2). Once the top is released,
pull up slightly and outward to remove the developing contact assembly (3). As you remove
the assembly, unroute the grounding wire (4).
Reassembly note: When installing the developing contact assembly, install the tab at the
bottom of the assembly into the slot in the frame, then insert and latch the two tabs (2) at
the top.

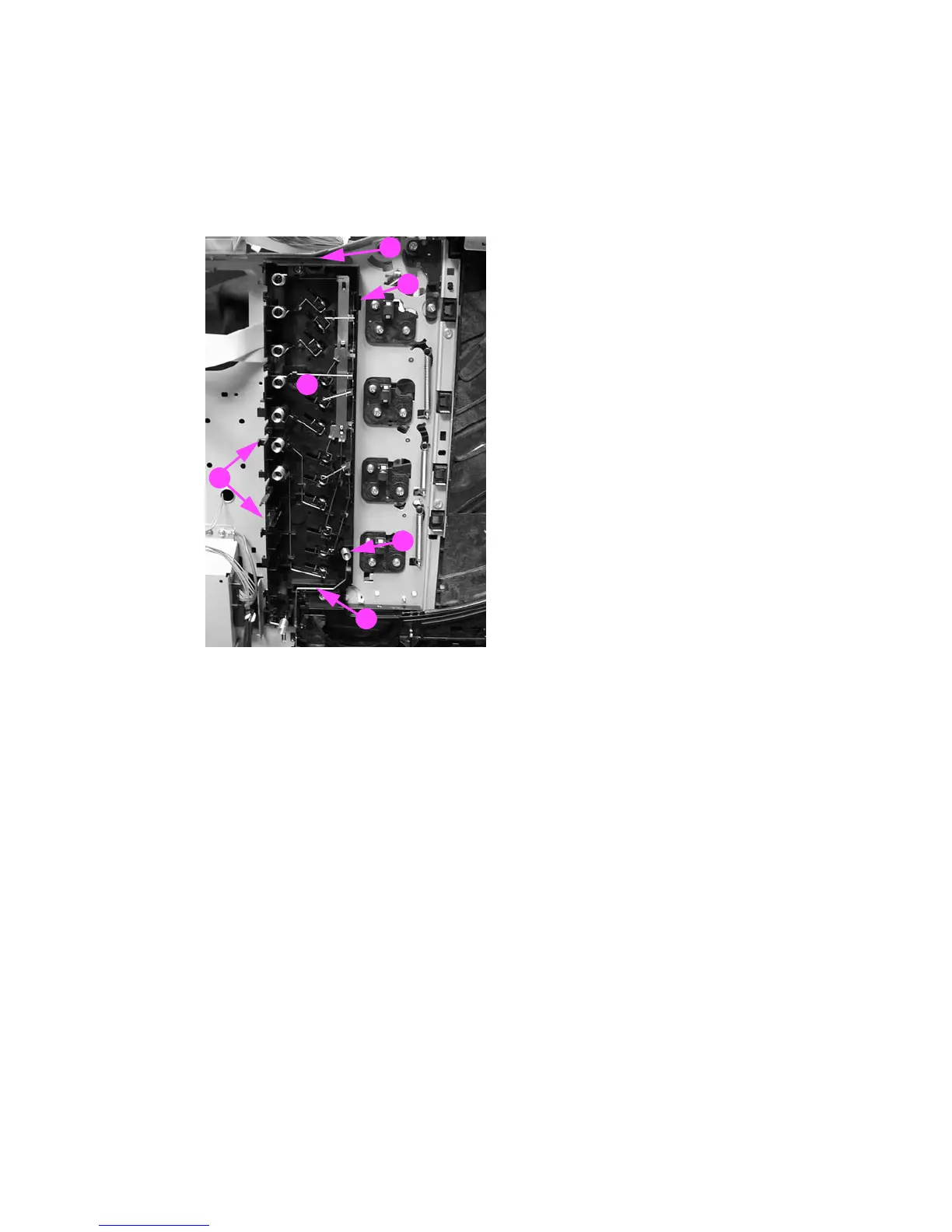

Figure 6-134 Developing contact assembly removal (3 of 3)
2
2
1
3
4
4
