Developing contact assembly
1 Remove the high-voltage power supply PCB. See High-voltage power supply PCB removal.
2 Remove three springs (1) from inside, located under the left swing guide. (The left swing guide
is not shown for illustration purposes only.) Remove these springs carefully; they are delicate
and can be easily damaged.

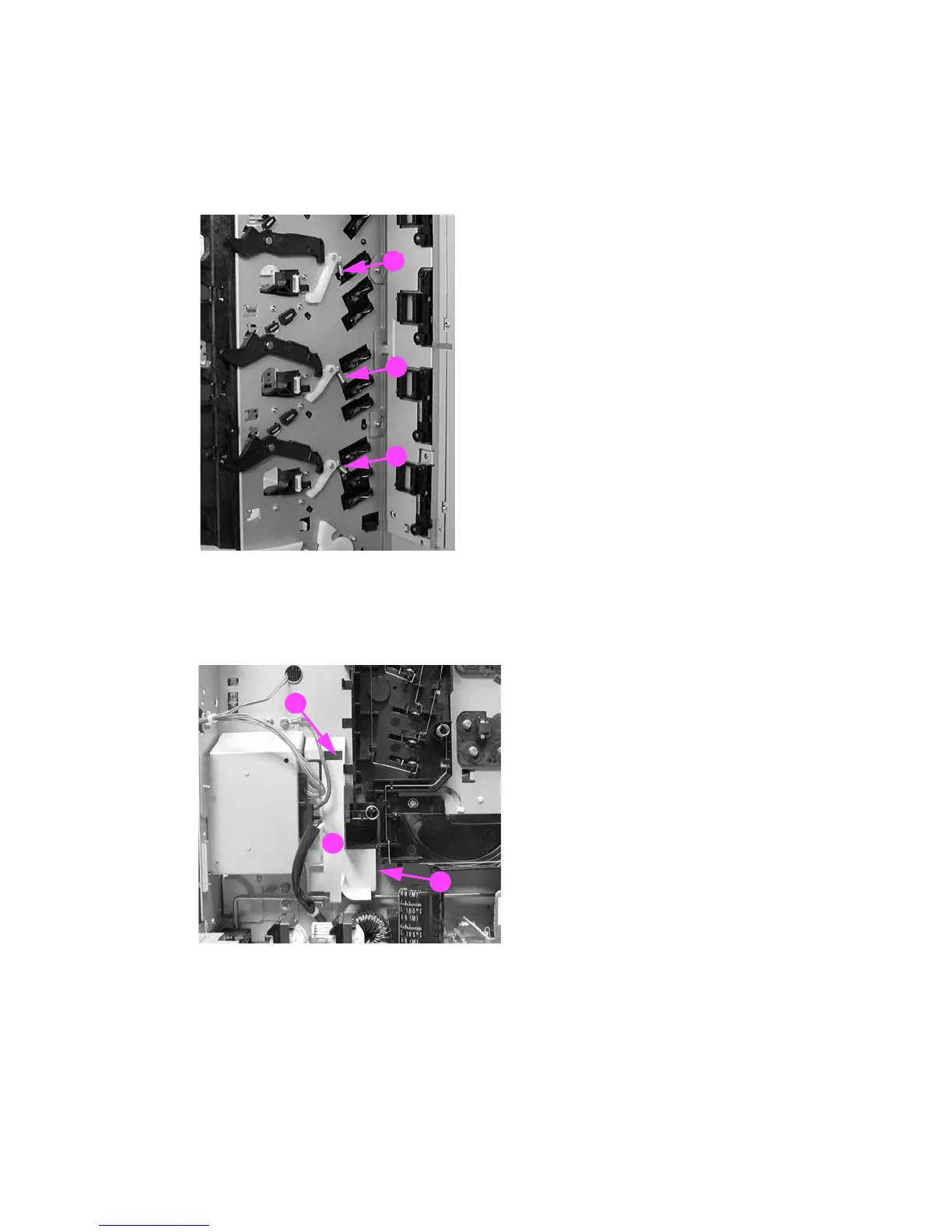

Figure 6-132 Developing contact assembly removal (1 of 3)
3 Remove the plastic cover (1) by pressing in on two tabs (2) and pulling the cover out of the
printer.
