282 Removal and replacement ENWW
Miscellaneous parts

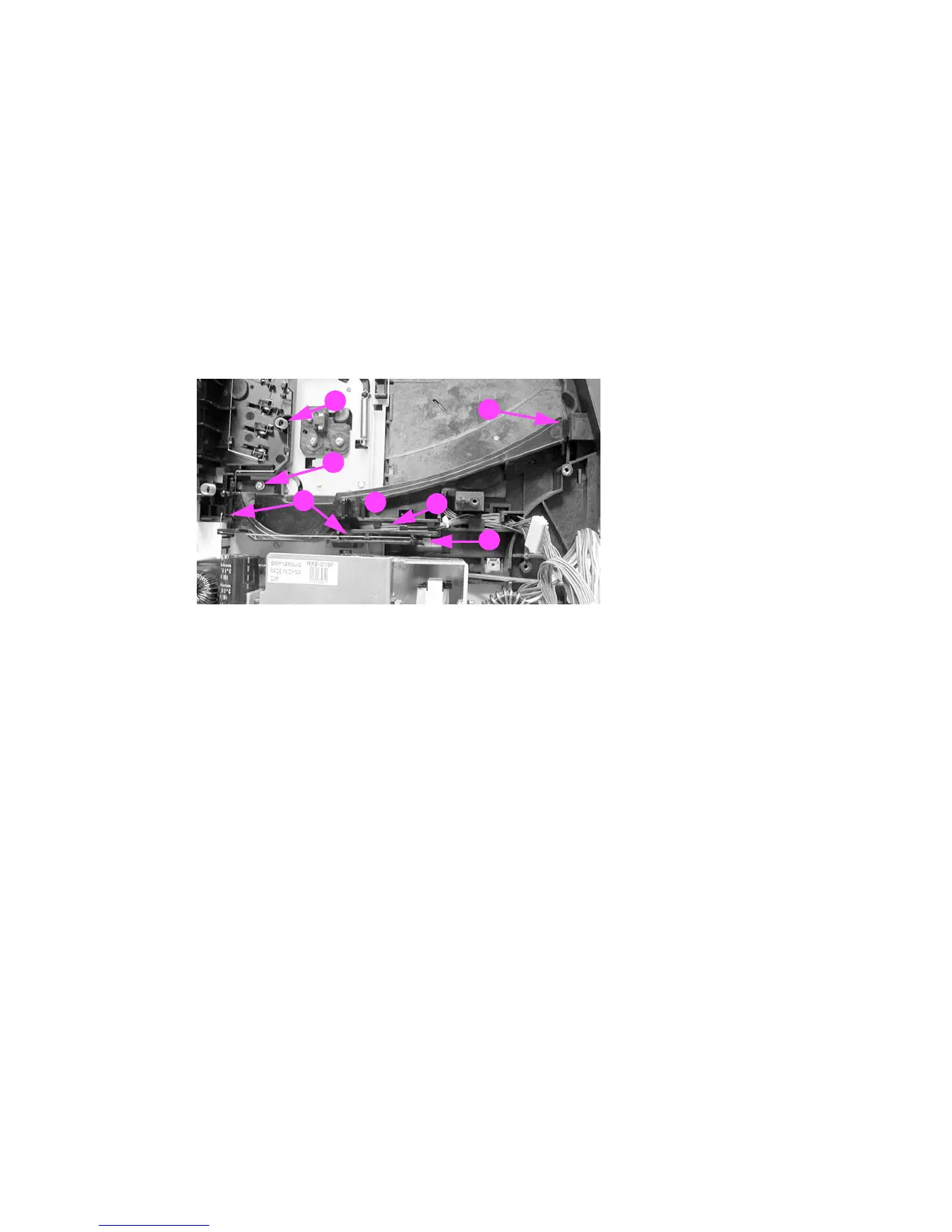

Swing rod guide, left removal
1 Remove the left swing guide. See Swing guide removal, left.
2 Remove the ground (1) wire from the guide. Use needle-nose pliers to pull the ground wire out
of the contact (2).
Reassembly note: Remember to reconnect the ground wire to the contact (2). Use
needle nose pliers to insert the wire back into the clip.
3 Remove the cables (3) from the guide.
4 Remove one screw (4) and pull the back end of the swing guide (5) out slightly. Then pull it to
the left to remove the front tab (6) from the slot in the front.
Swing rod/lock guide, right removal
To remove the right swing rod guide, refer to the Pick-up/feed assembly removal, steps 1 through
8.
Transfer contact assembly removal
To remove the transfer contact assembly, refer to Swing guide removal, left, steps 1 through 5.
1
4
1
5
3
2
6
