286 Removal and replacement ENWW

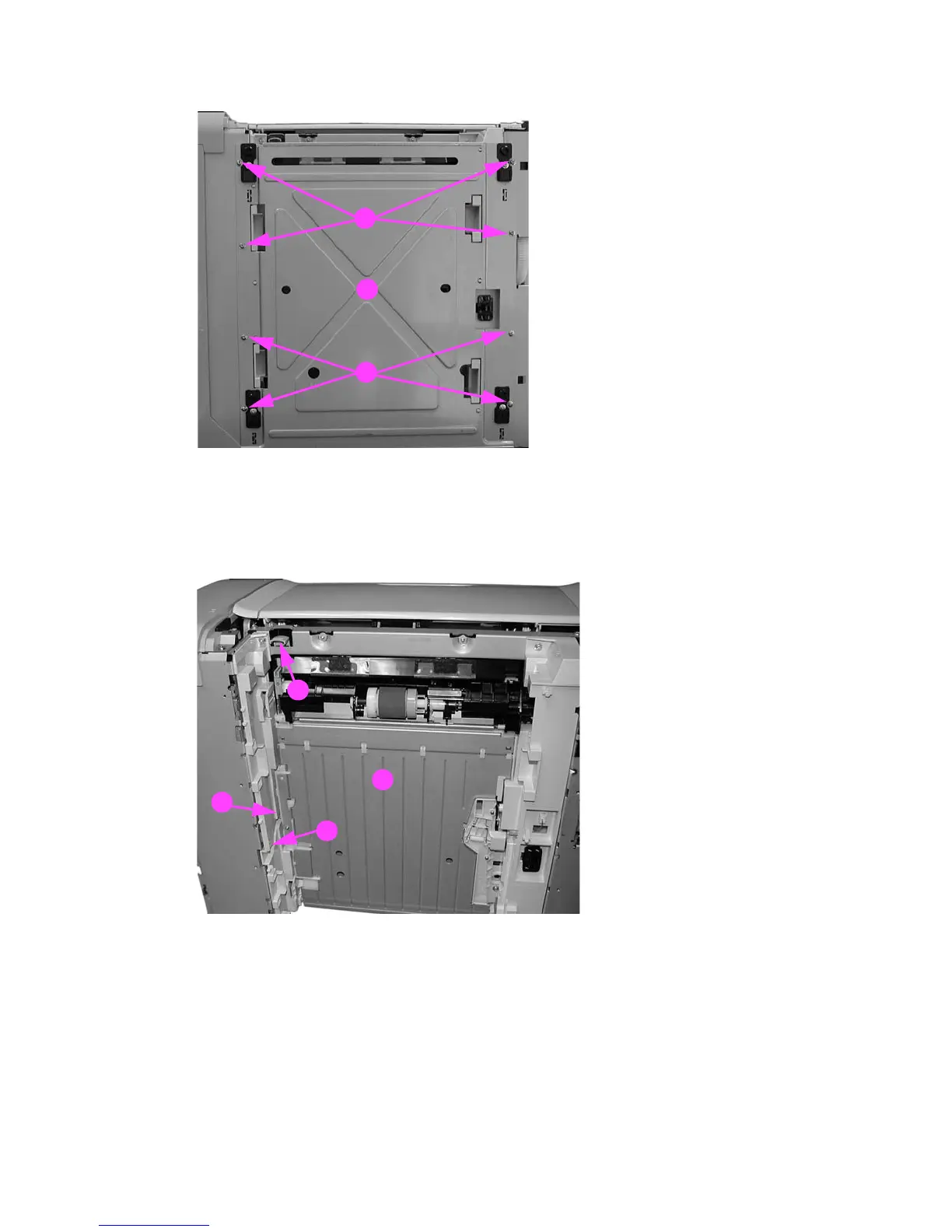

8 Remove eight screws (1) from the printer’s bottom plate (2) and remove the plate.
Figure 6-136 Right Tray 2 guide removal (2 of 6)
9 Release the duplex guide pan by lifting up on the release lever (1), then swing the pan (2)
down. Observe the grounding spring (3) while swinging the pan down. The spring should slide
out of the slot (4).
Figure 6-137 Right Tray 2 guide removal (3 of 6)
1
2
1
1
2
3
4
