ENWW Tray 2 (cassette) parts removal 287

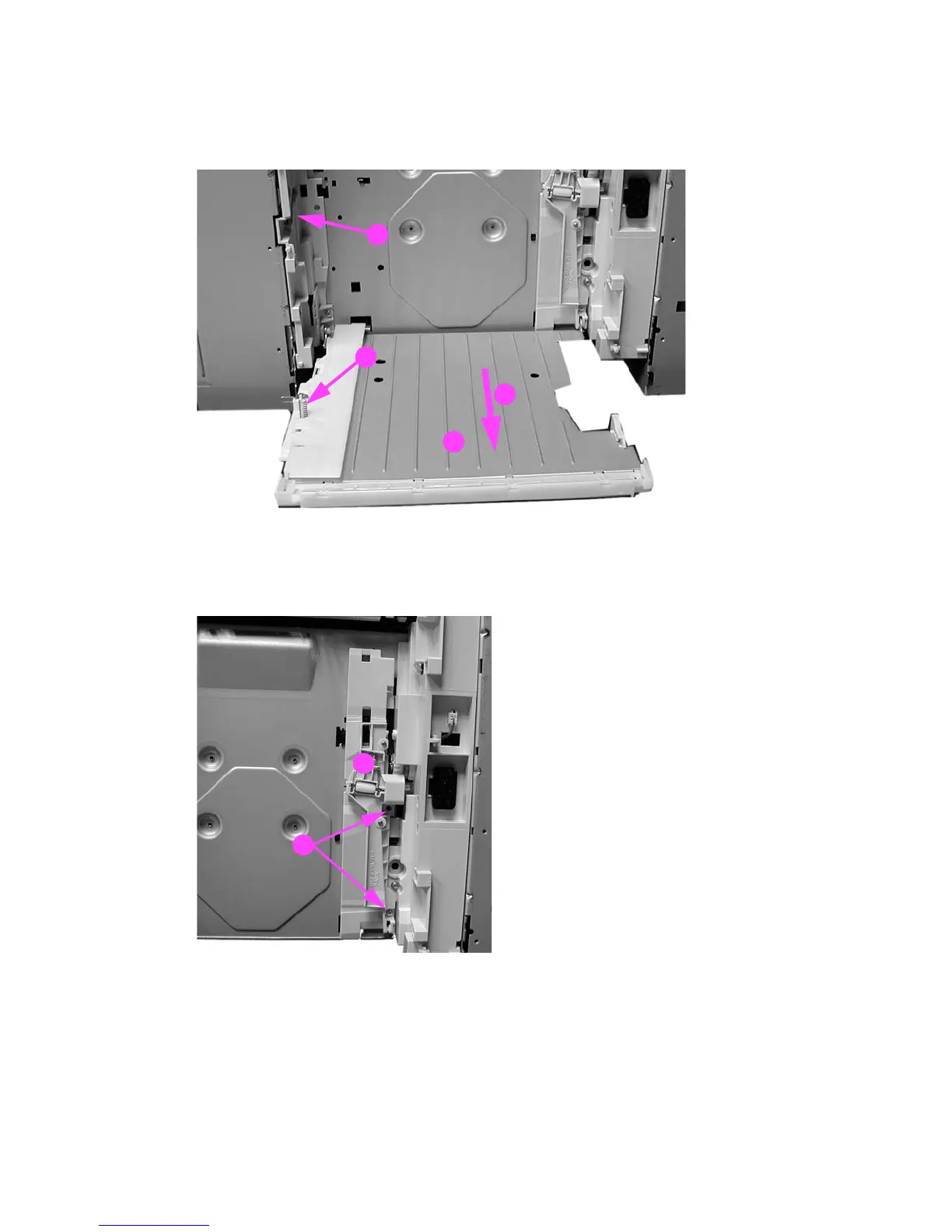

10 Lower the duplex guide pan (1) until it is perpendicular with the base of the printer and pull it
straight out (2) to remove it.
Reassembly note: Ensure that the grounding spring (3) on the left side is connected to
the contact (4).
Figure 6-138 Right Tray 2 guide removal (4 of 6)
11 Remove two screws (1) from the duplex position guide assembly (2) and remove it.
Figure 6-139 Right Tray 2 guide removal (5 of 6)
2
1
3
4
2
1
