288 Removal and replacement ENWW
12 Remove two screws (1) and remove the tray guide (2).
Figure 6-140 Right tray guide removal (6 of 6)
Cassette (Tray 2) guide, right, removal (HP3500)
1 Remove Tray 2.
2 Remove two screws (1) and remove the duplex guide (2) from the back of the printer.

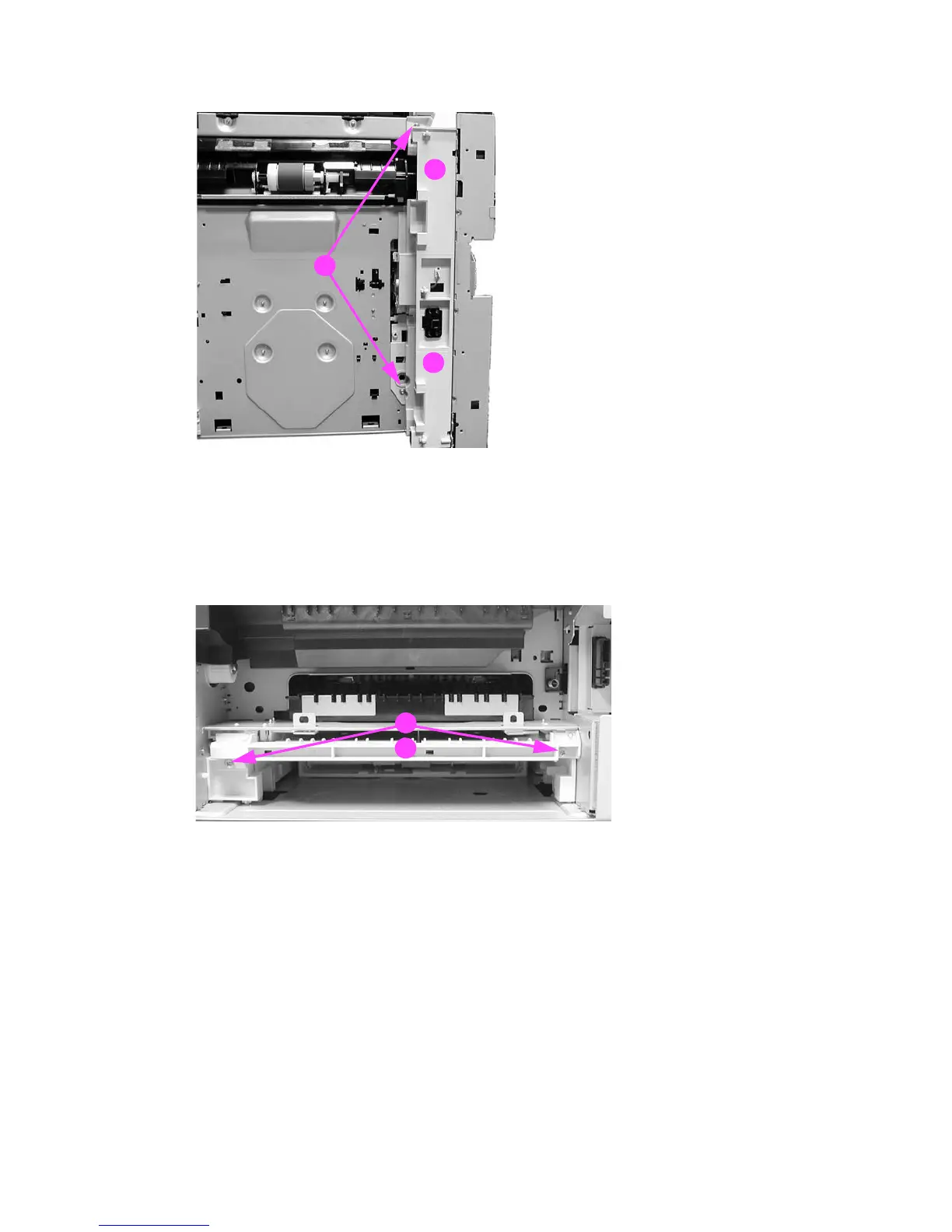

Figure 6-141 Right Tray 2 guide removal (1 of 3)
3 Turn the printer on its back.
1
2
2
1
2
